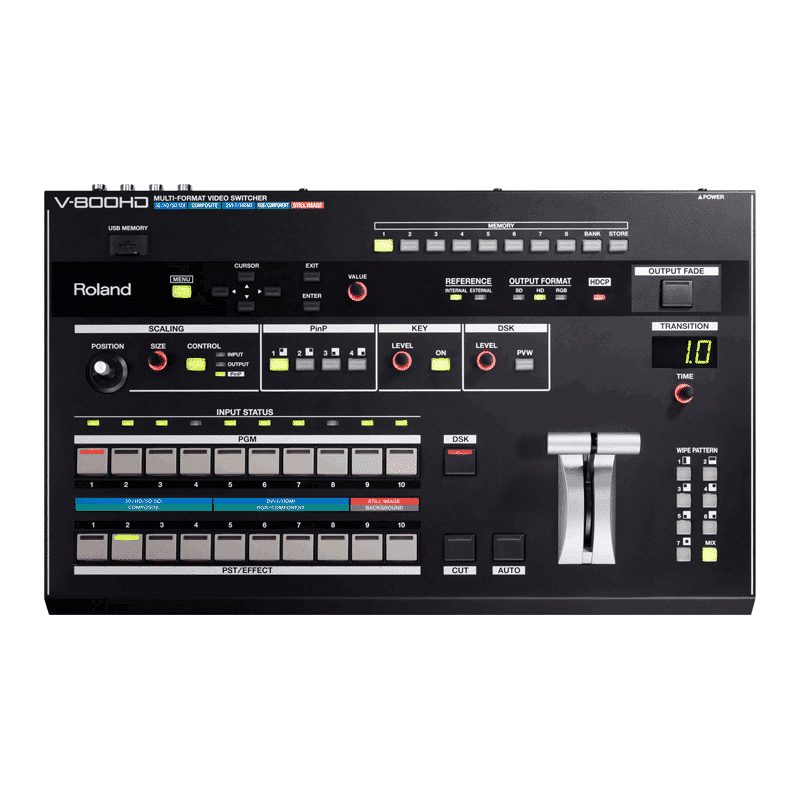

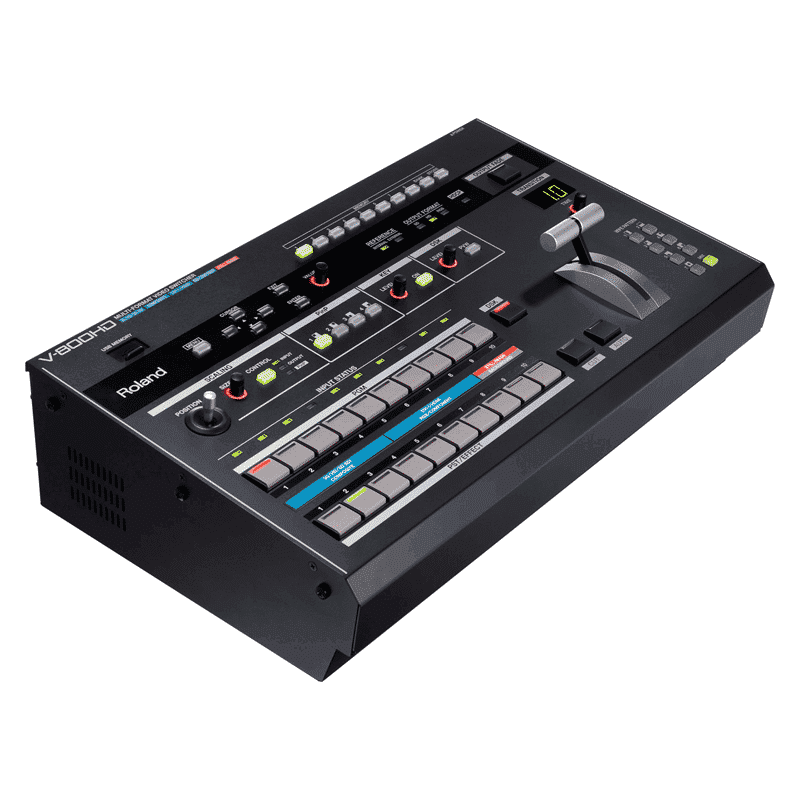

Roland V-800HD Multi-format Video Switcher with HDCP support

In stock

  • Built-in frame synchronizers and scalers on all inputs
  • SDI support: 3G, HD, and SD
  • DVI-D / RGB / HDMI support
  • Input status LEDs
  • HDCP support
SKU: V-800HD Category:

Roland V-800HD Multi-format Video Switcher

The Roland V-800HD is another powerful video switcher that gives you ultimate control of your video display. Being fully HDCP compatible, the V-800HD has a multi-viewer monitor feature with key compositing to adjust the chroma, phase range and HSV coupled with a keyer that supports CG titles and video effects. It has a total of 8 channels with 16 inputs; 4 Composite, 4 RGB/ Component, 4 SDI and 4 DVI-I/ HDMI. The Roland V-800HD also features 6 outputs consisting 2 DVI-I/ HDMI, 2 SDI, a RGB/ Component and one composite output. There is a dedicated composite output that sends an SD signal to a DVD recorder for streaming purposes.

It can handle video resolutions of up to 1080/60p with built in scalers and frame synchronizers on every input. Built in a 1 M/E (PinP) + DSK configuration, the Roland V-800HD is powered by a 4:4:4/10-bit internal processing unit. Other features include full HDCP support, SDI support and 10 assignable cross points that are useful when the display gets a black line after video switching.

4:4:4/10-bit Internal Processing

The Roland V800HD uses 4:4:4/10-bit internal signal processing. This lets you achieve compositing and output with no reduction in high-detail RGB signals driven from a computer. The result is a sharp, unblurred display of video and text, even on large screens and LED displays. The Roland V800HD delivers high image quality for all uses, from live broadcasts to event displays.

Full Range of Connectivity

The Roland V-800HD supports a large number of input formats, from analog to digital, with all the necessary connectors. The SDI connectors accommodate 3G, HD, and SD. The DVI-I connectors pull full duty for DVI-D, DVI-A and even HDMI using a simple HDMI/DVI adapter. The Mini D-Sub 15 pin type connector accommodates SD/HD component as well as computer input via RGB.

Stellar Image Quality at 1080p (3G-SDI)

Roland V800HD Supports 1080p video signals at bit rates as high as 3 Gbps — twice the rate of conventional HD. Asserts all the vividness of high-realism, high-detail camera and computer sources.

  • 8 Channel, 16 Input (4 SDI, 4 Composite, 4 DVI-I/HDMI, 4RGB/Component)
    6 Output (2 SDI + 2 DVI-D/HDMI + RGB/Component + Composite)
  • 4:4:4/10-bit Internal Processing
  • 1 M/E (Key, PinP) + DSK
  • Built-in frame synchronizers and scalers on all inputs
  • SDI support: 3G, HD, and SD
  • DVI-D / RGB / HDMI support
  • Input status LEDs
  • HDCP support
  • Live access to two still-image sources
  • 10 assignable cross-points
  • Multiviewer monitor output (Switch between Y/Cr/Cb and RGB modes)
VIDEO PROCESSING
Processing Y:Pb:Pr, 4:4:4, 10-bit
SUPPORTED FORMATS
Video 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p * The SDI input can input the same frame rate as a setup menu setting.
PC 640 x 480/60Hz *1, 800 x 600/60Hz *1 *3, 1024 x 768/60Hz *1, 1280 x 768/60Hz *1, 1280 x 1024/60Hz *1, 1366 x 768/60Hz *1, 1400 x 1050/60Hz *1, 1600 x 1200/60Hz, 1920×1080/60 Hz, 1920 x 1200/60Hz *2
* Conforms to VESA DMT Version 1.0 Revision 10
*1 Output refresh rate is 75 Hz when frame rate is set to 50 Hz
*2 Reduced blanking
*3 When Reference is set to External, the resolution of 800 x 600 and refresh rate of 60 Hz are no longer compliant with the VESA standard. This means that display on some devices may not be possible in this situation.
Still Image Windows® Bitmap File (.bmp) * Maximum 1920 x 1200 pixels, 24 bit per pixel, uncompressed
INPUT/OUTPUT LEVEL AND IMPEDANCE
Composite 1.0 Vp-p, 75 ohms
Analog HD/RGB 0.7 Vp-p, 75 ohms (H, V : 5 VTTL)
INPUT CONNECTORS
SDI (3G/HD/SD) BNC type x 4 * Conforms to SMPTE 424M (Level-A), 292M, 259M-C
DVI-I/HDMI DVI-I type x 4 * Select DVI-A or DVI-D/HDMI using menu per channel
Analog Video HD Component (Mini D-Sub 15 pin type) x 4 * Combined use with Analog RGB
Analog Video SD Composite (BNC type) x 4 * Select Composite or SDI using menu per channel
Analog RGB Mini D-Sub 15 pin type x 4 * Combined use with Analog HD (Component) * Select DVI-D/HDMI or Analog RGB using menu per channel
OUTPUT CONNECTORS
SDI (3G/HD/SD) BNC type x 2 * Conforms to SMPTE 424M (Level-A), 292M, 259M-C
DVI-D/HDMI DVI-D type x 2 HDMI x 1 (for multi-view monitor)
Analog Video HD Component (Mini D-Sub 15 pin type) x 4 * Combined use with Analog RGB
Analog Video SD Composite (BNC type) x 1
Analog RGB Mini D-Sub 15 pin type x 1 * Combined use with Analog HD (Component)
OTHER CONNECTORS
Tally Mini D-Sub 15 pin type x 2 * Input (max): 12V, 200 mA Open collector Type
Reference BNC type (IN, THRU) * Black Burst (Sync to frames), Bi-Level, Tri-Level
MIDI 5 pin DIN type (IN, OUT/THRU)
RS-232C D-Sub 9 pin type x 1
USB port (host) A type x 1 (for USB memory)
EFFECTS
Transition Cut, Mix, Wipe (9 patterns)
Composition PinP, DSK, Chroma Key, Luminance Key, External Key
Others Output Fade, Output Freeze
OTHERS
Power Supply AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
Power Consumption 75 W
SIZE AND WEIGHT
Width 482 mm
19 inches
Depth 274.6 mm
10-13/16 inches
Height 115.9 mm
4-10/16 inches
Weight 5.5 kg
12 lbs. 3 oz.
* When rack mount brackets are attached.
* EIA-6U rack mount size.
* This product is a Class A digital device under FCC part 15.
  • Power Cord
  • Rack Mount Angle (2)
  • Input Template
  • Owner’s Manual
