Description

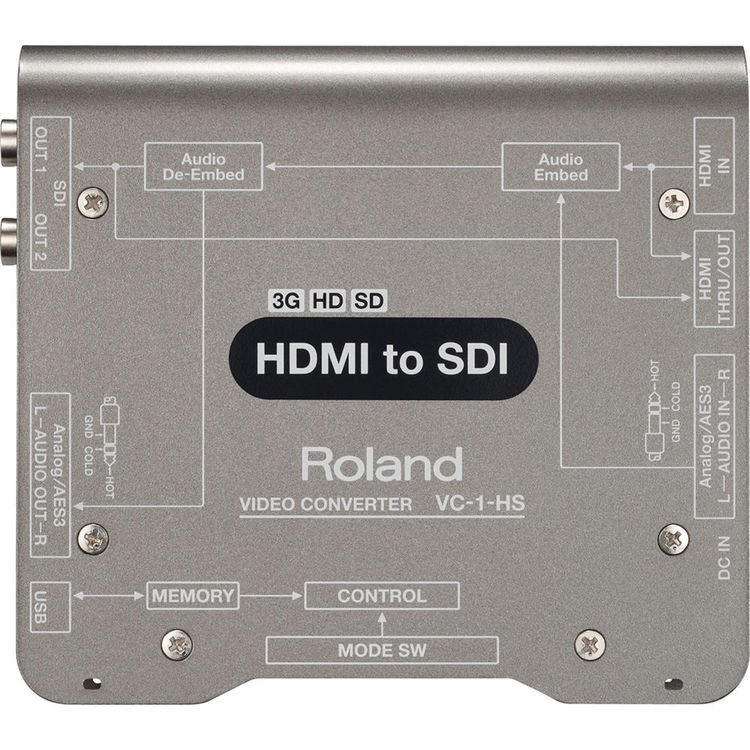

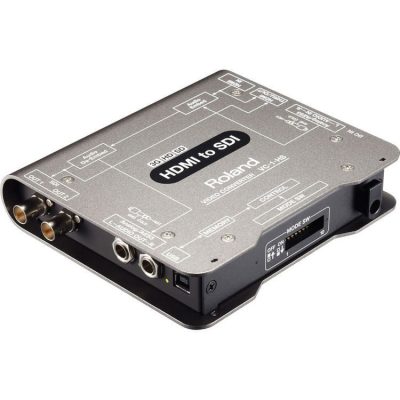

Roland VC-1-HS HDMI to SDI Video Converter

The Roland VC-1-HS Video Converter provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters.

The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The Roland VC-1-HS also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.

The Roland VC-1-HS is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.

Increasingly HDMI video cameras are being used for live production. The Roland VC-1-HS converts, extends and embeds audio from HDMI to SDI. This converter is especially complimentary to the Roland V-1600HD and V-800HD multi-format video mixers when you want to use SDI signals for camera inputs on the mixer.

Other Roland Product
V-60HD Multi-Format HD Video Switcher
VC-1-HS HDMI to SDI Video Converter
VR-4HD All-In-One HD AV Mixer
V-800HD MK II Multi-format Video Switcher
XS-1HD Multi-format Matrix Switcher
HT-RX01 HDBaseT Compatible Receiver
XS-82H 8-in x 2-out Multi-Format AV Matrix Switcher
HT-TX01 HDBaseT Compatible Transmitter
XS-83H 8-in x 3-out Multi-Format AV Matrix Switcher
V-1HD HD Video Switcher
XS-84H 8-in x 4-out Multi-Format AV Matrix Switcher
V-1SDI 3G-SDI Video Switcher
V-1200HD Multi-Format Video Switcher
V-40HD Multi-Format Live Video Switcher
V-1200HDR Control Surface for V-1200HD
V-4EX 4-Channel Digital Video Mixer
VC-1-DL Bi-directional SDI/HDMI Converter
VC-1-SC Up/Down/Cross Scan Converter
VC-1-SH SDI to HDMI Video Converter with HDCP Support
VR-50HD Multi-Format AV Mixer

Click to rate this post!

[Total: 0 Average: 0]

Specifications

Input

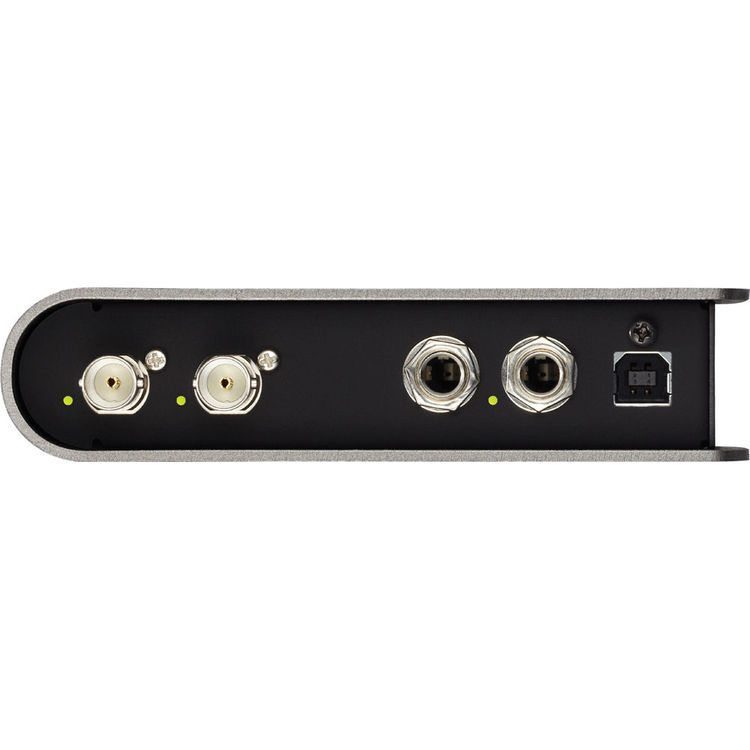

SDI Connector	BNC type x 1
Analog Audio Connector	1/4″ TRS phone type ( balanced ) x 1 pair (L/R)
Digital Audio Connector	1/4″ TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )
Output
SDI Connector	BNC type x 1 ( Thru/Out )

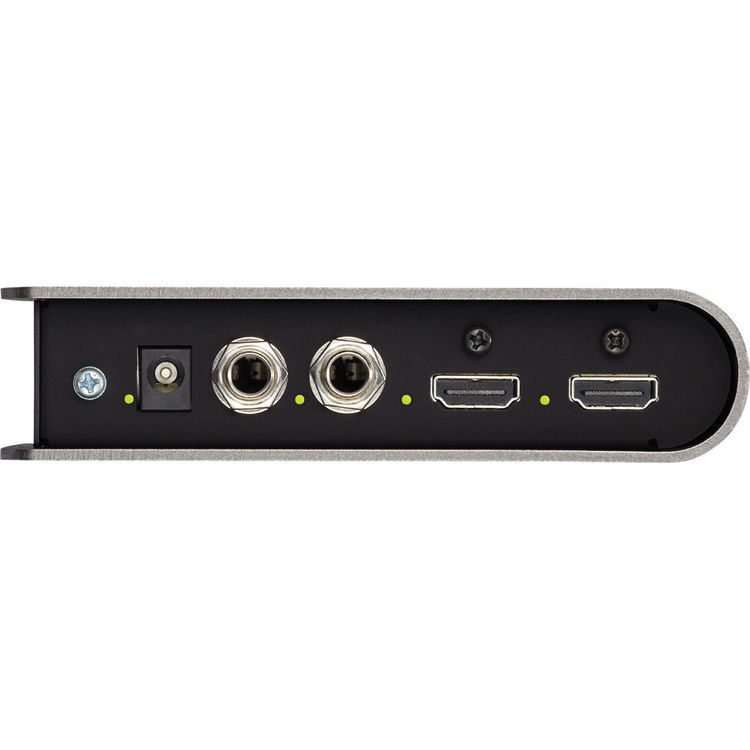

HDMI Connector	Type A (19 pins ) x 1
Analog Audio Connector	1/4″ TRS phone type ( balanced) x 1 pair (L/R)
Digital Audio Connector	1/4″ TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )
Input/Output Format
SDI Input Signal Standards	SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Input Video Format	1920×1080/ 60p/ 59.94p/ 50p/ 30p/ 29.97p/ 25p/24p /23.98p /60i /59.94i /50i (Conforms to SMPTE 274M ), 1280×720/60p /59.94p /50p/30p /29.97p /25p (Conforms to SMPTE 296M ), 720×487 /59.94i, 720×576 /50i (Conforms to ITU-R BT.601-5 )
Audio Format	Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Input Video Format	1920×1080/60p /59.94p/50p /30p/29.97p /25p/24p /23.98p /60i /59.94i/50i, 1280×720 /60p/59.94p /50p/30p /29.97p/25p, 720×480 /59.94i, 720×576 /50i (Conforms to CEA-861-E)
HDMI Input Audio Format	Linear PCM, 24 bit, 48 kHz, 8 ch
SDI Output Signal Standards	SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Output Video Format	1920×1080 /60p/59.94p /50p/30p /29.97p/25p /24p /23.98p/60i /59.94i/50i (Conforms to SMPTE 274M ), 1280×720 /60p /59.94p /50p /30p /29.97p /25p (Conforms to SMPTE 296M), 720×487 /59.94i, 720×576 /50i (Conforms to ITU-R BT.601-5 )
SDI Output Audio Format	Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Output Video Format	1920×1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280×720/60p/59.94p/50p/30p/29.97p/25p, 720×480/59.94i, 720×576/50i (Conforms to CEA-861-E)
HDMI Output Audio Format	Linear PCM, 24 bit, 48 kHz, 8 ch
Audio Input/Output
Analog Audio Input Level	4dBu
Analog Audio Maximum Input Level	24dBu
Analog Audio Input Impedance	110 ohms
Analog Audio Output Level	4dBu
Analog Audio Output Impedance	600 ohms
Digital Audio Output Signal Format	AES3, 16/24 bits, 32/48 kHz, 2 ch
Digital Audio Output Impedance	110 ohms
Others
USB Connector	USB Type B (Hi-Speed USB) x 1
Power Supply	DC 9V
Power Consumption	8W
Operation Temperature	0 to 40 degrees Celsius

Click to rate this post!

[Total: 0 Average: 0]

In The Box

AC adaptor
Power Cord
Rubber Foot x 4
Owner’s Manual
