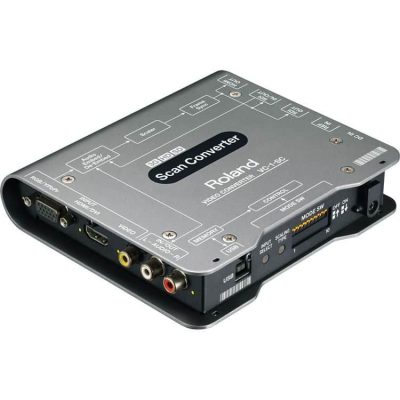

Name: Roland VC-1-SC Up/Down/Cross Scan Converter to/from SDI/HDMI
SKU: VC-1-SC
Price: 999.00 USD
Availability: InStock

Roland VC-1-SC Up/Down/Cross Scan Converter to/from SDI/HDMI

USD 999.00 excl. Tax

Features
• 3G (Level A&B) /HD/ SD SDI
• HDMI In/Out
• RGB/Component In
• Composite In
• HDCP Support

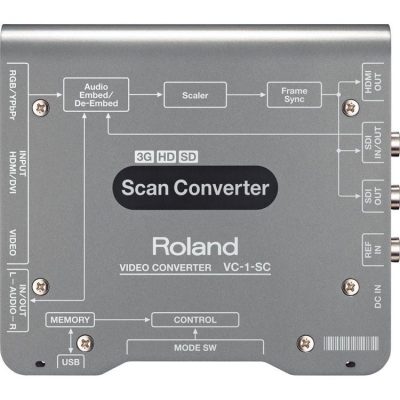

• Built-in Frame Synchronizer and Scaler
• Audio Embedding or De-Embedding
• VC-1 RCS, PC/MAC Control Application
• Up/Down/Cross, Frame Rate, I/P, and Aspect Ratio Conversion

Weight

1.3 kg

SKU: VC-1-SC Category: Mixer

The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The Roland VC-1-SC also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources. The Roland VC-1-SC also enables input from analog sources such as RGB and component along with built-in scaler.

The Roland VC-1-SC series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. Selectable audio embedding or de-embedding lets you route different audio sources to or from video devices.

Other Roland Product
V-60HD Multi-Format HD Video Switcher
VC-1-HS HDMI to SDI Video Converter
VR-4HD All-In-One HD AV Mixer
V-800HD MK II Multi-format Video Switcher
XS-1HD Multi-format Matrix Switcher
HT-RX01 HDBaseT Compatible Receiver
XS-82H 8-in x 2-out Multi-Format AV Matrix Switcher
HT-TX01 HDBaseT Compatible Transmitter
XS-83H 8-in x 3-out Multi-Format AV Matrix Switcher
V-1HD HD Video Switcher
XS-84H 8-in x 4-out Multi-Format AV Matrix Switcher
V-1SDI 3G-SDI Video Switcher
V-1200HD Multi-Format Video Switcher
V-40HD Multi-Format Live Video Switcher
V-1200HDR Control Surface for V-1200HD
V-4EX 4-Channel Digital Video Mixer
VC-1-DL Bi-directional SDI/HDMI Converter
VC-1-SC Up/Down/Cross Scan Converter
VC-1-SH SDI to HDMI Video Converter with HDCP Support
VR-50HD Multi-Format AV Mixer

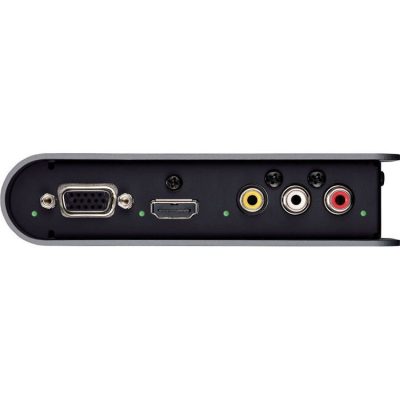

Input
SDI	Connector: BNC type x 1 (Combined use with SDI Out Connector) Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
HDMI	Connector: Type A (19 pins) x 1 Signal Standard: HDMI HDCP support (When an HDCP-applied signal is input, output from the SDI OUT connector is stopped)
RGB/Component	Connector: HD DB-15 type x 1 Signal Level: 1.0Vp-p (Y signal), 0.7Vp-p (R/G/B/Pb/Pr signals), 5VTTL (H/V signals) Impedance: 75 ohms
Composite	Connector: BNC type x 1 Signal Level: 1.0 Vp-p (Y signal), 0.286 V-p (C signal (NTSC)), 0.3 V-p (C signal (PAL)) Impedance: 75 ohms
Analog Audio	Connector: RCA phono type x 1 pair (L/R) (Combined use with Analog Audio Out Connector) Input Level: -6dBV Maximum Input Level: 6dBV Impedance: 22 k ohms
Reference	Connector: BNC type x 1 Impedance: 75 ohms Signal Format: Black Burst, Bi-level, Tri-level
Output

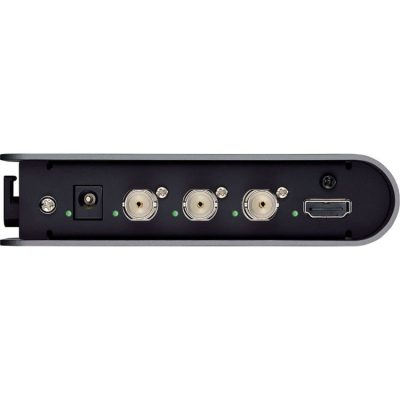

SDI	Connector: BNC type x 2 (One is Combined with SDI In Connector) Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
HDMI	Connector: Type A (19 pins) x 1 Signal Standards: HDMI HDCP support
Analog Audio	Connector: RCA phono type x 1 pair (L/R) (Combined use with Analog Audio In Connector) Input Level: -6dBV Maximum Output Level: 6dBV Impedance: 2.2 k ohms
Input/Output Format
SDI	Connector: BNC type x 1 (Combined use with SDI Out Connector) Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C Video Formats: 1920×1080 /60p /59.94p /50p /30p /29.97p /25p /24p /23.98p /60i /59.94i /50i 1920×1080 /30PsF /29.97PsF /25PsF /24PsF /23.98PsF (Conforms to SMPTE 274M) 1280×720 /60p /59.94p /50p /30p /29.97p /25p /24p /23.98p (Conforms to SMPTE 296M) 720×480 /59.94i, 720×576 /50i (Conforms to ITU-R BT.601-5) Color Format: 10 bits YCC 4:2:2 Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C) *When frame synchronizer is engaged, CH 3-8 of HDMI and CH 3-16 of SDI audio output are not available.
HDMI	Video Formats: 1920×1080 /60p /59.94p /50p /30p /29.97p /25p /24p /23.98p /60i /59.94i /50i 1280×720 /60p /59.94p /50p /30p /29.97p /25p /24p /23.98p 720×480 /59.94p /59.94i, 720×576 /50p /50i (Conforms to CEA-861-E) PC Formats: 640×480 /60/72/75 /85Hz, 800×600 /56/60/72 /75/85Hz, 1024×768 /60/70 /75/85Hz, 1280×768 /60 /75 /85/Hz, 1360×768 /60Hz, 1152×864 /75Hz, 1400×900 /60/75 /85Hz, 1280×960 /60/85Hz, 1280×1024 /60/75 /85Hz, 1400×1050 /60/75Hz, 1680×1050 /60Hz, 1600×1200 /60Hz, 1920×1200 /60Hz Reduced blanking (Conforms to VESA DMT Version 1.0 Revision 11) Color Format: 10 bits YCC 4:2:2, 8 bits YCC 4:4:4, 8 bits RGB 4:4:4 Audio Format: Linear PCM, 24 bits, 48 kHz, 8 ch
RGB/Component	Video Formats: 1920×1080 /60p/59.94p /50p/60i /59.94i /50i/24PsF /23.98PsF (Conforms to SMPTE 274M) 1280×720 /60p/59.94p /50p (Conforms to SMPTE 296M) 720×480 /59.94p /59.94i, 720×576 /50p/50i PC Formats: 640×480 /60/72 /75/85Hz, 800×600 /56/60 /72/75 /85Hz, 1024×768 /60/70 /75/85Hz, 1280×720 /60Hz, 1280×768 /60/75 /85/Hz, 1360×768 /60Hz, 1152×864 /75Hz, 1400×900 /60/75 /85Hz, 1280×960 /60/85Hz, 1280×1024 /60/75/85Hz, 1400×1050 /60/75Hz, 1680×1050 /60Hz, 1600×1200 /60Hz, 1920×1080 /60Hz, 1920×1200 /60Hz Reduced blanking (Conforms to VESA DMT Version 1.0 Revision 11)
Composite	Video Formats: NTSC, PAL
Processing
Audio Embed/De-embed	2ch
Frame Synchronizer	Frame sync is activated when a reference signal is detected. When frame synchronizer is engaged, CH 3-8 of HDMI and CH 3-16 of SDI audio output are not available.
Resolution Conversion	Selectable Full/LetterBox/Crop/Dot-by-Dot Type
Frame Rate Conversion	Frame Skip/Repeat Type
Others

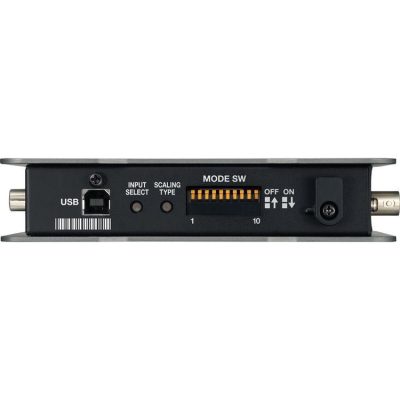

USB Connector	USB Type B (Hi-Speed USB) x 1
Power Supply	DC 9V
Operation Temperature	0 to 40 degrees Celsius
