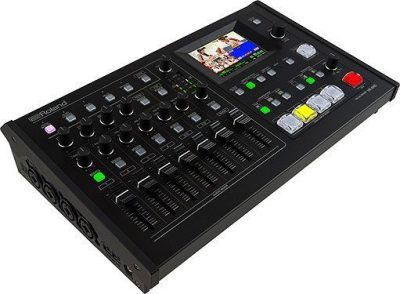

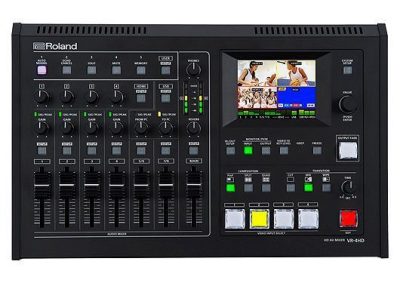

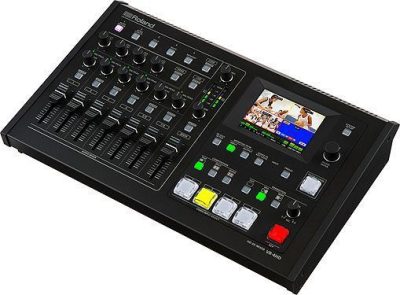

Roland VR-4HD All-In-One HD AV Mixer

The Roland VR-4HD features professional quality broadcast controls and switches ensuring more accurate and faster operation than interfaces based on a computer style mouse and keyboard. The ability to simultaneously switch video with the push of a button and adjust audio with the push of a fader is invaluable and puts all essential features at the operator?s fingertips.

The built-in multi-view screen is also a touch screen interface for accessing set-up parameters, making it extremely easy to adjust picture-in-picture settings by dragging the inset window onto the screen.

COMPOSITING EFFECTS

It includes DSK (Downstream Keying), Picture-in-Picture (PinP), Split and Quad composting effects ideal for creating news style broadcasts and corporate presentation content.

The DSK function is great for overlaying titles, song lyrics or logos onto incoming video sources that can be switched in the background while text or images remain displayed.The DSK supports both Luminance Keying (Black / White) and Chroma Keying (Blue / Green) for compositing two videos in one screen using Picture-in-Picture, or for using the split function – ideal for seminars and presentations.

GREAT VIDEO NEEDS GREAT AUDIO

Achieving great sounding audio for video productions is easy with the Roland VR-4HD which features Roland?s award winning digital signal processing and advanced features including auto-mixing, echo cancel and delay for perfect lip-sync between audio and video.

The VR-4HD?s audio mixer can mix the four XLR microphone inputs, stereo RCA and 1/8 mini connector along with the audio embedded in the four HDMI inputs. The final mix can be output via XLR, RCA and also embedded into the HDMI ouput.

USB 3.0 FOR RECORDING AND STREAMING

Recording or webcasting from the VR-4HD is easily achieved by connecting to a PC or Mac using the built-in USB 3.0 connection. Up to Full 1080p uncompressed resolution can be output from the VR-4HD. The VR-4HD embeds the audio mix with the video program and delivers at the selected resolution.

The free VR Video Capture application for Mac and PC provides an easy and effective way to capture uncompressed video with high resolution audio. The VR Video Capture application can also capture compressed video for easy and immediate delivery of content to online video sites or internal corporate servers.

REMOTE CONTROL

The VR-4HD RCS software is designed to control the VR-4HD using a computer. By connecting the VR-4HD to your computer via USB, you will be able to copy settings (backup) or update the system software of the VR-4HD in addition to remote controlling the unit from your computer.

The VR-4HD can be operated remotely from a computer, touch panel, or other external control device through RS-232C. The VR-4HD is equipped with a D-Sub 9-pin TALLY/GPIO connector. In addition to tally input/output functions, this provides functionality for control signal input and output, and you can use it to transmit and receive

Other Roland Product
V-60HD Multi-Format HD Video Switcher
VC-1-HS HDMI to SDI Video Converter
VR-4HD All-In-One HD AV Mixer
V-800HD MK II Multi-format Video Switcher
XS-1HD Multi-format Matrix Switcher
HT-RX01 HDBaseT Compatible Receiver
XS-82H 8-in x 2-out Multi-Format AV Matrix Switcher
HT-TX01 HDBaseT Compatible Transmitter
XS-83H 8-in x 3-out Multi-Format AV Matrix Switcher
V-1HD HD Video Switcher
XS-84H 8-in x 4-out Multi-Format AV Matrix Switcher
V-1SDI 3G-SDI Video Switcher
V-1200HD Multi-Format Video Switcher
V-40HD Multi-Format Live Video Switcher
V-1200HDR Control Surface for V-1200HD
V-4EX 4-Channel Digital Video Mixer
VC-1-DL Bi-directional SDI/HDMI Converter
VC-1-SC Up/Down/Cross Scan Converter
VC-1-SH SDI to HDMI Video Converter with HDCP Support
VR-50HD Multi-Format AV Mixer

Features

All-in-one portable production solution
Easy to use with dedicated hardware controls and audio faders and integrated touch screen preview monitor
6 input, 4-Channel Video Switcher
Supports HDMI*1, RGB/Component, and Composite Video Inputs Up to 1080p
Input 4’s scaler now supports a wider range of video and VESA resolutions.*1 *2
Built-in Scaler via CH4
Automatic switching modes [Ver.2.0]
18-Channel Digital Audio Mixer with XLR, TRS, and RCA jacks along with audio from HDMI inputs
Embedding and de-embedding of audio with delay settings
Auto mixing and Echo Canceling function
Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
Capturing a still Image from Input Video on channel 4*3 [Ver.1.5]
Built-in touch quad-input multi-viewer with audio metering
External Multi-View Output through HDMI
HDCP Support
USB3.0 Video/Audio Output up to 1080/30p (uncompressed) and Audio Loopback Feature
Software control using VR-4HD RCS application for Mac and PC and remote control via USB connection
Sending a still image to the VR-4HD by VR-4HD RCS*3 [Ver.1.5]
Tally, GPIO connections

*1 HDCP Compliant

*2 Built-in EDID Emulator

*3 The Still-image data is deleted once the power is turned off.

Specifications

AUDIO
VIDEO
Processing	4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors	INPUT 1-3: HDMI Type A (19 pins) x 3 * HDCP Supported INPUT 4: HDMI Type A (19 pins) x 1 * HDCP Supported RGB/COMPONENT (Mini D-sub 15-pin type) x 1 COMPOSITE (RCA phono type) x 1 * INPUT 4: HDMI , RGB/COMPONENT or COMPOSITE selected.
Output Connectors	MAIN OUT: HDMI Type A (19 pins) x 1 * HDCP Supported RGB/COMPONENT (Mini D-sub 15-pin type) x 1 PREVIEW OUT: HDMI Type A (19 pins) x 1 * HDCP Supported USB3.0: USB B type x 1
Input formats	HDMI INPUT 1-3: 720/59.94p, 720/50p (SYSTEM FORMAT: 720p) 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p (SYSTEM FORMAT: 1080i, 1080p) INPUT 4: HDMI, RGB/COMPONENT: 480/59.94i, 576/50i, 480/59.94p, 576/50p 720/59.94p, 720/50p, 1080/59.94i, 1080/50i 1080/59.94p, 1080/50p VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz) WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz) FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz) UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz) COMPOSITE: 480/59.94i, 576/50i * The refresh rate is the maximum value of each resolution. * Conforms to VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60 Hz: Reduced blanking * The input interlaced video signal is converted to progressive video signal by internal processing. * The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
Output formats	MAIN OUT (HDMI, RGB/COMPONENT): 480/59.94i, 576/50i, 480/59.94p, 576/50p 720/59.94p, 720/50p, 1080/59.94i, 1080/50i 1080/59.94p, 1080/50p VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz) WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz) FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz) UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz) PREVIEW OUT: 720/59.94p, 720/50p (SYSTEM FORMAT: 720p) 1080/59.94i, 1080/50i (SYSTEM FORMAT: 1080i) 1080/59.94p, 1080/50p (SYSTEM FORMAT: 1080p) USB3.0: 720/29.97p, 720/25p (SYSTEM FORMAT: 720p) 1080/29.97p, 1080/25p (SYSTEM FORMAT: 1080i, 1080p) * The MAIN OUTPUT format of HDMI and RGB/COMPONENT is always the same. When an interlaced format is selected, component signal is output from the RGB/COMPONENT connector. When a non-interlaced format is selected, RGB signal is output from the RGB/COMPONENT connector. * The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
Video Effects	Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types) Effects: NEGATIVE, EMBOSS, COLORIZE, COLORPASS, POSTERIZE, SILHOUETTE, MONOCOLOR, FINDEDGE (8 types) Composition: PinP, SPLIT, QUAD, KEY (Luminance Key, Chroma Key)
Audio Processing	Sampling rate: 24 bits/48 kHz
Audio formats	HDMI: Linear PCM, 24 bits/48 kHz, 2 ch USB: Linear PCM, 16 bits/48 kHz, 2 ch
Input Connectors	AUDIO IN 1-4 (XLR/TRS combo type, phantom power) AUDIO IN 5-6 (RCA phono type) AUDIO IN 7/8 (Stereo miniature type) USB B type (stereo)
Phantom Power	DC 48 V (unloaded maximum), 10 mA (maximum load) * Current value per channel
Output Connectors	AUDIO OUT: L, R (XLR type) L, R (RCA phono type) AUX OUT: L, R (RCA phono type) USB: USB B type (stereo) PHONES: Stereo miniature type
Signal Level and Impedance	XLR/TRS combo type Input Signal Level : -60–+4 dBu (Maximum: +22 dBu) Input Impedance : 10 k ohms (GAIN 0–23 dB), 5 k ohms (GAIN 24–64 dB) RCA phono type Input Signal Level : -10 dBu (Maximum: +8 dBu) Input Impedance : 15 k ohms Output Signal Level : -10 dBu (Maximum: +8 dBu) Output Impedance : 1 k ohm XLR type Output Signal Level : +4 dBu (Maximum: +22 dBu) Output Impedance : 600 ohms Miniature type Input Signal Level : -15 dBu (Maximum: +3 dBu) Input Impedance : 15 k ohms Headphones Output Signal Level : 75 mW + 75 mW Output Impedance : 32 ohms
Audio Effects	Auto Mixing, Echo Cancel, EQ, Delay, Compressor, HPF, Gate, Reverb, Multi-Band Compressor, Limiter
OTHERS
Other Connectors	RS-232: D-sub 9-pin type Tally/GPIO: Mini D-sub 15-pin type USB 3.0/2.0 (device): USB B type, USB-VIDEO (Super-Speed), USB-AUDIO 2 IN/2 OUT (Full-Speed), remote control from PC
Display	Graphic Color LCD, 320 x 240 dots, touch panel
Other Functions	MEMORY (8 types) FREEZE (input video captured) OUTPUT FADE (Audio, Video: WHITE or BLACK)
Power Supply	AC Adaptor
Current Draw	3 A
Power Consumption	36 W
Operation Temperature	+0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit
Dimensions	339 (W) x 217 (D) x 87 (H) mm 13-3/8 (W) x 8-9/16 (D) x 3-7/16 (H) inches
Weight (excluding AC adaptor)	2.4 kg 5 lbs 5 oz
Accessories	Owner’s manual AC adaptor Power cord
Notes	* 0 dBu=0.775 Vrms

In The Box

VR-40HD AV Mixer
Owner’s manual
AC adaptor
Power cord
