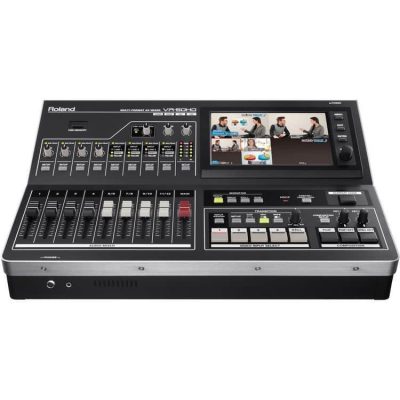

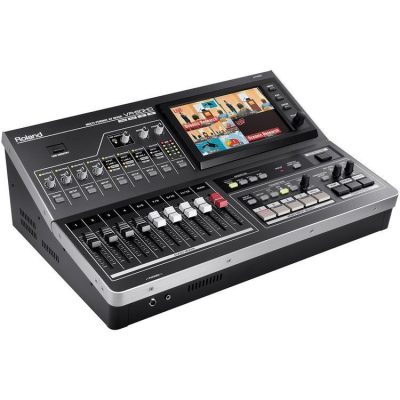

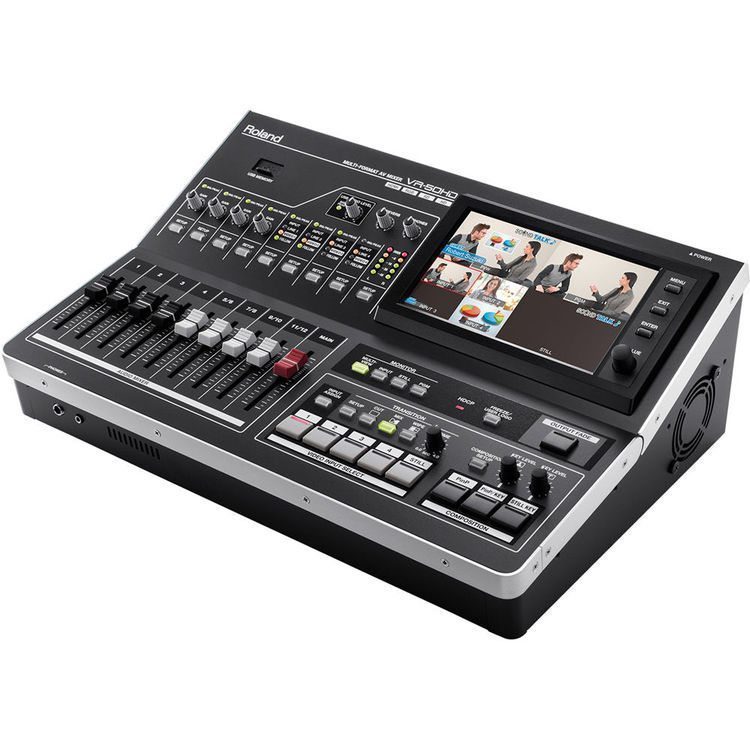

Roland VR-50HD all-in-one Multi-Format AV Mixer

Roland VR-50HD Multi-Format AV Mixer can connect cameras, computers, Blu-ray players, DVD players, microphones, iPads, and more for use as input devices, without having to worry about whether the equipment is analog or digital or what formats they output.

In addition to HD-SDI and HDMI output for HD recording equipment, the unit also provides USB 3.0 and 2.0 output. This enables the ability to connect a computer and perform live streaming and recording. All digital video output connectors include embedded audio as well.

The Roland VR-50HD resolves such issues without the need for any additional equipment.

Even when input devices use different resolutions, internal scalers perform automatic conversion to the optimal resolution. The built-in scalers also let you expand and reduce video and still images however you like for perfect framing.

The Roland VR-50HD features an HDCP mode that lets you input and switch commercial digital video from sources such as Blu-ray discs or game consoles encoded using HDCP digital copyright management technology. This is a multi-format AV mixer that you can count on to handle whatever material turns up on-site.

12 input, 4-Channel Multi-format Video Switcher

At total of 12 HDMI, 3G/HD/SD-SDI/SDI, RGB/COMPONENT, and composite inputs are provided. In addition to professional HD cameras, you can connect equipment that ranges from computers and Blu-ray and DVD players to video cameras using composite output.

The unit features multi-format specifications that allows you to never have to worry about differences in resolution among input devices. *6 channel switching is possible when not using compositing features such as PinP and Key.

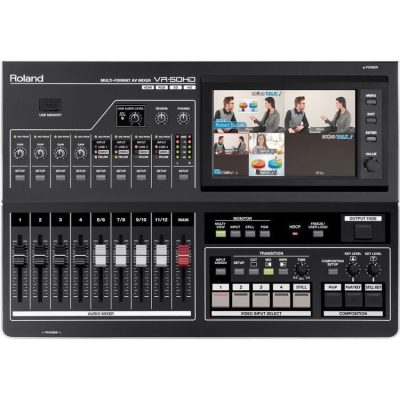

Built-In Preview Touch Monitor

The Roland VR-50HD is equipped with a large 7-inch touch-panel LCD screen that enables truly intuitive operation. Using the seven-way multi-viewer to display four input pictures, composited material, and program out simultaneously eliminates the need for external monitors.

You can also switch to quad multi-view. Advanced settings for picture and sound can also be made using the touch panel, so you can get started right away without having to read the manual.

12-Channel Digital Audio Mixer

The Roland VR-50HD features a 12-channel digital audio mixer that mixes audio from cameras in addition to sound from four microphones, computers, and DVD players. Capturing and mixing 3G/HD/SD-SDI/HDMI audio in the audio mixer is also possible.

Using the “Audio Follow” feature, you can even make the audio switch automatically from one source to another as the video source changes. Built-in delay and equalizer features make possible a broad range of use, from seminars to musical events.

Other Roland Product
V-60HD Multi-Format HD Video Switcher
VC-1-HS HDMI to SDI Video Converter
VR-4HD All-In-One HD AV Mixer
V-800HD MK II Multi-format Video Switcher
XS-1HD Multi-format Matrix Switcher
HT-RX01 HDBaseT Compatible Receiver
XS-82H 8-in x 2-out Multi-Format AV Matrix Switcher
HT-TX01 HDBaseT Compatible Transmitter
XS-83H 8-in x 3-out Multi-Format AV Matrix Switcher
V-1HD HD Video Switcher
XS-84H 8-in x 4-out Multi-Format AV Matrix Switcher
V-1SDI 3G-SDI Video Switcher
V-1200HD Multi-Format Video Switcher
V-40HD Multi-Format Live Video Switcher
V-1200HDR Control Surface for V-1200HD
V-4EX 4-Channel Digital Video Mixer
VC-1-DL Bi-directional SDI/HDMI Converter
VC-1-SC Up/Down/Cross Scan Converter
VC-1-SH SDI to HDMI Video Converter with HDCP Support
VR-50HD Multi-Format AV Mixer

Features

12 input, 4-Channel Video plus still channel Multi-Format Switcher
Supports 3G/HD/SD SDI, HDMI, RGB/Component, and Composite Video Inputs Up to 1080p (3G SDI)
Embedding of audio with delay settings
12-Channel Digital Audio Mixer with XLR, TRS, and RCA jacks along with audio from SDI and HDMI inputs
4 Layer, Compositing of PinP, PinP/KEY, and STILL
Built-In Preview Touch Monitor (7 inch Graphic color LCD 800 x 480 dots)
External Multi-View Output through HDMI
HDCP Support
USB3.0 Video/Audio Output for web streaming and recording up to 1080p (uncompressed)

Specifications

Supported Video Formats
Processing	4:4:4 (RGB), 10-bit 4:2:2 (Y/Pb/Pr), 10-bit

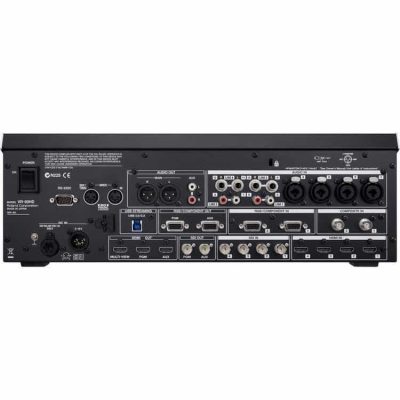

Input Connectors	3G/HD/SD-SDI: BNC type x 4 (INPUT 1–4) * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C. HDMI(DVI-D): Type A(19pin) x 4 (INPUT 1–4 * HDCP Supported. Analog RGB/HD-Component: Mini D-sub 15-pin type x 2 (INPUT 1–2) Analog Video (SD): Composite (BNC type) x 2 (INPUT 1–2) * INPUT 1-2: Select SDI, HDMI or Analog RGB, Composite using menu. * INPUT 3-4: Select SDI, HDMI using menu.
Output Connectors	3G/HD/SD-SDI: BNC type x 2 (PGM OUT, AUX OUT * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C HDMI(DVI-D): Type A(19pin) x 3 (PGM OUT, AUX OUT, MULTI VIEW * HDCP Supported Analog RGB/HD-Component: Mini D-sub 15-pin type x 2 (PGM OUT, AUX OUT)
Input/Output Level and Impedance	Composite: 1.0 Vp-p 75 ohms Analog RGB: 0.7 Vp-p 75 ohms (H, V: 5 VTTL) Analog HD: 1.0 Vp-p 75 ohms (Sync-Signal: Bi-Level/Tri-Level)
SDI	480/59.94i, 576/50i, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p * Conforms to SMPTE 274M, SMPTE 296M, ITU-R BT.601-5.
HDMI:(*2)	480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p 1024?768/60Hz(1), 1280?720/60Hz(1), 1280?800/60Hz(1), 1280?1024/60Hz(1), 1400?1050/60Hz, 1920×1080/60Hz
HDMI(MULTI-VIEW Output):(*2)	1080/59.94p
Component	480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
RGB:(*2)	1024?768/60Hz(1), 1280?720/60Hz(1), 1280?800/60Hz(1), 1280?1024/60Hz(1), 1400?1050/60Hz, 1920×1080/60Hz
Composite	NTSC, PAL
*Note	1 Output refresh rate is 75 Hz when frame rate is set to 50 Hz. 2 Conforms to CEA-861-E or VESA DMT Version 1.0 Revision 11. * The video signal frame rate must match the unit’s frame rate setting. * The output format of HDMI and RGB/Component is always the same. When a Video format is selected, component signal is output from the RGB/COMPONENT connector. When a RGB format is selected, RGB signal is output from the RGB/COMPONENT connector.
USB-VIDEO	480/29.97p, 576/25p, 480/59.94p, 576/50p, 720/29.97p, 720/25p, 720/59.94p, 720/50p, 1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p
Still Image	Windows(R) Bitmap File (.bmp) * Maximum 1920 x 1080 pixels, 24-bit per pixel, uncompressed.
Effects	Transition: Mix, Cut, Wipe (9 patterns) Composition: PinP, Chrominance Key, Luminance Key Others: Output Fade, Output Freeze, User Logo
Audio
Audio Processing	Sampling Rate: 24-bit/48 kHz
Input Connectors	AUDIO IN (1 to 4) jacks (XLR/TRS combo type) * XLR type: 1 GND, 2 HOT, 3 COLD * Phantom Power: DC 48 V (unloaded maximum), 5 mA (maximum load) (Current value per channel). AUDIO IN (5 to 8) jacks (RCA phono type) AUDIO IN (9 to 12) jacks (TRS type)
Output Connectors	AUDIO OUT L,R jacks (XLR-3-32 type) * XLR type: 1 GND, 2 HOT, 3 COLD AUDIO OUT L,R jacks (RCA phono type) PHONES jack (Stereo 1/4-inch phone type) (headphones) PHONES jack (Stereo miniature type) (headphones)
Input Level and Impedance	XLR/TRS: -68 to 4 dBu (Maximum: 22 dBu, 4 k ohms) RCA phono: -10 dBu (Maximum: 8 dBu, 11 k ohms) TRS: 4 dBu (Maximum: 22 dBu, 98 k ohms)
Output Level and Impedance	XLR: 22 dBu (Maximum: 22 dBu, 600 ohms) RCA phono: -10 dBu (Maximum: 8 dBu, 1 k ohms) Headphones: 25 mW 25 mW, 20 ohms
Audio Formats	SDI: Linear PCM, 24bit, 48kHz, 2ch * SMPTE 299M, SMPTE 272M-C HDMI: Linear PCM, 24bit, 48kHz, 2ch USB-AUDIO: Linear PCM, 16bit, 48kHz, 2ch
Audio Effects	Channel Effects: Compressor, Noise Gate, 3-Band EQ, Delay Master Effects: Mastering, 3-Band EQ, Reverb
Others
Remote	Remote MIDI: 5 pin DIN type (IN, OUT/THRU) RS-232C: D-sub 9 pin type x 1
USB Interface	USB2.0 port(host): Hi-Speed USB: Type A (for USB memory) USB3.0 port(device): Type B for USB-VIDEO (Super-Speed/Hi-Speed), USB-AUDIO (Full-Speed) -?Uncompressed Video?? 4:2:2 (Y/Pb/Pr), 8-bit -?Bit-rate: max 2Gbit/s (1080/59.94p only active pixels) -?UVC (USB Video Class) supported uncompressed Video -?Certified USB3.0 cable is required when running at super-speed (anything at 720p or higher)
Display	7 inch Graphic color LCD 800 x 480 dots (touch screen)
Power Supply	AC Adaptor DC 24V Secondary AC Adaptor DC 9 V to 16 V (XLR-4-32 type)
Current Draw	2.5 A (DC 24V)
Operation Temperature	0 to 40 degrees Celsius 32 to 104 degrees Fahrenheit
System Recommendations for recording
Windows	8.0 or higher
Mac	OS X 10.7 and higher
Common	Ivy Bridge Core i7 and higher 8GB Memory or more USB 3.0 (supported USB3.0 Intel Chipset e.g. 7Series) Note: USB Controller Chip by Renesas (formerly NEC) is not suitable

In The Box

AC Adaptor
Power Cord
Owner’s Manual
