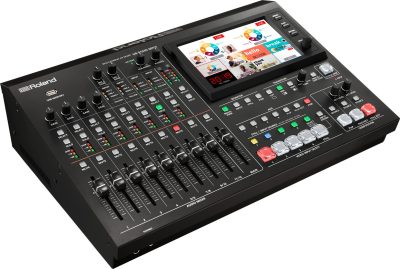

VIDEO |
Video Processing |
4:4:4 (RGB), 10-bit |
4:4:4 (Y/Pb/Pr), 10-bit |
Input Connectors |
SDI IN 1–4 connectors: BNC type x 4 (INPUT 1–4) |
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C. |
HDMI IN 1–4 connectors: HDMI type A x 4 (INPUT 1–4) |
* HDCP Supported |
RGB/COMONENT IN 1–2 connectors: HD DB-15 type x 2 (INPUT 1–2) |
COMPOSITE IN 1–2 connectors: BNC type x 2 (INPUT 1–2) |
* INPUT 1–2: Select SDI, HDMI, RGB/COMPONENT or COMPOSITE using menu. |
Output Connectors |
HSDI OUT (PGM, AUX) connectors: BNC type x 2 (PGM OUT, AUX OUT) |
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C |
HDMI OUT (PGM, AUX, MULTI-VIEW) connectors: Type A x 3 (PGM OUT, AUX OUT, MULTI-VIEW OUT) |
* HDCP Supported |
Analog RGB/HD-Component: Mini D-sub 15-pin type x 2 (PGM OUT, AUX OUT) |
Input/Output Level and Impedance |
Composite (COMPOSITE IN): 1.0 Vp-p 75 ohms |
Analog RGB (RGB/COMPONENT IN, RGM/COMPONENT OUT): 0.7 Vp-p 75 ohms (H, V: 5 VTTL) |
Analog HD (RGB/COMPONENT IN, RGB/COMPONENT OUT): 1.0 Vp-p 75 ohms (Sync-Signal: Bi-Level/Tri-Level) |
Supported Video Formats |
SDI (SDI IN, SDI OUT): 480/59.94i, 576/50i, 720/59.94p, 720/50p, 1080/23.98p (*3), 1080/24p (*3), 1080/29.97p (*3), 1080/30p (*3), 1080/25p (*3), 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p |
* Conforms to SMPTE 274M, SMPTE 296M, ITU-R BT.601-5. |
HDMI (HDMI IN, HDMI OUT) (*1): 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/23.98p (*3), 1080/24p (*3), 1080/29.97p (*3), 1080/30p (*3), 1080/25p (*3), 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p 1024 x 768/60 Hz (*2), 1280 x 720/60 Hz, 1280 x 800/60 Hz (*2), 1280 x 1024/60 Hz (*2), 1400 x 1050/60 Hz, 1920 x 1080/60 Hz |
HDMI (HDMI OUT MULTI-VIEW only) (*1): 1080/59.94p |
Component (RGB/COMPONENT IN, RGB COMPONENT OUT): 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p |
RGB (RGB/COMPONENT IN, RGB/COMPONENT OUT) (*1): 1024 x 768/60 Hz (*2), 1280 x 720/60 Hz (*2), 1280 x 800/60 Hz (*2), 1280 x 1024/60 Hz (*2), 1400 x 1050/60 Hz, 1920 x 1080/60 Hz |
Composite (COMPOSITE IN): NTSC, PAL |
*Note |
*1 Conforms to CEA-861-E or VESA DMT Version 1.0 Revision 11. |
*2 Output refresh rate is 75 Hz when frame rate is set to 50 Hz. |
* The video signal frame rate must match the unit’s frame rate setting. |
*3 Only input format is supported. |
* The output format of HDMI and RGB/Component is always the same. |
When a Video format is selected, component signal is output from the RGB/COMPONENT connector. |
When a RGB format is selected, RGB signal is output from the RGB/COMPONENT connector. |
USB-VIDEO (USB STREAMING): 480/29.97p, 576/25p, 480/59.94p, 576/50p, 720/29.97p, 720/25p, 720/59.94p, 720/50p, 1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p |
Still Image: Windows(R) Bitmap File (.bmp) |
* Maximum 1920 x 1080 pixels, 24-bit per pixel, uncompressed. |
* It can be loaded up to 4 files from USB memory. |
Effects |
Transition: Mix, Cut, Wipe (9 patterns) |
Composition: PinP, Chrominance Key, Luminance Key |
Others: Output Fade, Output Freeze, User Logo |
AUDIO |
Audio Processing |
Sampling Rate: 24 bits, 48 kHz |
Audio Formats |
SDI (SDI IN, SDI OUT): Linear PCM, 24 bits, 48 kHz, 2 ch |
* SMPTE 299M, SMPTE 272M-C |
HDMI (HDMI IN, HDMI OUT): Linear PCM, 24 bits, 48 kHz, 2 ch |
USB-AUDIO (USB STREAMING): Linear PCM, 16 bits, 48 kHz, 2 ch |
Input Connectors |
AUDIO IN 1–4 jacks: Combo type (XLR, 1/4-inch TRS phone), balanced, phantom power (DC 48 V, 10 mA Max) |
AUDIO IN 5–8 jacks (1/4-inch TRS phone type) (LINE 1–2) |
* AUDIO IN 5 and 7 are mic level capable. (MIC 5, 7) |
AUDIO IN 9–12 jacks (RCA phono type) (LINE 3–4) |
Output Connectors |
AUDIO OUT MAIN (L, R) jacks: XLR type |
AUDIO OUT AUX 1 (L, R) jacks: RCA phono type |
AUDIO OUT AUX 2/MONITOR (L, R) jacks: 1/4-inch TRS phone type |
PHONES jack: Stereo 1/4-inch phone type |
PHONES jack: Stereo miniature type |
Nominal Input Level |
AUDIO IN 1–4 jacks: -64 to +4 dBu (Maximum input level: +24 dBu) |
AUDIO IN 5, 7 jacks: -64 to +4 dBu (Maximum input level: +24 dBu) |
AUDIO IN 6, 8 jacks: +4 dBu (Maximum input level: +24 dBu) |
AUDIO IN 9–12 jacks: -10 dBu (Maximum input level: +9 dBu) |
Input Impedance |
AUDIO IN 1–4 jacks: 30 k ohms |
AUDIO IN 5–8 jacks: 30 k ohms |
AUDIO IN 9–12 jacks: 7 k ohms |
Nominal Output Level |
AUDIO OUT MAIN L-R jacks: +4 dBu (Maximum output level: +24 dBu) |
AUDIO OUT AUX 1 jacks: -10 dBu (Maximum output level: +8 dBu) |
AUDIO OUT AUX 2/MONITOR jacks: +4 dBu (Maximum output level: +24 dBu) |
Headphones: 72 mW + 72 mW (32 ohms load) |
Output Impedance |
AUDIO OUT MAIN L-R jacks: 600 ohms |
AUDIO OUT AUX 1 jacks: 1 k ohms |
AUDIO OUT AUX 2/MONITOR jacks: 600 ohms |
Headphones: 30 ohms |
Residual Noise Level (IHF-A, typ.) |
U-92 dBu (All faders: Min) |
-89 dBu ([MAIN] Fader: Unity, Channel faders: Unity only one INPUT1 channel, Preamp gain: Min) |
-60 dBu ([MAIN] Fader: Unity, Channel faders: Unity only one INPUT1 channel, Preamp gain: Max) |
* Input 150 ohms terminate |
* Output Connector: AUDIO OUT MAIN (L, R) jacks§AUDIO OUT AUX 2/MONITOR jacks |
-100 dBu (All faders: Min) |
-98 dBu ([MAIN] Fader: Unity, Channel faders: Unity only one INPUT1 channel, Preamp gain: Min) |
-74 dBu ([MAIN] Fader: Unity, Channel faders: Unity only one INPUT1 channel, Preamp gain: Max) |
* Input 150 ohms terminate |
* Output Connector: AUDIO OUT AUX 1 (L, R) jacks |
Audio Effects |
Auto mixing, Anti-feedback, 4-Band EQ, Delay, Compressor, HPF, Noise Gate, Reverb, Limiter, Voice changer, 15-Band EQ, Adaptive Noise Reduction, Low Frequency Cut, Loudness AGC, and Auto Leveler |
Channel Effects(common): HPF, Compressor, Noise Gate, 4-Band EQ, Delay |
Channel Effects(FX Block): Anti-feedback, Voice changer |
Master Effects: 4-Band EQ, Compressor, Limiter, Reverb, 15-Band EQ |
COMMON SECTION |
Remote Control |
RS-232C connector: D-sub 9 pin type |
LAN connector: RJ45 100BASE-TX |
USB Interface |
USB MEMORY port (HOST): USB A type for USB MEMORY(USB flash drive, Still image) |
USB port (HOST): USB A type(Use for future expansion) |
USB STREAMING port (DEVICE): USB B type for USB-VIDEO(SuperSpeed/Hi-Speed), USB-AUDIO (Full-Speed) |
Other Functions |
Preset Memory (8 types) |
Panel lock function |
EDID emulator |
Auto switching (Video follows audio) |
Remote Camera Control |
Display |
7 inch Graphic color LCD 800 x 480 dots (touch screen) |
Power Supply |
AC Adaptor, Secondary AC Adaptor DC 9 V to 16 V (XLR-4-32 type) |
Current Draw |
2.8 A |
Power Consumption |
67 W |
Operation Temperature |
+0 to +40 degrees Celsius |
+32 to +104 degrees Fahrenheit |
Accessories |
Startup Guide |
Leaflet “USING THE UNIT SAFELY” |
AC adaptor |
Power cord |
Ground Cord |
Dimensions |
437 (W) x 325 (D) x 125 (H) mm |
17-1/4 (W) x 12-13/16 (D) x 4-15/16 (H) inches |
Weight |
5.9 kg |
|
13 lbs 1 oz |
SYSTEM RECOMMENDATIONS FOR RECORDING (VR CAPTURE) OR STREAMING HD MATERIAL |
Windows |
8.0 or higher |
Mac |
OS X 10.7 and higher |
* When recording data in the HD size, use OS X 10.8.5 or later. |
Common |
Ivy Bridge Core i5 and higher |
|
8GB Memory or more |
USB 3.0 (supported USB3.0 Intel Chipset e.g. 7Series) |
|
* 0 dBu=0.775 Vrms |
