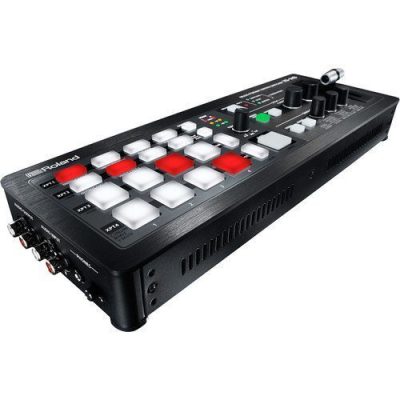

Roland XS-1HD Multi-format Matrix Switcher with Built-in EDID emulator

Roland XS-1HD is ideal for supporting live event productions that involve a variety of video signals. A high quality scaler is provided on each input, allowing for fast setup. At only the width of a 13? laptop computer, the Roland XS-1HD allows real-time operation in even the most space-limited working environments.

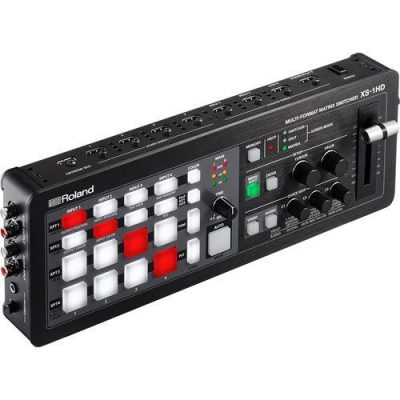

CROSS-POINT BUTTONS

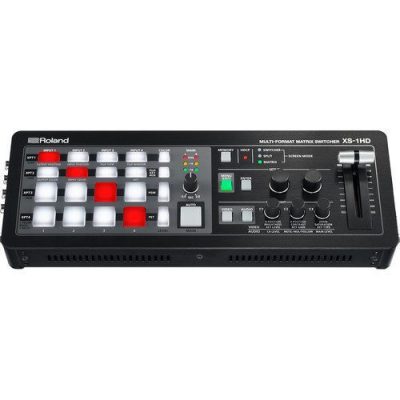

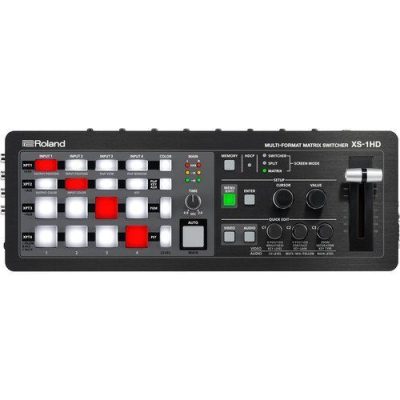

Roland XS-1HD buttons select the input channel for each output. The vertical columns correspond to the input, and the horizontal rows correspond to the output. Buttons are lite-up white when a video signal is present.

QUICK EDIT

Roland XS-1HD function lets you adjust the video or audio from the operation panel without need to access the menu. You can control settings such as the position and scaling of the image, the location of the PinP inset windows, and the audio volume.

HDMI INPUT/OUTPUT

HDMI connectors allow video and audio (stereo) to be input and output. A scaler and EDID emulator are built-in for each input, and HDCP is also supported, allowing for even rights-protected content to be switched.

USB MEMORY PORT

Settings can be backed up on a USB flash drive. Still images can also be loaded, and instantly displayed when needed.

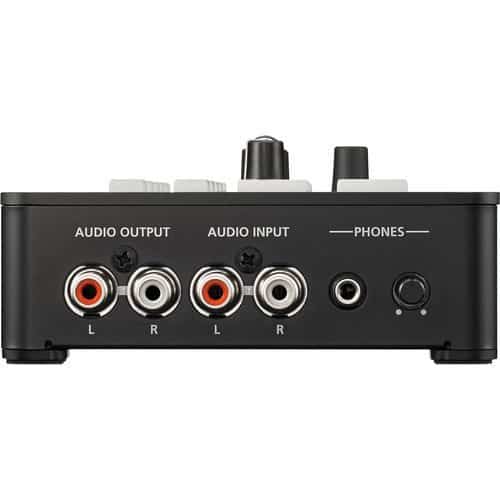

AUDIO INPUT/OUTPUT

Line-level stereo input and output are available and can be mixed with audio that is input via HDMI. Audio embedding and de-embedding are supported, along with audio delay to adjust for lip-sync.

REMOTE CONTROL

Serial control is enabled. It is possible to cooperate with other switchers and mixers and control from the outside.

MATRIX MODE

Four input video signals can be individually switched to one of four outputs. Since a scaler is provided for each of the four inputs, you can connect a mix of video devices such as cameras, PCs, media players, Blu-ray discs, or smartphones. You can switch between videos by fading-in/out and can adjust desired transition time using the TIME knob.

SWITCHER MODE

Roland XS-1HD mode lets you use a cross-dissolve to seamlessly transition between sources, or use PinP or key-compositing. A multi-view input preview can be output from HDMI OUT 4 for confirming input sources while operating the unit.*1 If you’re not using PinP or key-compositing, you can use an AUX bus to output a separate video signal to a confidence monitor or other destination.
*1 Skip-frame display

SPLIT MODE

Roland XS-1HD mode composites multiple videos into a single screen for output. Up to three small screens can be composited into a background video. The position, size and layering order of the inset screens can be individually set. This is useful when it is required show multiple videos simultaneously, such as when recording e-learning content or presentations.

Other Roland Product
V-60HD Multi-Format HD Video Switcher
VC-1-HS HDMI to SDI Video Converter
VR-4HD All-In-One HD AV Mixer
V-800HD MK II Multi-format Video Switcher
XS-1HD Multi-format Matrix Switcher
HT-RX01 HDBaseT Compatible Receiver
XS-82H 8-in x 2-out Multi-Format AV Matrix Switcher
HT-TX01 HDBaseT Compatible Transmitter
XS-83H 8-in x 3-out Multi-Format AV Matrix Switcher
V-1HD HD Video Switcher
XS-84H 8-in x 4-out Multi-Format AV Matrix Switcher
V-1SDI 3G-SDI Video Switcher
V-1200HD Multi-Format Video Switcher
V-40HD Multi-Format Live Video Switcher
V-1200HDR Control Surface for V-1200HD
V-4EX 4-Channel Digital Video Mixer
VC-1-DL Bi-directional SDI/HDMI Converter
VC-1-SC Up/Down/Cross Scan Converter
VC-1-SH SDI to HDMI Video Converter with HDCP Support
VR-50HD Multi-Format AV Mixer

Features

Still images can be loaded from a USB flash drive
Built-in EDID emulator, and HDCP-compliant
Split Mode allows PinP of up to three inset windows
Frame synchronizer and scaler on all inputs
High-quality 4:4:4/10-bit processing at up to WUXGA/1080p
Switcher Mode allows PinP, key-compositing, and dissolve transitions
Three operation modes Matrix Mode allow switching of 4 sources to any of 4 outputs
A table-top matrix switcher that’s the width of a 13? laptop, equipped with four HDMI inputs and outputs
Built-in eight-channel digital audio mixer handles audio from four HDMI signals and stereo analog input

Specifications

VIDEO
Processing	4:4:4 (Y/Pb/Pr, RGB) /10 bits 4:2:2 (Y/Pb/Pr) /10 bits
Input Connectors	HDMI : HDMI type A x 4 (HDMI INPUT 1–4) *HDCP Supported
Output Connectors	HDMI : HDMI type A x 4 (HDMI OUTPUT 1–4) *HDCP Supported
Formats	480/59.94i (1), 576/50i (1), 480/59.94p (1), 576/50p (1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 800 x 600/60 (1)(2), 1024 x 768/60 (2), 1280 x 720/60 (2), 1280 x 800/60 (2), 1366 x 768/60 (2), 1280 x 1024/60 (2), 1400 x 1050/60 (2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11 Frame rate is 59.94 Hz (NTSC) or 50 Hz (PAL). (1) Input only. (2) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
Effects	Output Mode : Switcher, Split, Matrix Transition : Mix, Cut (3) Composition (Keyer) : 2 (3) Others : HDCP Supported, Test Pattern Generator. (*3) These effects depends on Output Mode.
Still Image	Internal Memory : 1 Maximum Size : 1920 x 1200 pixels Format : Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
AUDIO
Sampling Rate	24 bits/48 kHz
Input Connectors	HDMI : HDMI type A x 4 AUDIO INPUT : RCA pin type
Output Connectors	HDMI : HDMI type A x 4 AUDIO OUTPUT : RCA pin type PHONES : Stereo mini type
Input Level	AUDIO INPUT : -10 dBu (Maximum : +8 dBu)
Input Impedance	AUDIO INPUT : 15 k ohms
Output Level	AUDIO OUTPUT : -10 dBu (Maximum : +8 dBu) PHONES : 72 mW + 72 mW (32 ohms)
Output Impedance	AUDIO OUTPUT : 1 k ohm PHONES : 10 ohms
Formats	HDMI : Linear PCM, 24 bits, 48 kHz, 2 ch
Processing	Mixer : 4 ch (Delay : Maximum 500 ms, Audio Follow) Test Tone Generator
OTHERS

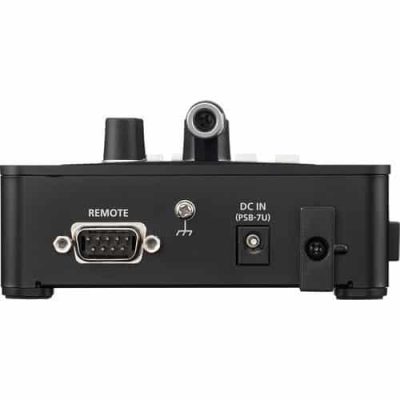

External Connectors	REMOTE : RS-232 DB-9 type (Male) x 1 *for Remote Control USB MEMORY : USB A type x 1 (USB Memory)
Preset Memory	16 *Auto Memory Function
Power Supply	AC Adaptor
Current Draw	2.1 A
Power Consumption	25 W
Operation Temperature	+0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit
Dimensions	328 (W) x 117 (D) x 57 (H) mm 12-15/16 (W) x 4-5/8 (D) x 2-1/4 (H) inches
Weight	1.2 kg 2 lbs 11 oz
Notes	* 0 dBu = 0.775 Vrms
