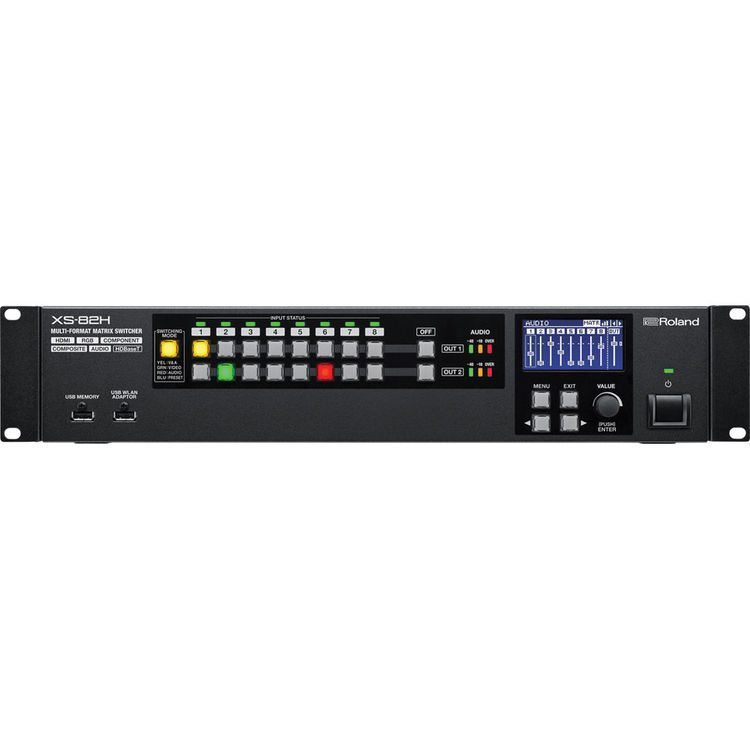

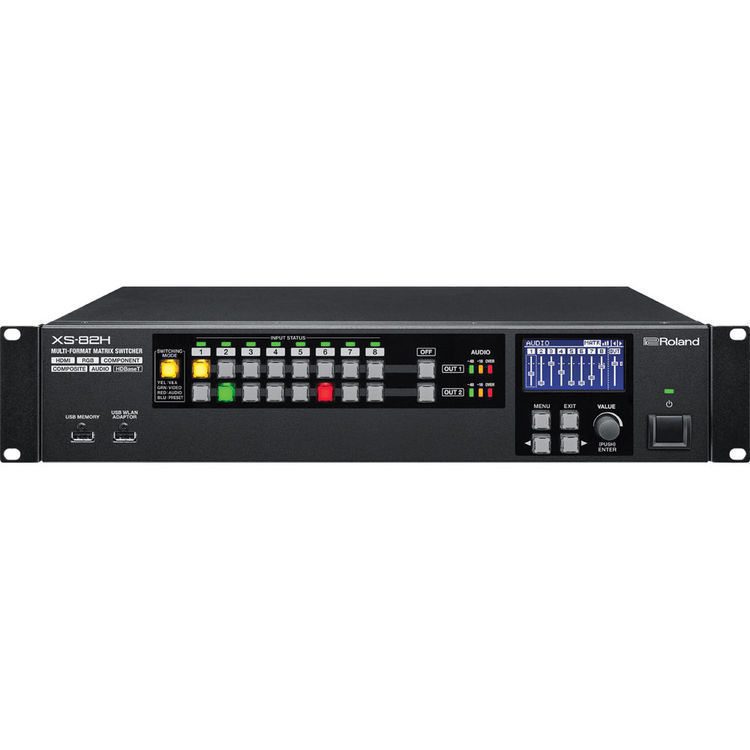

Roland XS-82H Digital Multi-Format AV Matrix Switcher

The Roland XS-82H has eight video inputs. In addition to the HDMI port which can pass DVI signals, the series also enables switching for all analog signal formats including RGB, component, composite and S-video.

EDID emulation

The Roland XS-82H features EDID emulation for HDMI and RGB signals, managing EDID information between the display and HDMI source to ensure a stable system environment for HDMI. Near instant video switching is possible within 0.2 seconds even with HDCP enabled.

Video signals can be flipped vertically and horizontally, or rotated 90 degrees

Using this in combination with the built-in scaling makes creative cropping and orienting of the video possible.

Switching and mixing of audio inputs with EQ and dynamics

The Roland XS-82H internal audio mixer enables switching and mixing of audio inputs with EQ and dynamics processing on every input. Audio mixes can be created from both analog audio inputs as well as embedded HDMI audio inputs. The resultant mix can be embedded back into the HDMI/HDBaseT output as well as analog audio outputs.

Compositing and multi-screen

The?Roland XS-82H internal scalers enable the XS series to scale individual HDMI, HD component , RGB, composite and S-video inputs and mix inputs of different resolutions to a common output. Each output can be in their respective format and display.

Resolutions up to WUXGA/1080p

Resolutions up to WUXGA/1080p are supported for both input and output. Deinterlacing interlaced video for output as a progressive signal is also possible.

Video processing

The Roland XS-82H features video processor which enables the composition of the video signal and split-picture in a numerous number of productions. Dissolving transition is possible in Version 2.0. *Output format cannot be changed separately when using the composition function.

All the outputs accommodate HDMI and HDBaseT

Roland XS-82H Video and Audio signals can be transmitted over a long distance by a LAN cable. *Please access the website of the XS series in order to see more connecting verification information of HDBaseT.

Sophisticated sound processing

The internal 16ch stereo digital audio mixer enables sophisticated sound processing. Along with eight stereo HDMI audio inputs the series can also accept eight stereo analog audio inputs. Each of the inputs can be mixed separately.

Digital audio mixer with various functions

Each audio input has an internal high-pass filter, 4-band equalizer, noise gate and compressor. Audio follows video capabilities are also available enabling audio switching coordinated with video switching. Each audio output has a 4-band equalizer, gate, compressor and delay for proper lip-sync. It also features down-mixing function which makes output to a ceiling speaker possible.

The XS series accommodates mic level audio inputs

A internal ducking function enables the ability to have the mic level automatically mixed above any other audio input.

Wireless control from an iPad

Using the optional wireless LAN adapter enables direct control from an iPad installed with the dedicated XS-80 Remote app. Along with operating the unit, XS-80 Remote can be used to change settings instantly with its memory-recall function. The operation menu can also be customized by changing the layout, tab names, preset names and channel names or the background picture. Control preset change, video switching and audio level control.

Digital audio effects

The Roland XS-82H is equipped with high quality audio effects. Built-in equalizers are included to balance frequencies and eliminate feedback. Each input has a compressor which enables ducking and a lip-sync delay.

High-speed HDMI switching

All HDMI inputs and outputs and HDBaseT outputs support HDCP. The XS series can switch HDCP protected video at an extremely fast speed of less than 0.2 seconds thanks to the XS series advanced HDCP key management.

HDBaseT outputs

The Roland XS-82H include both HDMI and HDBaseT outputs. When using a LAN cable, up to WUXGA/ 1080p video signal can be transmitted up to 100meters. HDBaseT is a connectivity technology established by the HDBaseT Alliance. HDBaseT enables uncompressed HD video and digital audio signal to be transmitted over a LAN cable. Use of a shielded Cat5e LAN cable is recommended. Transmission distance depends on the quality of the cable.

Other Roland Product
V-60HD Multi-Format HD Video Switcher
VC-1-HS HDMI to SDI Video Converter
VR-4HD All-In-One HD AV Mixer
V-800HD MK II Multi-format Video Switcher
XS-1HD Multi-format Matrix Switcher
HT-RX01 HDBaseT Compatible Receiver
XS-82H 8-in x 2-out Multi-Format AV Matrix Switcher
HT-TX01 HDBaseT Compatible Transmitter
XS-83H 8-in x 3-out Multi-Format AV Matrix Switcher
V-1HD HD Video Switcher
XS-84H 8-in x 4-out Multi-Format AV Matrix Switcher
V-1SDI 3G-SDI Video Switcher
V-1200HD Multi-Format Video Switcher
V-40HD Multi-Format Live Video Switcher
V-1200HDR Control Surface for V-1200HD
V-4EX 4-Channel Digital Video Mixer
VC-1-DL Bi-directional SDI/HDMI Converter
VC-1-SC Up/Down/Cross Scan Converter
VC-1-SH SDI to HDMI Video Converter with HDCP Support
VR-50HD Multi-Format AV Mixer

Click to rate this post!

[Total: 0 Average: 0]

Specifications

Video
Processing	4:4:4 (Y/Pb/Pr), 10-bit
Input Connectors	HDMI : Type A (19 pin) x 8 (Input 1 to 8) *HDCP supported RGB/Component/S-video/Composite : HD DB-15 type x 8 (Input 1 to 8)
Output Connectors	HDMI : Type A (19 pin) x 3 (Output 1 to 3) HDBaseT : RJ-45 x 3 (Output 1 to 3) *HDCP supported
Input/Output Level and Impedance	RGB/Component Level : 1.0Vp-p (luminance), 0.286Vp-p (chroma, NTSC), 0.3Vp-p (chroma, PAL) Impedance : 75 ohms Composite/S-video Level : 1.0Vp-p (luminance), 0.286Vp-p (chroma, NTSC), 0.3Vp-p (chroma, PAL) Impedance : 75 ohms
Input Supported Formats	HDMI : up to 1080p/59.94, up to 1920×1200/60 Component : up to 1080p/59.94 RGB : up to 1920×1200/60 Reduced Blanking Composite : 480i/59.94, 576i/50 S-video 480i/59.94, 576i/50 Still Image: Windows® Bitmap File (.bmp) Maximum 1920 x 1200 pixels, 24 bit per pixel, uncompressed
Output Supported Formats	HDMI/HDBaseT: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1600 x 1200/60 Hz, 1920 x 1200/60 Hz * The output refresh rates of 640 x 480–1366 x 768 are 75 Hz when the unit’s frame rate setting is 50 Hz. * Conforms to VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60 Hz: Reduced blanking
Effects	Transition : Cut Composition : PinP Others : Vertically flip, Horizontally flip, Rotated 90 degrees
Audio
Audio Processing	Sampling Rate : 24-bit/48 kHz

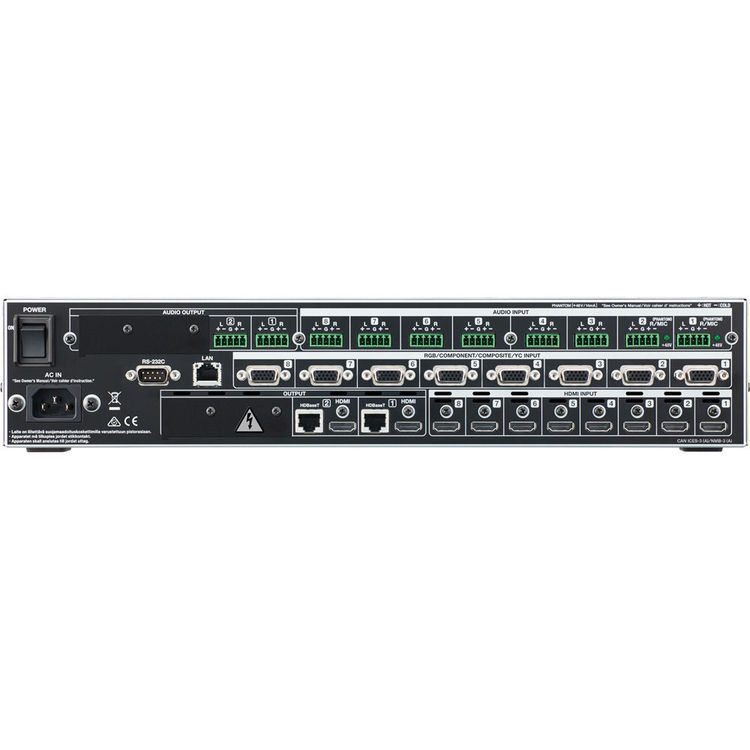

Input Connectors	Digital : HDMI Type A (19 pin) x 8 Analog : 5 pin terminal block connector x 8
Output Connectors	Digital : HDMI Type A (19 pin) x 2 Analog : 5 pin terminal block connector x 2
Input Level and Impedance	Ch 1 to 2 : -60 to 4dBu (Maximum: 22 dBu), 10k ohms (Gain 0 to 23 dBu), 5k ohms (Gain 24 to 64 dBu) Ch 3 to 8 : 4dBu (Maximum: 22 dBu), 8.5k ohms
Output Level and Impedance	Ch 1 to 4 : 4dBu (Maximum: 22 dBu), 600 ohms
Audio Formats	HDMI : Linear PCM, 24bit, 48kHz, 8ch
Audio Effects	Input : High-pass filter, 4-band equalizer, Gate/Expander, Compressor Output : 4-band equalizer, Gate/Compressor, Delay
Other Connectors	RS-232C : D-Sub 9 pin type x 1 LAN : RJ-45 x 1 USB : A Type x 2 for USB memory, for WNA-1100RL
Display	2 color LCD 128 x 64 dots
Others
Power Supply	AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
Power Consumption	50w

Click to rate this post!

[Total: 0 Average: 0]

In The Box

Power Cord
Captive Screw Connectors
Rubber Foots
Owner’s Manual
