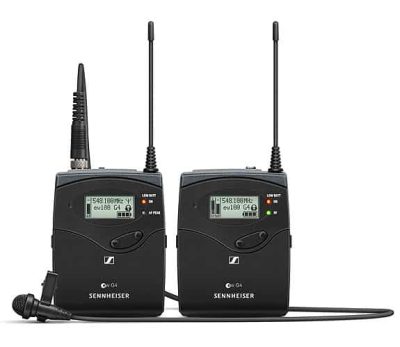

Sennheiser EW 112P G4 Wireless Portable Lavalier Microphone Set

USD 599.00

Clear
Compare
SKU: N/A Category:

Sennheiser EW 112P G4 Wireless Portable Lavalier Microphone Set

A broadcast quality sound solution. Providing the highest flexibility for your video sound and field recording applications.

A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.

Rugged all-in-one wireless system with high flexibility for broadcast quality sound, including the clip-on microphone ME 2-II (omni-directional) or ME 4 (cardioid) for excellent speech intelligibility and daily on-location use.

  • Rugged all-in-one wireless system with high flexibility for broadcast quality sound
  • Excellent sound and construction quality
  • Easy to use and fast setup time
  • Powerful and reliable wireless transmission
  • Range: up to 100 meters / 330 feet
  • Up to 8 hours of operation time
EK 100 G4
Frequency range A: 516 – 558 MHz
G: 566 – 608 MHz
B: 626 – 668 MHz
C: 734 – 776 MHz
D: 780 – 822 MHz
E: 823 – 865 MHz
Dimensions Approx. 82 x 64 x 24 mm
Compander Sennheiser HDX
THD, total harmonic distortion ≤ 0.9 %
Weight Approx. 160 g
Audio output 3.5 mm jack socket: +12 dBu (mono, unbalanced)
Signal-to-noise ratio > 110 dBA
Switching bandwidth up to 42 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Modulation Wideband FM
Operating Time  Typically 8h
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption at nominal voltage: typ. 180 mA
with receiver switched off: ≤ 25 µA
Adjacent channel rejection ≥ 65 dB
Intermodulation attenuation ≥ 65 dB
Powering 3 V battery / 2.4 V rechargeable battery
Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity < 1.6 μV for 52 dBA eff S/N
Squelch low: 5 dBµV middle: 15 dBµV high: 25 dBμV
Temperature Range -10 °C to +55 °C
Receiver Principle Adaptive diversity
Blocking ≥ 70 dB
SK 100 G4
Dimensions Approx. 82 x 64 x 24 mm
Compander Sennheiser HDX
THD, total harmonic distortion ≤ 0.9 %
Weight (incl. batteries) approx. 160 g
Signal-to-noise ratio ≥ 110 dBA
RF output power Max. 30 mW
Switching bandwidth up to 42 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Operating time Typically 8 h
Modulation Wideband FM
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 µA
Input impedance 40 kΩ, unbalanced / 1 MΩ
Max. Input voltage 3 Veff
Powering 3 V battery / 2.4 V rechargeable battery
Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response Mic: 80 – 18,000, Hz Line: 25 – 18,000 Hz
Temperature Range -10 °C to +55 °C
Frequency stability ≤ ±15 ppm
ME 2
Connector 3.5 mm jack
Frequency response 50 to 18,000 Hz (ME 2-II)
Max. sound pressure level 130 dB
Cable length approx. 1.60 m
Transducer principle pre-polarized condensor microphone
Pick-up pattern omni-directional
Sensitivity in free field, no load (1kHz) 20 mV/Pa
Equivalent noise level 36 dB
  • EK 100 G4 camera receiver
  • SK 100 G4 bodypack transmitter
  • ME 2 clip-on microphone
  • 4 AA batteries
  • CA 2 camera adapter
  • CL 1 3.5 mm jack cable
  • CL 100 XLR to 3.5 mm jack adapter cable
  • quick guide
  • safety guide
  • manufacturer declaration sheet

Additional information

Choose Product Variant

EW 112P G4-A (516-558 MHz Ch26-Ch31), EW 112P G4-B (626-668 MHz Ch40-Ch45), EW 112P G4-C (734-776 MHz Ch54-Ch59), EW 112P G4-D (780-822 MHz Ch59-Ch64), EW 112P G4-E (823-865 MHz Ch65-Ch70), EW 112P G4-G (566-608 MHz Ch33-Ch38)
