Sennheiser EW 135P G4
Click to enlarge

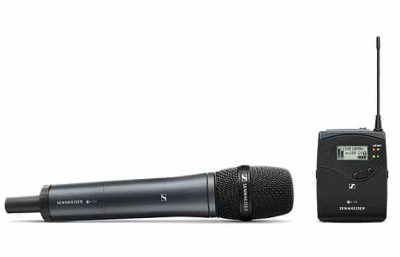

Sennheiser EW 135P G4 Wireless Microphone Set

SGD 886.35 excl. Tax

WeightN/A
Choose Product Variant

EW 135P G4-A (516-558 MHz Ch26-Ch31), EW 135P G4-B (626-668 MHz Ch40-Ch45), EW 135P G4-C (734-776 MHz Ch54-Ch59), EW 135P G4-D (780-822 MHz Ch59-Ch64), EW 135P G4-E (823-865 MHz Ch65-Ch70), EW 135P G4-G (566-608 MHz Ch33-Ch38)

Clear
Add to wishlist
SKU: N/A Category:
Description

Sennheiser EW 135P G4 Wireless Microphone Set for performers, speakers, and reporters

Sennheiser EW 135P G4 Wireless Microphone Set a broadcast quality sound solution. Providing the highest flexibility for your video sound and field recording applications.

A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.

The easiest wireless solution for moderators or reporters. The rugged e 835 microphone resists any bad weather or field condition, while the versatile receiver is easily mounted to any camera.

Features

  • Rugged all-in-one wireless system with high flexibility for broadcast quality sound
  • Excellent sound and construction quality
  • Easy to use and fast setup time
  • Powerful and reliable wireless transmission
  • Range: up to 100 meters / 330 feet
  • Up to 8 hours of operation time
Specifications
EK 100 G4
Frequency range
A1: 470-516 MHz
A: 516-558 MHz
GB: 606-648 MHz
G: 566-608 MHz
B: 626-668 MHz
C: 734-776 MHz
D: 780-822 MHz
E: 823-865 MHz
Dimensions
Approx. 82 x 64 x 24 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
≤ 0.9 %
Weight
Approx. 160 g
Audio output
3.5 mm jack socket: +12 dBu (mono, unbalanced)
Signal-to-noise ratio
> 110 dBA
Switching bandwidth
up to 42 MHz
Peak deviation
±48 kHz
Nominal deviation
±24 kHz
Modulation
Wideband FM
Operating Time
Typically 8h
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 180 mA
with receiver switched off: ≤ 25 µA
Adjacent channel rejection
≥ 65 dB
Intermodulation attenuation
≥ 65 dB
Powering
3 V battery / 2.4 V rechargeable battery
Receiving frequency
Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity
< 1.6 μV for 52 dBA eff S/N
Squelch
low: 5 dBµV middle: 15 dBµV high: 25 dBμV
Temperature Range
-10 °C to +55 °C
Receiver Principle
Adaptive diversity
Blocking
≥ 70 dB
SKM 100 G4
Dimensions
Approx. Ø 50 x 265 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
≤ 0.9 %
Weight
(incl. batteries) approx. 450 g
Signal-to-noise ratio
≥ 110 dBA
RF output power
Max. 30 mW
Switching bandwidth
up to 42 MHz
Peak deviation
±48 kHz
Nominal deviation
±24 kHz
Operating time
Typically 8 h
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 µA
Input impedance
40 kΩ
Max. Input voltage
3 Veff
Powering
3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response
80 – 18,000, Hz
Temperature Range
-10 °C to +55 °C
Frequency stability
≤ ±15 ppm
ME 2
Connector
3.5 mm jack
Frequency response
50 to 18,000 Hz
Max. sound pressure level
130 dB
Cable length
approx. 1.60 m
Pick-up pattern
cardioid
Sensitivity in free field, no load (1kHz)
20 mV/Pa
Equivalent noise level
36 dB
MMD 935-1
Sound pressure level (SPL)
154 dB SPL
Transducer principle
dynamic
Pick-up pattern
cardioid
Sensitivity
2.5 mV/Pa
In the Box
  • EK 100 G4 camera receiver
  • SKM 100 G4 handheld transmitter
  • MMD 835-1 microphone head
  • MZQ 1 microphone clamp
  • 4 AA batteries
  • CA 2 camera adapter
  • CL 1 3.5 mm jack cable
  • CL 100 XLR to 3.5 mm jack adapter cable
  • quick guide
  • safety guide
  • manufacturer declaration sheet
