Description

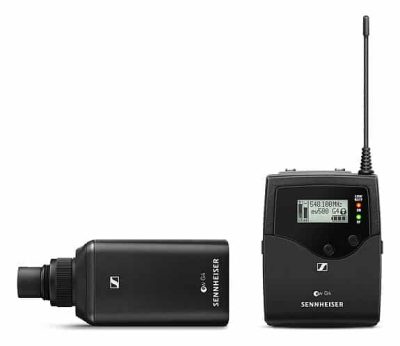

Sennheiser EW 500 BOOM G4 Sound Plug-On Wireless Set

The Sennheiser EW 500 G4 professional?s choice for broadcast quality sound. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use.

The phantom power-equipped SKP 500 plug-on transmitter adapts any wired shotgun or handheld microphone for a wide range of wireless applications, from field interviews to off-camera boom work.

Features

Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
Professional sound and excellent construction quality
Easy to use and fast setup time
Easy and flexible wireless synchronisation between transmitter and receiver via infrared
Up to 88 MHz bandwidth, up to 32 channels
Range: up to 100 meters / 330 feet
Increased RF output power (10/30/50 mW)
Up to 8 hours of operation time
With 48 V phantom powering

Click to rate this post!

[Total: 0 Average: 0]

Specifications

EK 500 G4
Frequency range	AW+ : 470-558 MHz Gw : 558-626 MHz Bw : 626-698 MHz Cw : 718-790 MHz Dw : 790-865 MHz GBw : 606-678 MHz
Dimensions	Approx. 82 x 64 x 24 mm
Compander	Sennheiser HDX
THD, total harmonic distortion	? 0.9 %
Weight	Approx. 130 g
Audio output	3.5 mm jack socket: +17 dBu (mono, unbalanced)
Signal-to-noise ratio	Line: ? 110 dBA, Phones: approx. 90 dBA
Switching bandwidth	up to 88 MHz
Peak deviation	?48 kHz
Nominal deviation	?24 kHz
Modulation	Wideband FM
Operating Time	Typically 8h
Power supply	2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption	at nominal voltage: typ. 140 mA with receiver switched off: ? 25 ?A
Adjacent channel rejection	? 65 dB
Intermodulation attenuation	? 65 dB
Powering	3 V battery / 2.4 V rechargeable battery
Receiving frequency	Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
RF sensitivity	< 1.6 ?V for 52 dBA eff S/N
Squelch	low: 5 dB?V middle: 15 dB?V high: 25 dB?V
Temperature Range	-10 ?C to +55 ?C
Receiver Principle	Adaptive diversity
Blocking	? 70 dB
SKP 500 G4
Dimensions	Approx. 105 x 43 x 43 mm
Compander	Sennheiser HDX
THD, total harmonic distortion	? 0.9 %
Weight	(incl. batteries) approx. 195 g
Signal-to-noise ratio	? 120 dBA
RF output power	switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth	up to 88 MHz
Peak deviation	?48 kHz
Nominal deviation	?24 kHz
Operating time	Typically 8 h
Modulation	Wideband FM
Power supply	2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption	at nominal voltage: typ. 210 mA with transmitter switched off: ? 25 ?A
Input impedance	68 k?, unbalanced
Max. Input voltage	6 Veff
Powering	3 V battery / 2.4 V rechargeable battery
Transmission frequency	Max. 3520 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
AF frequency response	80 ? 18,000, Hz
Temperature Range	-10 ?C to +55 ?C
Frequency stability	? ?15 ppm

Click to rate this post!

[Total: 0 Average: 0]

In The Box

EK 500 G4 camera receiver
SKP 500 G4 pro plug-on transmitter
4 AA batteries
CL 1 3.5 mm jack cable
CL 500 XLR to 3.5 mm jack adapter cable
CA 2 camera adapter
quick guide
safety guide
manufacturer declaration sheet
