Home » Shop » Audio » Wireless Audio System » Systems » Sennheiser EW 500 FILM G4 Wireless Combo System Kit with MKE2 Lavalier Microphone
Sennheiser EW 500 BOOM G4
Sennheiser EW 500 BOOM G4 Sound Plug-On Wireless Set SGD 1,324.79 excl. Tax
Back to products
Sennheiser EK 100 G4
Sennheiser EK 100 G4 Camera Portable Wireless Receiver SGD 502.79 – SGD 513.75 excl. Tax excl. Tax

Sennheiser EW 500 FILM G4 Wireless Combo System Kit with MKE2 Lavalier Microphone

SGD 1,901.56 excl. Tax

Weight N/A
Choose Product Variant

EW 500 FILM G4-Aw+ (470 – 558 MHz), EW 500 FILM G4-Bw (626 – 698 MHz), EW 500 FILM G4-Cw (718 – 790 MHz), EW 500 FILM G4-Dw (790 – 865 MHz), EW 500 FILM G4-Gw (558 – 626 MHz), EW 500 FILM G4-GBw

Sennheiser
Clear
SKU: N/A Category: Systems
Share:
  • Description
  • Specifications
  • In The Box
  • Delivery Info
  • Reviews (2)
Description
Our Score
Click to rate this post!
[Total: 0 Average: 0]

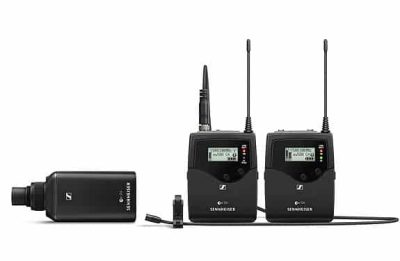

Sennheiser EW 500 FILM G4 Wireless Combo System Kit with MKE2 Lavalier Microphone

Sennheiser EW 500 FILM G4 professional’s choice for broadcast quality sound. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers the ultimate sound quality, simple mounting, and ease of use.

Covers all sorts of applications on the set: The 48V phantom-power equipped SKP 500 turns all wired mics into a wireless transmitter, and the MKE 2 Gold is a state-of-the-art professional clip-on microphone offering the highest speech intelligibility.

Specifications
Our Score
Click to rate this post!
[Total: 0 Average: 0]
EK 500 G4
Frequency range
AW+ : 470-558 MHz
Gw : 558-626 MHz
Bw : 626-698 MHz
Cw : 718-790 MHz
Dw : 790-865 MHz
GBw : 606-678 MHz
Dimensions
Approx. 82 x 64 x 24 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
? 0.9 %
Weight
Approx. 130 g
Audio output
3.5 mm jack socket: +17 dBu (mono, unbalanced)
Signal-to-noise ratio
Line: ? 110 dBA, Phones: approx. 90 dBA
Switching bandwidth
up to 88 MHz
Peak deviation
?48 kHz
Nominal deviation
?24 kHz
Modulation
Wideband FM
Operating Time
Typically 8h
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 140 mA
with receiver switched off: ? 25 ?A
Adjacent channel rejection
? 65 dB
Intermodulation attenuation
? 65 dB
Powering
3 V battery / 2.4 V rechargeable battery
Receiving frequency
Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
RF sensitivity
< 1.6 ?V for 52 dBA eff S/N
Squelch
low: 5 dB?V middle: 15 dB?V high: 25 dB?V
Temperature Range
-10 ?C to +55 ?C
Receiver Principle
Adaptive diversity
Blocking
? 70 dB
SKP 500 G4
Dimensions
Approx. 105 x 43 x 43 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
? 0.9 %
Weight
(incl. batteries) approx. 195 g
Signal-to-noise ratio
? 120 dBA
RF output power
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth
up to 88 MHz
Peak deviation
?48 kHz
Nominal deviation
?24 kHz
Operating time
Typically 8 h
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 210 mA
with transmitter switched off: ? 25 ?A
Input impedance
68 k?, unbalanced
Max. Input voltage
6 Veff
Powering
3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 3520 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
AF frequency response
80 ? 18,000, Hz
Temperature Range
-10 ?C to +55 ?C
Frequency stability
? ?15 ppm
SK 500 G4
Dimensions
Approx. 82 x 64 x 24 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
? 0.9 %
Weight
(incl. batteries) approx. 160 g
Signal-to-noise ratio
? 115 dBA
RF output power
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth
up to 88 MHz
Peak deviation
?48 kHz
Nominal deviation
?24 kHz
Operating time
Typically 8 h
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 180 mA
with transmitter switched off: ? 25 ?A
Input impedance
40 k?, unbalanced / 1 M?
Max. Input voltage
3 Veff
Powering
3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
AF frequency response
Mic: 80 ? 18,000, Hz Line: 25 ? 18,000 Hz
Temperature Range
-10 ?C to +55 ?C
Frequency stability
? ?15 ppm
MKE 2
Connector
3.5 mm jack
Frequency response
20 to 20.000 Hz ? 3 dB
Max. sound pressure level
142 dB
Cable length
approx. 1.60 m
Transducer principle
pre-polarized condensor microphone
Pick-up pattern
omni-directional
Sensitivity in free field, no load (1kHz)
5 mV/Pa, ? 3 dB
Equivalent noise level
26 dB
Equivalent noise level weighted as per CCIR 468-3
39 dB
In The Box
Our Score
Click to rate this post!
[Total: 0 Average: 0]
  • EK 500 G4 camera receiver
  • SK 500 G4 bodypack transmitter
  • SKP 500 G4 pro plug-on transmitter
  • MKE 2 clip-on microphone
  • 4 AA batteries
  • CL 1 3.5 mm jack cable
  • CL 500 XLR to 3.5 mm jack adapter cable
  • CA 2 camera adapter
  • fur windscreen for MKE 2
  • quick guide
  • safety guide
  • manufacturer declaration sheet
