SGD 5,478.63 excl. Tax
| Weight | 5 kg |
|---|
Available on backorder

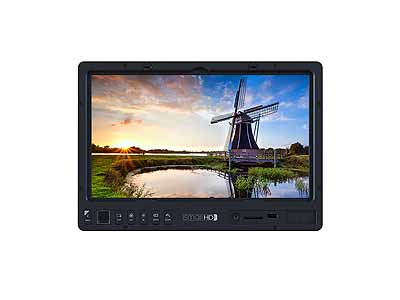

The display size, resolution, and pixel density of the SmallHD 1303 HDR production monitor make it an invaluable tool for precision focus pulling. When you don’t have the time or proper measurements, a razor-sharp, low latency display will help you hit your marks.
|
Display
|
|
|---|---|
|
Panel Type
|
IPS
|
|
Size Diagonal
|
13
|
|
Resolution
|
1920×1080
|
|
Pixel Density (PPI)
|
170 PPI
|
|
Aspect Ratio
|
16:9
|
|
Active Area
|
11.59″ x 6.52″
|
|
Brightness
|
1500 nits
|
|
Contrast
|
1140:1
|
|
Color Gamut
|
100% Rec.709
|
|
Color Depth
|
10 bit
|
|
Viewing Angle
|
178 Deg.
|
|
Backlight Type
|
LED
|
|
Adjustable Backlight
|
Yes
|
|
Temperature Adaptive Color
|
No
|
|
Input Signal Types/Formats
|
|
|
3G-SDI
|
YCC 4:2:2 @ 10 bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
|
|
HD-SDI
|
YCC 4:2:2 @ 10 bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
|
|
SD-SDI
|
480i29.97, 576i25
|
|
HDMI
|
Supports YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50
|
|
Component
|
Not Supported
|
|
Composite
|
Not Supported
|
|
Audio
|
HDMI & SDI Monitor through Speakers in Front Bezel or through Headphone Jack Metering up to 8 channels
|
|
Output Signal Types/Formats
|
|
|
3G-SDI
|
YCC 4:2:2 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88,
|
|
HD-SDI
|
YCC 4:2:2 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 all at 8 bits
|
|
SD-SDI
|
Not Supported
|
|
HDMI
|
Supports YCC 4:2:2@ 8 bits, RGB & YCC 4:4:4 @ 8 bits: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i120, 480i119.88, 480i60, 480i59.94, 576i100, 576i50
|
|
Component
|
Not Supported
|
|
Composite
|
Not Supported
|
|
Audio
|
Audio sent downstream unless a LUT is loaded on the output page which disables Audio out.
|
|
Connector Type
|
|
|
SDI
|
2x 3G Inputs, 2x 3G Outputs
|
|
HDMI
|
1x Input, 1x Output
|
|
Component
|
Not Supported
|
|
Composite
|
Not Supported
|
|
Audio
|
1x Headphone Jack on Front of Monitor
|
|
Power In
|
1x XLR 4-pin Input 12-34VDC, 1x Lemo Output 12VDC @ 4A Max
|
|
Power Out
|
1x XLR 4-pin Input 12-34VDC, 1x Lemo Output 12VDC @ 4A Max
|
|
USB
|
1x Front USB2, 2x Rear USB2
|
|
Controls
|
|
|
Primary Control Interface
|
Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: Image Capture; LUT Selection; Backlight Level; Input Selection; Scopes Toggle.
|
|
Record/Capture
|
Dedicated Image Capture Button on Front Bezel
|
|
Data I/O
|
|
|
Storage
|
SD Card for LUTs, Captured Images, Image Overlays, Profile Saving & Loading, Firmware Upgrades
|
|
USB
|
1 Front & 2 Rear USB Ports for power (1.5A shared total), LUT Loading, Profile Saving & Loading
|
|
Power
|
|
|
Connector Type
|
1x XLR 4-pin 12 – 34VDC IN; 12V Lemo 2-pin OUT 4A Max
|
|
Voltage
|
12 – 34VDC
|
|
Power Consumption
|
25 – 39W
|
|
Recommended Power Supply
|
AC – DC Power Converter Brick Included with Monitor 110 – 240VAC 50 – 60 HZ INPUT; 15V – 6A OUTPUT
|
|
Battery Types
|
Gold Mount / V-Mount via 4-pin XLR Connector
|
|
Output Voltage (VDC)
|
12V, 2A max via LEMO Connector
|
|
Environmental
|
|
|
Compliance
|
FCC, IC, CE, RoHS
|
|
Operating Temperature
|
32F – 100F
|
|
Storage Temperature
|
33F – 115F
|
|
Screen Protection
|
Acrylic or Anti-Reflective Acrylic screen protetor available as an option
|
|
Height
|
9″ (22.86cm)
|
|
Width
|
13″ (33.02cm)
|
|
Depth/Length
|
2.88″ (7.32cm)
|
|
Weight (Item Only without battery)
|
128oz (3628.74g)
|
|
Weight (Packaged)
|
12.5lb (5.67kg)
|
|
Mount Points
|

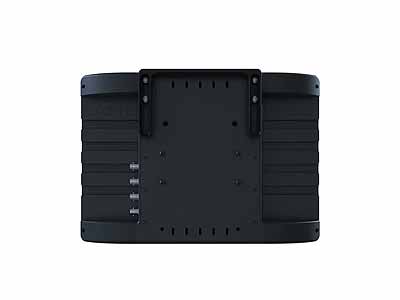

Top, Left & Right sides; RapidRail – Cold Shoe style rails on rear of monitor
|
|
Software
|
|
|
Pixel Zoom (type)
|
2x & 4x with smooth pan via pinch zoom gesture
|
|
Frame Guides
|
Preset Aspect Ratios & Customizable
|
|
DSLR Scale
|
Canon 5DMkii & Canon 7D
|
|
Custom Scale
|
Underscan Only
|
|
Anamorphic De-Squeeze
|
1.33x, 1.5x, 1.66x, 2.0x
|
|
Image Rotate(Manual/Automatic)
|
Automatic or Manual Control
|
|
Image Flip (Manual/Automatic)
|
Automatic or Manual Control
|
|
Cross Conversion
|
Yes: HDMI – SDI & SDI – HDMI
|
|
Focus Assist (Colors)
|
User Adjustable Color Style and Intensity
|
|
Peaking
|
User Adjustable Intensity
|
|
False Color
|
Spectrum, Arri Style and Fully User Customizable
|
|
Zebra
|
Dual – User Configurable
|
|
Waveform
|
Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
|
|
Vectorscope
|
Yes
|
|
PIP
|
No
|
|
RGB Parade
|
Fully User Customizable
|
|
Histogram
|
Luma & RGB Style
|
|
Horizon Indicator
|
No
|
|
Image Capture
|
With Dedicated Button and Image Gallery
|
|
Custom LUTS
|
Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
|
|
LUT Creation
|
No
|
|
LUT Downstream
|
Applied on Output Preview Page
|
|
LUT Import
|
Via SD Card or USB Storage Device
|
|
Image Overlay
|
Opacity Slider and Blink Setting
|
|
Blue Only
|
No
|
|
Audio Meters
|
Up to 8 channel
|
