SmallHD 1303 HDR V-Mount Kit Full HD 13-inch LCD Monitor with 1500 NITs Brightness

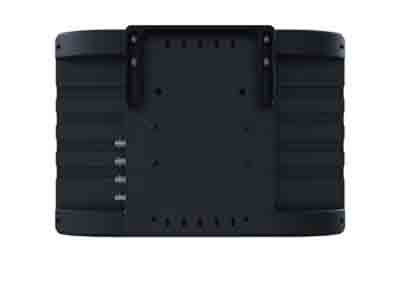

SmallHD 1303 HDR V-Mount Kit Enjoy daylight visibility and all its favorite accessories with this V-Mount kit.

Clarity that produces certainty.

SmallHD 1303 HDR V-Mount Kit display size, resolution, and pixel density of the 1303 production monitor make it an invaluable tool for precision focus pulling. When you don’t have the time or proper measurements, a razor-sharp, low latency display will help you hit your marks.

Calibrated for collaboration.

Preview what you’re sending downstream using the Output Preview Page, while utilizing software features like customizable focus assist and peaking on your 1303 monitor. If it’s the only monitor near by, its color accuracy (100% REC 709) and broad viewing angle make it easy to share with clients and directors.

Can you see me now? Good.

SmallHD 1303 HDR V-Mount Kit With a panel roughly 3x brighter than most production monitors, the 1303 is not restrained by ambient light. Its optically bonded LCD combats glare and sunlight, allowing you to pull focus in less than ideal shooting environments.

Proper power options.

Power options for the 1303 monitor are simple and convenient. The 2-pin LEMO out allows for a seamless integration with accessories such as the Teradek Bolt wireless receiver.

Travel made easy: carry-on accessories.

All SmallHD® production monitors are equipped with the Rapid Rail Mounting System; the simplest way to connect, store, and travel with critical monitor accessories.

Smooth is fast.

Transitioning from table to C-Stand happens safely and securely with the 1303’s VESA compatible mounting accessory.

Boldly go.

The 1303 monitor is the perfect blend of functionality and portability. With a razor-sharp display and a rugged build quality, the 1303 will boldly go where no other production monitor has ever gone before.

Specifications

Display
Panel Type	IPS
Size Diagonal	13
Resolution	1920×1080
Pixel Density (PPI)	170 PPI
Aspect Ratio	16:9
Active Area	11.59” x 6.52”
Brightness	1500 nits
Contrast	1140:1
Color Gamut	100% Rec.709
Color Depth	10 bit
Viewing Angle	178 Deg.
Backlight Type	LED
Adjustable Backlight	Yes
Temperature Adaptive Color	No
Input Signal Types/Formats
3G-SDI	YCC 4:2:2 @ 10 bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI	YCC 4:2:2 @ 10 bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI	480i29.97, 576i25
HDMI	Supports YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50
Component	Not Supported
Composite	Not Supported
Audio	HDMI & SDI Monitor through Speakers in Front Bezel or through Headphone Jack Metering up to 8 channels
Output Signal Types/Formats
3G-SDI	YCC 4:2:2 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88,
HD-SDI	YCC 4:2:2 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 all at 8 bits
SD-SDI	Not Supported
HDMI	Supports YCC 4:2:2@ 8 bits, RGB & YCC 4:4:4 @ 8 bits: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i120, 480i119.88, 480i60, 480i59.94, 576i100, 576i50
Component	Not Supported
Composite	Not Supported
Audio	Audio sent downstream unless a LUT is loaded on the output page which disables Audio out.
Connector Type
SDI	2x 3G Inputs, 2x 3G Outputs
HDMI	1x Input, 1x Output
Component	Not Supported
Composite	Not Supported
Audio	1x Headphone Jack on Front of Monitor
Power In	1x XLR 4pin Input 12-34VDC, 1x Lemo Output 12VDC @ 4A Max
Power Out	1x XLR 4pin Input 12-34VDC, 1x Lemo Output 12VDC @ 4A Max
USB	1x Front USB2, 2x Rear USB2
Controls
Primary Control Interface	Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: Image Capture; LUT Selection; Backlight Level; Input Selection; Scopes Toggle.
Record/Capture	Dedicated Image Capture Button on Front Bezel
Data I/O
Storage	SD Card for LUTs, Captured Images, Image Overlays, Profile Saving & Loading, Firmware Upgrades
USB	1 Front & 2 Rear USB Ports for power (1.5A shared total), LUT Loading, Profile Saving & Loading
Power
Connector Type	1x XLR 4-pin 12 – 34VDC IN; 12V Lemo 2-pin OUT 4A Max
Voltage	12 – 34VDC
Power Consumption	25 – 39W
Recommended Power Supply	AC – DC Power Converter “Brick” Included with Monitor 110 – 240VAC 50 – 60 HZ INPUT; 15V – 6A OUTPUT
Battery Types	Gold Mount / VMount via 4pin XLR Connector
Output Voltage (VDC)	12V, 2A max via LEMO Connector
Environmental
Compliance	FCC, IC, CE, RoHS
Operating Temperature	32F - 100F
Storage Temperature	33F – 115F
Screen Protection	Acrylic or Anti-Reflective Acrylic screen protetor available as an option
Height	9" (22.86cm)
Width	13" (33.02cm)
Depth/Length	2.88" (7.32cm)
Weight (Item Only without battery)	128oz (3628.74g)
Weight (Packaged)	12.5lb (5.67kg)
Mount Points	2x ¼”-20 on Top, Left & Right sides; RapidRail – Cold Shoe style rails on rear of monitor
Software
Pixel Zoom (type)	2x & 4x with smooth pan via pinch zoom gesture
Frame Guides	Preset Aspect Ratios & Customizable
DSLR Scale	Canon 5DMkii & Canon 7D
Custom Scale	Underscan Only
Anamorphic De-Squeeze	1.33x, 1.5x, 1.66x, 2.0x
Image Rotate(Manual/Automatic)	Automatic or Manual Control
Image Flip (Manual/Automatic)	Automatic or Manual Control
Cross Conversion	Yes: HDMI → SDI & SDI → HDMI
Focus Assist (Colors)	User Adjustable Color Style and Intensity
Peaking	User Adjustable Intensity
False Color	Spectrum, Arri Style and Fully User Customizable
Zebra	Dual – User Configurable
Waveform	Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope	Yes
PIP	No
RGB Parade	Fully User Customizable
Histogram	Luma & RGB Style
Horizon Indicator	No
Image Capture	With Dedicated Button and Image Gallery
Custom LUTS	Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Creation	No
LUT Downstream	Applied on Output Preview Page
LUT Import	Via SD Card or USB Storage Device
Image Overlay	Opacity Slider and Blink Setting
Blue Only	No
Audio Meters	Up to 8 channel

In the Box

1303 HDR Production Monitor
V-Mount Power Kit + Cheese Plate
C-Stand mount for 1300 series
1300 Series Sunhood
1300 Series Screen Impact Protector
Ultra Matte sreen protector for 1300 Series Production Monitors
RapidRail Mount
12-inch Thin SDI Cable
24-inch Thin SDI Cable
48-inch Thin SDI Cable
