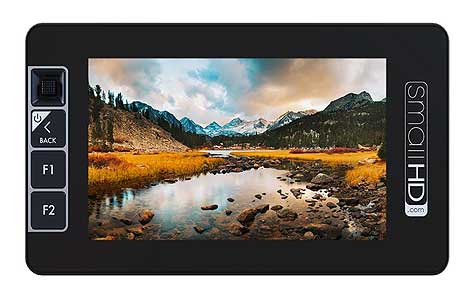

SmallHD MON-503U
Click to enlarge
Home » Shop » Video » Video Monitor » Wireless Field Monitors » SmallHD 503 UltraBright On-Camera Monitor 1920×1080 display resolution
SmallHD MON-CINE-24
SmallHD MON-CINE-24 24-inch Cine 4K High-Bright Monitor SGD 9,588.63 excl. Tax
Back to products
Atomos Ninja V+ Switch & Stream Kit includes Ninja V+ w/ AtomX Cast Module SGD 1,138.47 excl. Tax

SmallHD 503 UltraBright On-Camera Monitor 1920×1080 display resolution

SmallHD
SKU: MON-503U Category: Wireless Field Monitors

This model has been discontinued

  • Description
  • Specifications
  • Delivery Info
  • Reviews (0)
Description
Our Score
Click to rate this post!
[Total: 0 Average: 0]

SmallHD 503 UltraBright On-Camera Monitor 1920×1080 display resolution

SmallHD 503 UltraBright Monitor feature HDR Preview with 10-Bit Color Engine and up to 2500 nits. Fine tune your HDR Preview with white point and black point adjustment sliders. Load any 3D LUT via SD card using SmallHD’s Color-Flow 3D LUT engine.

The SmallHD 503 and 703 Ultra-Bright are the Brightest 5″ and 7″ monitors in the world while maintaining low power consumption. In addition to LEMO power, Gold Mount, V-Mount and Sony L-Series battery plates are available.

Page builder OS enables you to send your video signal downstream via the Output Preview page. Any LUTs applied to the Output Preview page will also be mirrored downstream. Easily convert HDMI/SDI signals with Cross Conversion .
Display up to three, fully customizable Scopes on screen at a time. Utilize Color Picker to show raw pixel values from the displayed video.

SmallHD 503 UltraBright Exposure Assist supports both ARRI and Spectrum based false color, with built in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.

Monitor two input sources simultaneously. You can apply LUT’s and tools to each source individually. Great for monitoring A/B cameras or pre and post LUT footage. You can also apply tools to each page individually.

Focus assist creates a bright highlight on in-focus subject matter; highly recommended when focusing on the fly. Focus Peaking increases the image sharpness allowing more detailed focusing. Change your color and intensity of your focus tools.

SmallHD 503 UltraBright Select standard markers and safety areas that can be overlaid on the display as lines or matte overlays with custom opacity level and colors. Default aspect ratios include 4:3, 1.85, 2.39:1, 16:9 and Custom (user selectable).

Specifications
Our Score
Click to rate this post!
[Total: 0 Average: 0]
Display
Panel Type
IPS LCD
Size Diagonal
5
Resolution
1920 x 1080
Pixel Density (PPI)
443 ppi
Aspect Ratio
16:9
Active Area
4.9
Brightness
2200 nits
Contrast
1000:1
Color Gamut
100% Rec 709
Color Depth
10-Bit Color Intelligence Engine
Viewing Angle
170 degrees Typical
Backlight Type
White LED
Adjustable Backlight
Yes
Viewfinder (EVF)
Variable Field of View
range
Input Signal Types/Formats
3G-SDI
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI
YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
HDMI
YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio
HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Output Signal Types/Formats
3G-SDI
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI
YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
HDMI
YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60,720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio
HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection
Connector Type
SDI
1x 3g Input, 1x 3g Output
HDMI
1x Input, 1x Output
Component
Not Supported
Composite
Not Supported
Audio
1x ?? Headphone Jack
Power In
1x Locking LEMO 2-pin Connector
USB
1x Micro USB
Controls
Primary Control Interface
Joystick Navigation, Dedicated Back/Power Button. 2 Additional User Assignable Function Buttons
Data I/O
Storage
SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving.
USB
USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving
Power
Connector Type
1x Locking LEMO 2-pin Connectors: for Power Input
Voltage
With DV Battery Plate: 6.0 – 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 – 34V 14.4V Nominal With Lemo Input: 12 – 34V Max
Power Consumption
11 watts
Recommended Power Supply
Included
Overload Protection
Yes
Environmental
Compliance
FCC, IC, CE, RoHS
Operating Temperature
0 – 100 degrees F
Storage Temperature
-4 – 120 degrees F
Screen Protection
AR Coated Gorilla Glass Optical Bonding on Panel
Height
3.36″ (8.53cm)
Width
6.16″ (15.65cm)
Depth/Length
1.13″ (2.87cm)
Weight (Item Only without battery)
15.2oz (430.91g)
Weight (Packaged)
38oz (1077.28g)
Mount Points
1 ??-20 Thread on Top of Monitor, 1x ??-20 Thread on Bottom of Monitor, 1x ??-20 Thread on back of Monitor @ Bottom Center
