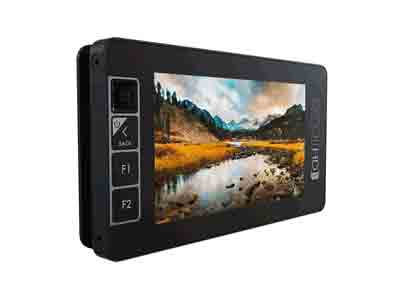

SmallHD 503 UltraBright Sony L Kit 1080p 5-inch LCD Monitor

In stock

  • UltraBright 2200 nit brightness
  • SDI + HDMI in/out
  • 1920 x 1080 display resolution
  • 5-inch screen diagonal
  • Scopes, Focus Assist, Pixel Zoom
SKU: MON-503U-SONY-KIT Category:

SmallHD 503 UltraBright Sony L Kit 1080p 5-inch LCD Monitor

SmallHD 503 UltraBright Sony L Kit Brightest 5-inch monitor available with HDR Preview, Waveform, 3D LUT support and 12v Lemo power + Sony L battery bracket.

PageBuilder OS

PageBuilder OS: Quick and easy way to access professional software tools like Focus Peaking, HD Waveform, and 3D LUTs.

SmallHD 503 UltraBright Sony L Kit HDR Preview and 3D LUT Support

UltraBright monitors feature HDR Preview with 10-Bit ColorEngine and up to 2500 nits. Fine tune your HDR Preview with white point and black point adjustment sliders. Load any 3D LUT via SD card using SmallHD’s ColorFlow 3D LUT engine.

Efficiently UltraBright

The 503 and 703 UltraBright are the Brightest 5″ and 7″ monitors in the world while maintaining low power consumption. In addition to LEMO power, Gold Mount, V-Mount and Sony L-Series battery plates are available.

Software That Eliminates Hardware

Pagebuilder OS enables you to send your video signal downstream via the Output Preview page. Any LUTs applied to the Output Preview page will also be mirrored downstream. Easily convert HDMI/SDI signals with Cross Conversion .

HD Scopes with Pixel Accurate Data Analysis

Display up to three, fully customizable Scopes on screen at a time. Utilize Color Picker to show raw pixel values from the displayed video.

SmallHD 503 UltraBright Sony L Kit Expose with Confidence

Exposure Assist supports both ARRI and Spectrum based false color, with built in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.

Dual View

Monitor two input sources simultaneously. You can apply LUT’s and tools to each source individually. Great for monitoring A/B cameras or pre and post LUT footage. You can also apply tools to each page individually.

  • Durability
  • Rugged milled aluminum housing
  • ⅛in. headphone jack
  • Function buttons
  • 12v 2-pin LEMO in
  • SD Card Slot
  • Cross Conversion
  • HDR Preview
Display
Panel Type IPS LCD
Size Diagonal 5
Resolution 1920 x 1080
Pixel Density (PPI) 443 ppi
Aspect Ratio 16:9
Active Area 4.9
Brightness 2200 nits
Contrast 1000:1
Color Gamut 100% Rec 709
Color Depth 10-Bit Color Intelligence Engine
Viewing Angle 170 degrees Typical
Backlight Type White LED
Adjustable Backlight Yes
Viewfinder (EVF)
Variable Field of View range
Input Signal Types/Formats
3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
HDMI YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Output Signal Types/Formats
3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
HDMI YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60,720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection
Connector Type
SDI 1x 3g Input, 1x 3g Output
HDMI 1x Input, 1x Output
Component Not Supported
Composite Not Supported
Audio 1x ⅛” Headphone Jack
Power In 1x Locking LEMO 2-pin Connector
USB 1x Micro USB
Controls
Primary Control Interface Joystick Navigation, Dedicated Back/Power Button. 2 Additional User Assignable Function Buttons
Data I/O
Storage SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving.
USB USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving
Power
Connector Type 1x Locking LEMO 2-pin Connectors: for Power Input
Voltage With DV Battery Plate: 6.0 – 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 – 34V 14.4V Nominal With Lemo Input: 12 – 34V Max
Power Consumption 11 watts
Recommended Power Supply Included
Overload Protection Yes
Environmental
Compliance FCC, IC, CE, RoHS
Operating Temperature 0 – 100 degrees F
Storage Temperature -4 – 120 degrees F
Screen Protection AR Coated Gorilla Glass Optical Bonding on Panel
Height 3.36" (8.53cm)
Width 6.16" (15.65cm)
Depth/Length 1.13" (2.87cm)
Weight (Item Only without battery) 15.2oz (430.91g)
Weight (Packaged) 38oz (1077.28g)
Mount Points 1 ¼”-20 Thread on Top of Monitor, 1x ¼”-20 Thread on Bottom of Monitor, 1x ¼”-20 Thread on back of Monitor @ Bottom Center
Software
Pixel Zoom (type) 2x & 4x with smooth pan via pinch zoom gesture
Frame Guides Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Underscan Only
Anamorphic De-Squeeze 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate(Manual/Automatic) Automatic or Manual Control
Image Flip (Manual/Automatic) Automatic or Manual Control
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist (Colors) User Adjustable Color Style and Intensity
Peaking User Adjustable Intensity
False Color Spectrum, Arri Style and Fully User Customizable
Zebra Dual – User Configurable
Waveform Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope Yes
PIP No
RGB Parade Fully User Customizable
Histogram Luma & RGB Style
Horizon Indicator No
Image Capture With Dedicated Button and Image Gallery
Custom LUTS Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Creation No
LUT Downstream Applied on Output Preview Page
LUT Import Via SD Card or USB Storage Device
Image Overlay Opacity Slider and Blink Setting
Blue Only No
Audio Meters Up to 8 channel
  • 503 UltraBright On-Camera Monitor
  • Sony L Series Battery Bracket for UltraBright Series
  • Sunhood Cage combo for 503 Ultrabright
  • Neoprene Sleve for 6-7 inch monitors
  • Ultra Matte Screen Protector
  • LEMO to Bare Wire
  • 12-inch thin SDI Cable
  • 24-inch thin SDI Cable
  • 48-inch thin SDI Cable
