SmallHD 703 UltraBright V-Mount Directors Kit 1080p 7-inch LCD Monitor

In stock

  • UltraBright 2200 nit brightness
  • SDI + HDMI in/out
  • 1920 x 1080 display resolution
  • 7-inch screen diagonal
  • Scopes, Focus Assist, Pixel Zoom
SKU: MON-703U-VM-DK Category:

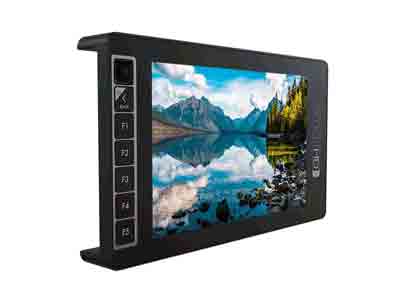

SmallHD 703 UltraBright V-Mount Directors Kit 7-inch LCD Monitor with 2200 nits Brightness

SmallHD 703 UltraBright V-Mount Directors Kit Brightest 7-inch monitor available with V-Mount battery plate and lightweight monitor handles.

HDR Preview and 3D LUT Support

UltraBright monitors feature HDR Preview with 10-Bit ColorEngine and up to 2500 nits. Fine tune your HDR Preview with white point and black point adjustment sliders. Load any 3D LUT via SD card using SmallHD’s ColorFlow 3D LUT engine.

SmallHD 703 UltraBright V-Mount Directors Kit Efficiently UltraBright

The 503 and 703 UltraBright are the Brightest 5″ and 7″ monitors in the world while maintaining low power consumption. In addition to LEMO power, Gold Mount, V-Mount and Sony L-Series battery plates are available.

Software That Eliminates Hardware

Page-builder OS enables you to send your video signal downstream via the Output Preview page. Any LUTs applied to the Output Preview page will also be mirrored downstream. Easily convert HDMI/SDI signals with Cross Conversion .

Expose with Confidence

Exposure Assist supports both ARRI and Spectrum based false color, with built in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras

Dual View

Monitor two input sources simultaneously. You can apply LUT’s and tools to each source individually. Great for monitoring A/B cameras or pre and post LUT footage. You can also apply tools to each page individually.

Custom Focus Assist & Peaking Tools

Focus assist creates a bright highlight on in-focus subject matter; highly recommended when focusing on the fly. Focus Peaking increases the image sharpness allowing more detailed focusing. Change your color and intensity of your focus tools.

Versatile Image Framing

Select standard markers and safety areas that can be overlaid on the display as lines or matte overlays with custom opacity level and colors. Default aspect ratios include 4:3, 1.85, 2.39:1, 16:9 and Custom (user selectable).

  • Durability
  • Rugged milled aluminum housing
  • ⅛in. headphone jack
  • Function buttons
  • 12v 2-pin LEMO in/out
  • SD Card Slot
  • Cross Conversion
  • HDR Preview
Display
Panel Type LTPS LCD
Size Diagonal 7.02
Resolution 1920 x 1080
Pixel Density (PPI) 323 ppi
Aspect Ratio 16:9
Active Area 7.02
Brightness 2200 nits
Contrast 1200:1
Color Gamut 100% Rec 709
Color Depth 10-Bit Color Intelligence Engine
Viewing Angle 178 Degrees (CR<10)
Backlight Type White LED
Adjustable Backlight Yes
Input Signal Types/Formats
3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
HDMI YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Output Signal Types/Formats
3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
HDMI YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection
Connector Type
SDI 1x 3g Input, 1x 3g Output
HDMI 1x Input, 1x Output
Component Not Supported
Composite Not Supported
Audio 1x ⅛” Headphone Jack
Power In 2x Locking LEMO 2-pin Connectors: 1 for Power Input, 1 for Power distribution to an external device (Requires Power Input)
USB 1x Micro USB
Controls
Primary Control Interface Joystick Navigation, Dedicated Back/Power Button. 5 Additional User Assignable Function Buttons
Data I/O
Storage SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving.
USB USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving.
Power
Connector Type 2x Locking LEMO 2-pin Connectors: 1 for Power Input, 1 for Power distribution to an external device (Requires Power Input)
Voltage With DV Battery Plate: 6.0 – 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 – 34V 14.4V Nominal With Lemo Input: 12 – 34V Max
Power Consumption TBD
Recommended Power Supply Included
Overload Protection Yes
Output Voltage (VDC) Mirrors Input Voltage
Environmental
Compliance FCC, IC, CE, RoHS
Operating Temperature 0 – 100 degrees F
Storage Temperature -4 – 120 degrees F
Screen Protection AR Coated Gorilla Glass Optical Bonding on Panel
Height 4.88" (12.40cm)
Width 8.38" (21.29cm)
Depth/Length 1.13" (2.87cm)
Weight (Item Only without battery) 26.4oz (748.43g)
Weight (Packaged) 37oz (1048.93g)
Mount Points 1 ¼”-20 Thread on Top of Monitor, 1x ¼”-20 Thread on Bottom of Monitor
Software
Pixel Zoom (type) 2x & 4x with smooth pan via pinch zoom gesture
Frame Guides Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Underscan Only
Anamorphic De-Squeeze 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate(Manual/Automatic) Automatic or Manual Control
Image Flip (Manual/Automatic) Automatic or Manual Control
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist (Colors) User Adjustable Color Style and Intensity
Peaking User Adjustable Intensity
False Color Spectrum, Arri Style and Fully User Customizable
Zebra Dual – User Configurable
Waveform Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope Yes
PIP No
RGB Parade Fully User Customizable
Histogram Luma & RGB Style
Horizon Indicator No
Image Capture With Dedicated Button and Image Gallery
Custom LUTS Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Creation No
LUT Downstream Applied on Output Preview Page
LUT Import Via SD Card or USB Storage Device
Image Overlay Opacity Slider and Blink Setting
Blue Only No
Audio Meters Up to 8 channel

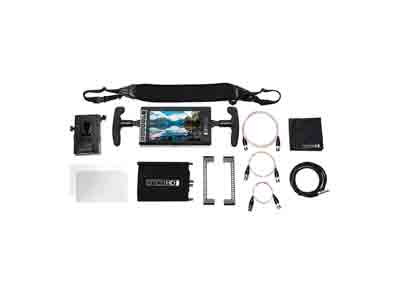

  • SmallHD 703 UltraBright Monitor
  • Neck Strap and Lightweight Monitor handles
  • V-Mount Battery Bracket
  • Sunhood Cage Combo for 703
  • Clear Screen Protector for 703
  • Ultra Matte Screen Protector for 703
  • Lemo to Bare Wire Cable
  • 30cm Thin SDI Cable
  • 61cm Thin SDI Cable
  • 120cm Thin SDI Cable
  • SmallHD Cleaning Cloth
