SKU |
SKU |
MON-INDIE-7 |
Product ID |
Product ID |
5182721785989 |
Environmental |
Item Weight (oz) |
18.9
|
Package Weight (oz) |
26 |
Height (in) |
4.67
|
Width (in) |
1.32 |
Length/Depth (in)
|
7.09 |
Compliance
|
FCC, IC, CE, RoHS |
Operating Temperature
|
30F to 100F |
Storage Temperature
|
0F to 120F |
Mount Points
|
Four ¼-20 Mount Points (Left, Right, Bottom, and Back) |
Construction
|
Anodized aluminum chassis |
Display |
Panel Type
|
IPS LCD Touchscreen |
Diagonal Size
|
7.02 |
Resolution
|
1920×1200 |
Pixel Density |
323 |
Aspect Ratio |
16:09 |
Active Area |
5.95 x 3.72 |
Brightness |
1000 Nits |
Contrast |
1000:01:00 |
Gamut |
100% rec709 |
Color Depth |
10-bit Processing (8-bit panel) |
Viewing Angle |
160 |
Backlight Type |
LED |
Adjustable Backlight |
Yes |
Brightness |
1000 Nits |
DCI-P3 Color |
100% rec709 |
Input Signal |
3G-SDI Input Types |
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 |
HD-SDI Input Types |
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
SD-SDI Input Types |
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50 |
HDMI Input Types |
YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840×2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50 |
Audio Input Types |
HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels |
Output Signal |
3G-SDI Output Types |
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 |
HD-SDI Output Types |
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
SD-SDI Output Types |
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50 |
HDMI Output Types |
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 |
Audio Output Types |
HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection |
Connector Type |
SDI |
1x BNC 3G input and 1x BNC 3G selectable input/output |
HDMI |
1 input and 1 output: HDMI Type-D Receptacles (full size) |
Audio |
1x 3.5mm 3-pin Stereo Headphone Jack |
Power In |
Barrel, 2.0mm ID, 5.5mm OD (center pin positive) |
USB |
1x USB 2.0 Micro-B receptacle |
Controls |
Primary |
Touch Screen |
Record Capture |
Image Capture Tool |
Power |
Connector |
Barrel, 2.0mm ID, 5.5mm OD (center pin positive) |
Voltage |
DC in – 10V minimum to 34V maximum, Battery terminals – 6.0V minimum to 16.8V max |
Consumption |
17.3 watts (2160p30, 100% bright, tools enabled), (2.4A @7.2V battery, 1.4A @12V barrel, 0.7A at 24V barrel) |

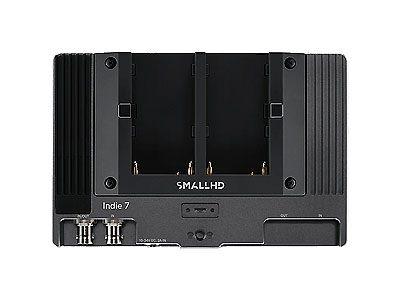

Battery Plate Included |
L-Series standard (V Mount or Gold Mount optional accessories) |
Power Supply |
Recommend DC 12~15V at ~2.5 amp or greater |
Battery Types |
L-Series, V Mount, Gold Mount |
Overload Protection |
DC input: Reverse polarity |
Battery Chemistry |
Li-ion |
Battery Charging Time |
Monitor does not support the charging of batteries |
Power Plug-in |
Barrel Connector |
Software |
Pixel Zoom |
1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom |
Frame Guides |
Preset Aspect Ratios & Customizable |
DSLR Scale |
Canon 5DMkii & Canon 7D |
Custom Scale |
Yes (Underscan Only) |
Anamorphic De-Squeeze |
0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x |
Image Rotate |
Automatic or Manual Control |
Image Flip |
Automatic or Manual Control |
Cross Conversion |
Yes: HDMI → SDI & SDI → HDMI |
Focus Assist |
User Adjustable Color Style and Intensity |
Peaking |
User Adjustable Intensity |
False Color |
Rainbow, Arri Style, Custom with up to 10 nodes |
Zebra |
Dual-User Configurable |
Waveform |
Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting |
Vectorscope |
Yes |
RGB Parade |
Fully User Customizable |
Histogram |
Luma & RGB Style |
Image Capture |
Yes |
Custom LUTS |
Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu |
LUT Downstream |
Available on SDI or HDMI Out. Applied on Output Preview Page. |
LUT Import |
via SD Card or USB Storage Device |
Overlay |
With Opacity Slider and Blink Setting |
Audio Meters |
HDMI & SDI up to 8 channel |
Camera Control |
Camera Control Compatibility |
RED KOMODO RED DSMC2 |
