Sony BRC-X1000 4K/HD PTZ Camera with 1-inch Exmor® R CMOS Sensor

USD 9,150.00

In stock

  • Enhanced Pan/Tilt/Zoom (PTZ) operation
  • Uncompromising 4K images
  • Cinematic 24p pictures
  • Excellent low light sensitivity
  • Flexible installation
SKU: BRC-X1000 Category:

Sony BRC-X1000 4K/HD PTZ Camera with 1-inch Exmor® R CMOS Sensor

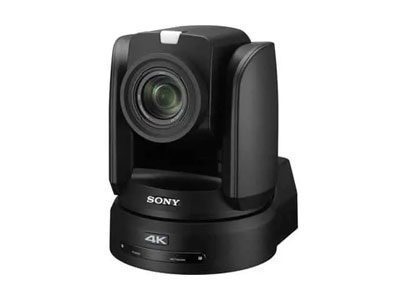

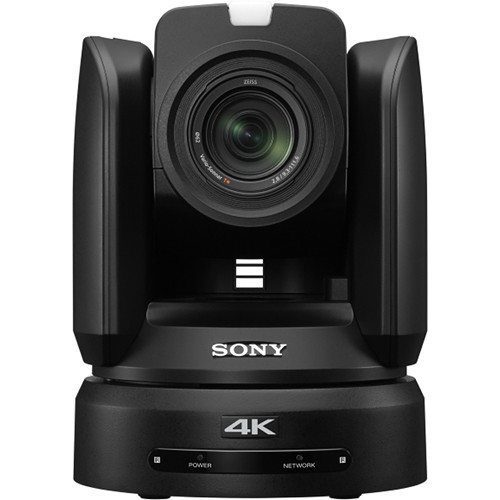

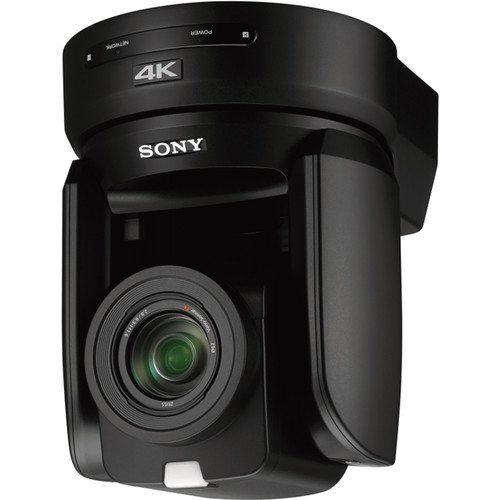

The Sony BRC-X1000 is Sony’s first 4K remote camera, combining uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.

Designed for remote operation, this Sony BRC-X1000 compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It’s equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It’s also particularly suited to efficient multi-camera set-ups, under the control of a single operator.

The Sony BRC-X1000 1-inch type Exmor R CMOS image sensor captures detail-packed 4K footage at 30p with four times the pixel count of Full HD, and excellent low-light sensitivity. The large image sensor also allows the creation of beautiful ‘bokeh’ effects with a shallow depth of field to suit any artistic intention.

Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 18x (4K), 24x(HD) extending this range even further without visible loss of resolution. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting.

There’s also a broad range of video interfacing and remote control possibilities – plus support for PoE and genlock – for smooth integration into any broadcast, professional or corporate AV environment.

Enhanced Pan/Tilt/Zoom (PTZ) operation

Sony BRC-X1000 Accurately re-frame shots or track moving subjects with smooth, speedy, near-silent remote control of pan, tilt and zoom functions. There’s also low-speed zoom and a slow pan/tilt mode for precise, judder-free camera movements. PTZ Trace Memory* allows a sequence of camera movements to be memorised and followed whenever required. PTZ Motion Sync* smoothly blends separate pan, tilt and zoom movements for seamless, professional-looking transitions.

Uncompromising 4K images

The Sony BRC-X1000 camera’s large, back-illuminated 1-inch type Exmor R CMOS sensor delivers uncompromised broadcast quality colour pictures in detail-packed 4K 30p, with four times the resolution of Full HD. Footage can also be captured in Full HD 60p – ideal for fast-moving sports action.

Cinematic 24p pictures*

The Sony BRC-X1000 camera can also operate in 24p mode, for video footage with a rich, filmic look.

High quality 12x optical zoom and 18x(4K) or 24x(HD) with Clear Image Zoom

The high quality Zeiss Vario-Sonnar T* lens with 12x optical zoom range covers wide angle shots as well as tight close-ups. Clear Image Zoom expands this range to 18x (4K) or 24x (HD) without sacrificing detail.

Excellent low light sensitivity

The Sony BRC-X1000 can capture crisp, low noise colour video images in light levels as low as 1.7lx, making it an ideal choice for dimly lit live hall and theater.

Flexible installation

Integration is simplified in a wide range of environments, with PoE (Power over Ethernet) to reduce cabling requirements and VISCA control over IP.

Remote operation

Pan/tilt/zoom and other camera settings can be controlled using the supplied IR remote commander, or with the optional RM-IP10 Remote Control Unit that can control multiple cameras.

Genlock

Genlock simplifies integration with other systems in multi-camera broadcast environments.

Versatile video outputs

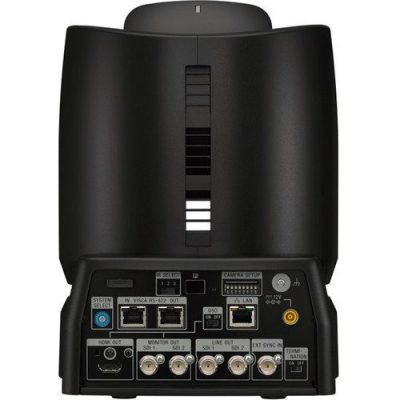

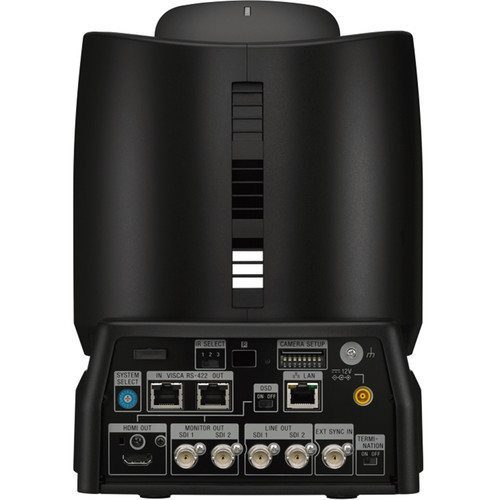

Enjoy greater installation flexibility in professional broadcast and AV environments with dual link 3G-SDI (x4) and HDMI video outputs.

Front and rear tally lamps

Ideal for on-air broadcast use, the Sony BRC-X1000 features dual tally lamps on the front and rear of the camera body. Brightness of the front tally lamp can be adjusted in two steps.

Always up to date

New camera functionality and performance improvements can be added via firmware updates over IP.

*To be supported in 2017

Camera Specifications
Auto Exposure Exposure Control: Auto, Manual, Priority mode (shutter priority, iris priority, gain priority),
EV compensation, Back light, Spot light
Effective Pixels Approx. 14.2 Megapixels
Horizontal Viewing Angle 64.6°(Wide-end)
Image Device 1" Exmore R CMOS sensor
Lens 12x – Clear Image Zoom: 2x(HD), 1.5x(4K) Total 24x(HD), 18x(4K)
Pan Angle/Speed Pan: ±170°
Pan: 0.3° to 60°/s
Shutter Speed 1/10000s to 1/8 (59.94/29.97) 1/10000s to 1/6 (50/25)
Tilt Angle/Speed Tilt: +90°/-30°
Tilt: 0.3° to 60°/s
White Balance Auto1/Auto2/One Push/Indoor/Outdoor/Manual
General Specifications
Dimensions (W x H x D) Approx. 198 x 260 x 238mm (without projecting object)
Approx. 7 7/8 x 10 1/4 x 9 3/8 inch (without projecting object)
Effective Pixels Approx. 14.2 Megapixels
External Sync Input Yes
Focal Length f=9.3 to 111.6mm F2.8(Wide) ,F4.5(Tele)
Focus System Auto/Manual
Gain Auto/Manual (-3dB to +33dB)
Image Device 1-type Exmor R CMOS
Minimum Illumination 1.7 lx (50IRE, 1/30s, Iris/Gain Auto)
Operating Temperature 0 °C to 40 °C / 32 °F to 104 °F
Pan/Tilt Angle Pan: ±170°
Tilt: +90°/-30°
Pan/Tilt Speed Pan: 0.3° to 60°/s
Tilt: 0.3° to 60°/s
Panel Display Resolution 12x Optical Zoom Lens / Clear Image Zoom Technology 2x for a total of 24x
Power Requirements PoE+
DC 10.8V to 13.2V, PoE+(IEEE802.3at compliant)
Preset Positions 16* (planned increase in 2017)
Shutter Speed 1/10000s to 1/8 (59.94/29.97) 1/10000s to 1/6 (50/25)
Video Output Dual Link 3G-SDI x 2(Mon/Line), HDMI x 1, Ethernet x 1(Ctrl), RS-422 x 2(In/Out)
Weight Mass:
Approx. 4.3kg
Approx. 9 lb 7.7oz
White Balance Auto1/Auto2/One Push/Indoor/Outdoor/Manual
Interface Specifications
Camera Control Interface RS-422(VISCA) / VISCA over IP
Video Output Specifications
Horizontal Resolution 4K/HD
Minimum Resolution 1.7Lx (50IRE, 1/30s, Iris/Gain Auto)
Signal System 3840×2160 /29.97p.25p 1920×1080/59.94p, 59.94i, 50p, 50i1280x720/59.94p, 50p
3840×2160/23.98p*, 1920×1080/23.98p* * planned for later in 2017
Video Output 4K – Dual link 3G-SDI x2 and HDMI
HD – 3G-SDI x2 and HDMI

Additional information

Weight 4.5 kg
