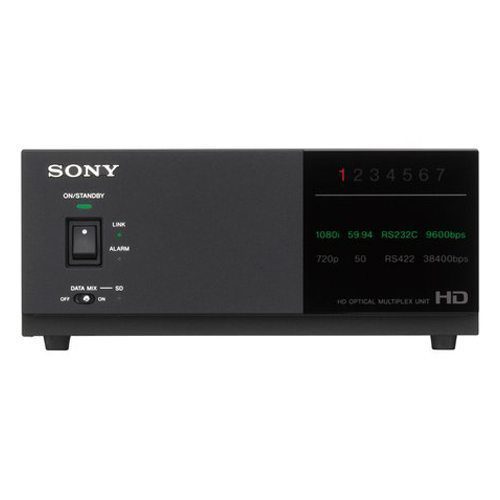

Sony BRU-SF10 HD/SD Optical Multiplex Unit
The Sony BRU-SF10 HD Optical Multiplex Unit is designed to connect the BRC-H900 and BRC-Z330 HD Colour Video Cameras.
The Sony BRU-SF10 HD optical multiplex unit enables the BRC-H900 and BRC-Z330 HD cameras (fitted with the optional BRBK-SF1 HD optical multiplex card) to transmit uncompressed digital data without deterioration through the CCFC-S200 single-mode fiber-optic cable, at a maximum distance of about 6,500 feet (2 km).
Long-distance transmission via optical fiber cable
The Sony BRU-SF10 is equipped with a camera connector to allow the connection of single optical fiber cable. You can connect the BRC-H900 and BRC-Z330 HD cameras from up to 2,000 m (6,562 feet) away by inserting the optional BRBK-SF1 HD Optical Multiplex Card into the HD camera and using the CCFC-S200 Optical Fiber Cable.
Two interface card slots equipped
The Sony BRU-SF10 is equipped as standard with an RGB/component video output (D-sub 15-pin). In addition to this connector, two interface card slots allow the unit to be equipped with various SD analog signal outputs such as composite video, S video, component video and RGB outputs, and digital signal outputs such as SD-SDI signal and HD-SDI signal outputs.
External sync signal input/output equipped
When multiple BRC-H900 and /or BRC-Z330 HD cameras are connected via the Optical Fiber Cable, the video signal can be synchronized by inputting the sync signal into the external sync input connector.
Audio line output connectors (phono jacks, L/R) equipped
The Sony BRU-SF10 allows output of stereo audio line signals that are transmitted from the BRBK-SF1 HD Optical Multiplex Card inserted into the BRC-H900 or BRC-Z330 HD camera.
