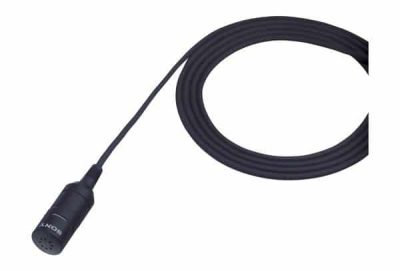

Sony ECM-66B Uni-Directional Electret Condenser Lavalier Microphone
With its ability to reject ambient noise, Sony’s ECM-66B Uni-Directional Electret Condenser Lavalier Microphone is ideal for presentation applications. Features include a mic head that weighs only 0.25 ounces, a black finish, and a two-way powering system giving users the choice between an AA-size battery or external power supply.

Highlights:
• Uni-directional lavallier condenser microphone with AA battery power supply and XLR connector

Features
• 130 dB SPL maximum input sound pressure level
• Complete with in-line battery unit for 2-way powering
• Frequency response
• Output Connector
• Sensitivity (0d B=1 V/Pa, at 1 kHz)
• Dynamic Range
• Signal-to-Noise Ratio (A weighted, 1 kHz, 1 Pa.)
• Wind Noise (w/wind screen)
• Battery Life

Specifications

General Specifications
Capsule Type	Electret Condenser
Frequency Response	70 Hz to 14 kHz
Directivity	Uni-directional
Sensitivity	-50.0dB ± 2dB
Dynamic Range	101dB or more
S/N Ratio	65 dB or more
Inherent Noise (0dB=20µPa)	29 dB SPL or less
Induction Noise from External Magnetic Field	5 dB SPL or less
Wind Noise	50 dB SPL or less (with windscreen, at 2 m/s)
Max SPL (dB SPL)(0dB=20µP)	130 dB SPL
Connector	B type. Supplied with XLR connector in power supply unit (single AA size battery)
Cable Length	9.8 feet
Power Requirements	DC 1.5 V, AA size battery or 48V phantom power
Dimensions	7/16 diameter X 31/32 inch (Microphone head) 13/16 diameter X 6 1/2 inch (Power unit XLR type)
Weight	5.9 oz (Includes Mic and Power Supply)
