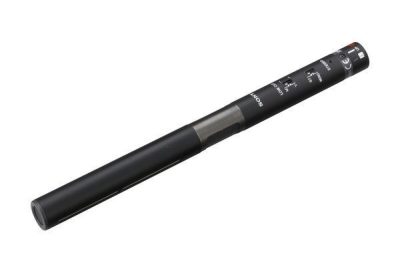

Sony ECM-680S MS Stereo Shotgun Condenser Microphone

The Sony ECM-680S is an MS stereo shotgun, electret condenser microphone, ideal for a broad range of field production and broadcast studio applications. Incorporating newly developed microphone capsules, the ECM-680S offers excellent sensitivity, low inherent noise, and a flat-and-wide frequency response.

The most distinguished feature of the ECM-680S is its switchable operation between a highly directional monaural mode and stereo mode.?Monaural mode provides highly directional sound pickup, while stereo mode delivers natural and spatial sound. The MS microphone signal of the ECM-680S is internally decoded and it provides L and R (stereo) outputs.

The Sony ECM-680S is supplied with a XLR-5-pin to XLR-5 pin cable for use with 5-pin XLR input equipped camcorders. The optional EC05X5F3M (formally known as K-1504) cable should be used when connecting the ECM-680S stereo shotgun with camcorders having two 3-pin XLR inputs.

Highlights:

Uni-directional Mono/Stereo (Switchable) Electret Condenser Shotgun Microphone, Phantom Powered

Features

Excellent Sound Quality
Stereo and Monaural Switchable
Flat-and-Wide Frequency Response
Built-in Low Cut Filter
Compact and Lightweight Design

Specifications

Capsule Type	Stereo MS Electret Condenser
Frequency Response	Stereo: 50 Hz to 20 kHz Monaural: 40 Hz to 20 kHz
Directivity	Uni-directional
Sensitivity	Stereo: -28 dB ±3 dB Monaural: -32 dB ±3 dB
Dynamic Range	Stereo:104 dB or more Monaural: 106 dB or more
S/N Ratio	Stereo: 74 dB or more Monaural: 76 dB or more (IEC179 A-weighted, 1 kHz, 1Pa)
Inherent Noise (0dB=20µPa)	Stereo: 21 dB SPL or less, Monaural 20 dB SPL or less
Induction Noise from External Magnetic Field	0 dB SPL or less
Wind Noise	60 dB SPL or less (with windscreen), 55 dB SPL (without windscreen),(0 dB SPL=20u PA)
Max SPL (dB SPL)(0dB=20µP)	124 dB SPL
Connector	XLR 5-pin
Cable Length	XLR-5 pin to XLR-5pin 15 inches (Connects with Sony camcorder equipped with front 5-pin mic input)
Power Requirements	DC 40 to 52 V
Dimensions	ø13/16 x 9 7/8 inches
Weight	4.9 oz
