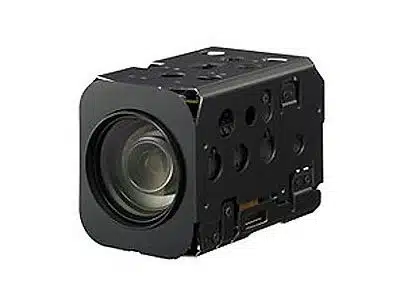

Sony FCB-EH6300 Block Camera
Click to enlarge
Home » Shop » Pro-Video » Professional Camcorders » Block Cameras » SONY FCB-EH6300 3.27 Megapixel 20x Zoom HD Color Block Camera
Sony FCB-EX48C
SONY FCB-EX48C 18x EXview NTSC Color Block Camera
Back to products
Sony FCB-EV7100 Block Camera
SONY FCB-EV7100 Block Camera

SONY FCB-EH6300 3.27 Megapixel 20x Zoom HD Color Block Camera

Sony
Add to wishlist
49 People watching this product now!
SKU: FCB-EH6300 Category: Block Cameras
Share:
  • Description
  • Specifications
  • Delivery Info
  • Reviews (0)
Description

SONY FCB-EH6300 20x Zoom HD Color Block Camera

Sony FCB-EH6300 incorporates a 1/2.8-type Exmor™ CMOS image sensor, boasting approximately 3,270,000 effective pixels for exceptional picture quality. Other features, such as Wide-D, Auto ICR, and Spherical Privacy Zone Masking, make the FCB-EH6300 ideally suited for security and surveillance applications. Available picture effects include Color Enhancement, E-flip, Nega Art, Black & White, and Mirror Image.

– Full 1920 x 1080/30p High Definition: Ideally suited for Security monitoring applications, the FCB-EH6300 HD block camera offers full 1920 x 1080/30p high definition output.

– Digital Output (Y/Cb/Cr 4:2:2): The digital LDVS interface provides easy access for IP and Gigabit Ethernet applications. Thanks to the digital interface, the quality of the camera’s video signal is maintained with minimal deterioration. This can lead to cost savings due to the direct connection with codecs/systems without the need for any additional components.

– Temperature Readout: The value of the internal temperature of the FCB-EH6300 can be read out via the VISCA™ protocol. When checking the internal temperature of equipment (i.e., speed dome unit), it is possible to use this data to turn a fan or heater on/off inside the equipment as needed.

– Color Enhancement: Ideally suited for low vision applications, new color enhancement options can make reading text and pictures less challenging. Available options include monochrome, binary, inverted, and enhanced color modes,

– Auto Wide-D Mode: The new FCB-EH6300 camera monitors the luminance differences within an image in high contrast environments and automatically switches on and off the Wide-D feature according to the contrasted lighting environment. In addition, it is possible to select three levels of luminance differences (low/mid/high).

– Additional Wide-D Modes: In addition to the Auto Wide-D mode, the new FCB-EH6300 camera features additional modes, including Indoor, Outdoor, One-push WB, ATW, Manual, and Sodium Vapor Lamp.

– Auto ICR Function: The FCB-EH6300 features a high sensitivity imager, ideal for day/night functions at less than 0.5 lux (F1.6, 50 IRE) with high-sensitivity mode on.

Specifications
Camera Specifications
Image Device 1/2.8 type Exmor CMOS Sensor
Effective Pixels Approx. 2 million
Digital Zoom 20x (200x with optical zoom)
Horizontal Viewing Angle 54.1° (wide end) to 2.9° (tele end)
Minimum Object Distance 10mm (wide) ~ 1,000 mm (tele)
Sync System Internal
Electronic Shutter 1/2 to 1/10,000 s, 21 steps
White Balance Auto, ATW, Indoor, Outdoor Auto, Sodium Vapor Lamp (fix/auto), One-push, Manual
Gain Auto/Manual/Max. Gain Limit (-3 to 28 dB, 2 dB steps)
Wide Dynamic Range Auto/Manual
Privacy Zone Masking Spherical
Character Generator 20 characters, max. 11 lines
Focus System Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom trigger AF
Camera Operation / Zoom switch Yes (Zoom Tele, Zoom Wide)
Picture Effects E-Flip
Nega Art
Black & White
Mirror Image
Color enhancement
Exposure Control Auto, Manual, Priority Mode (shutter priority & iris priority), Bright, EV Compensation, Slow AE
Video output Specifications
Lens Value 20x optical zoom; f = 4.7 mm (wide) to 94.0 mm (tele); F1.6 to F3.5
S/N Ratio More than 50 dB
Minimum Illumination Less than 1.7 lx (F1.6, 50 IRE), 0.5 lx in High Sensitivity Mode
Signal System HD: 1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50, 720p/50, 720p/29.97, 720p/25
SD: NTSC/PAL
Interface Specifications
Camera Control Interface VISCA™ (TTL Signal Level) Baud Rate: 96 Kb/s, 19.2 Kb/s, 38.4 Kb/s
Stop bit: 1/2 bit selectable
General Specifications
Dimensions (W x H x D) 50.0 x 60.0 x 89 mm
Weight Approx. 270 g
Operating Temperature -5°C to +60°C
Storage Temperature -20°C to +60°C
Power Consumption Less than 4.8 W (motors inactive)
Power Requirements 6.0V ~ 12.0V DC
