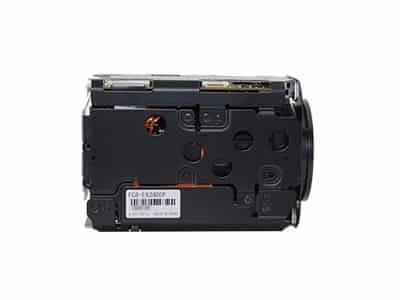

Sony FCB-EX2400P 1/4-type Super HAD CCD II Image Sensor

Description
Features
Specifications
Delivery Info
Reviews (0)

Sony FCB-EX2400P 1/4-type Super HAD CCD II Image Sensor

Super HAD CCD II Image Sensor

Thanks to high-performance Super HAD CCD II image sensors FCB-EX2400, and FCB-EX2400P achieve excellent sensitivity at as low as 0.4 lx* minimum illumination.

This sensor allows high-quality images to be captured even in dark environments. Furthermore, it delivers an excellent horizontal resolution of 670 TV lines, enabling detail to be captured in scenes.
* IRE 50%, AGC ON.

Progressive Scan

In Progressive Scan mode, the video signal is processed by progressive scan to achieve clear images without any flicker effect.Since network cameras typically have backend systems based on progressive scan, the original picture quality can be maintained without requiring conversion from interlace scan to progressive scan.

Wide Dynamic Range with New Technology

The Wide Dynamic Range (Wide-D) feature allows for he capture of clear images in extreme lighting conditions.
• Auto Mode
When shooting in high- or low-contrast lighting situations, the camera monitors the luminance differences within animage and automatically switches the Wide-D feature on and off , depending on the visibility of the subjects and background.
• Interlace Wide-D and Progressive Wide-D Modes
There are two modes to choose from. Interlace Wide-D mode is ideally suited to high-contrast lighting environments. Progressive Wide-D mode is suited to low contrast environments.

Features

Image Stabilization

The image stabilization function minimizes the appearance of shaky images caused by low-frequency vibration. This function is useful for outdoor surveillance and traffic monitoring applications.

StableZoom™

StableZoom is a function for performing correction using the image-stabilization function in accordance with the zoom ratio, and smoothly zooming up using a combination of the optical zoom and digital zoom. In StableZoom mode, this function starts naturally without bringing an abrupt change to the horizontal angle of view.

Visibility Enhancer

The powerful Visibility Enhancer corrects tone curve dynamically and adaptively on a pixel-by-pixel basis while continuously enabling greater visibility in contrasting environments.

De-fog

The De-fog function helps to improve visibility in low-contrast environments such as foggy or smoky scenes. This feature enhances and optimizes contrast in this type of situation.

Enhanced Noise Reduction

By combining 2D and 3D noise reduction,the camera offers a wide selection of noise reduction settings, from Level 1 to Level 5, to allow you to choose the ideal level for different shooting conditions.

Advanced White Balance

For the White Balance function, there are two different modes: Outdoor Auto mode and Sodium Vapor Lamp mode. These modes are designed to adapt to changing natural light outdoors and to changing sodium vapor lamp lighting, respectively.

High-quality Digital Output

The camera is equipped with a digital interface (Y/Cb/Cr 4:2:2) which is comparable to ITU-R BT656. Using this digital interface, the quality of the camera’s video signal does not deteriorate.

Specifications

Sensor Ref	0
Sensor Type	1/4-type Super HAD II CCD 960H
Auto ICR function	Yes (adjustable threshold)
ICR function	Y
Freeze	Y
Auto Slow Shutter	Y
Slow Shutter Function	Y
Wide Dynamic Range	Yes (Advanced 90dB)
Signal System	PAL(Interlaced-PsF mode) or Progressive Scan
Picture Elements	570000
Horizontal Resolution	670
Lens	x28 Zoom
Lens – Detail	0
Lens – f stops	0
Zoom Movement Speed	0
Digital Zoom	0
Angle of View H (WIDE)	0
Min Working Distance (WIDE)	10
Min Working Distance (tele)	1500
Image Stabilizer	Y
Sync System	Internal/External (V-Lock)
Recomended Illumination	100
Minimum Illumination	0
Minimum Illumination 2	0
AD	0
SN Ratio	50
Electronic Shutter Speed	1
White Balance	Auto, ATW, Indoor, Outdoor, Outdoor Auto, One-push, Manual, Sodium Vapor Lamp Fix/Auto/outdoor
Gain	0
AE Control	Full Auto, Shutter Priority, Iris Priority, Manual, Bright, Exposure Compensation, Slow AE, Back Light Compensation, Slow Shutter – Auto/Manual
EV Compensation	-10
Flicker Compensation	No
Noise Reduction	6 steps (Adaptative 3DNR)
Spot AE	Y
Focusing System	Auto (Sensitivity: normal-low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Near Limit, Focus Compensation with IR lighting
Picture Effects	Black & White, Neg. Art, E-Flip, Mirror, Color enhancement, Visibility enhancer, Defog
Character Generator	Yes (20 characters/line, max. 11 lines) – Extended
Grid/Cross Disaply	Yes
Privacy Zone Masking	Yes (with Spherical Pan/tilt)
Privacy Zone masking Detail	(24 mask, 8 on screen, 160×120 matrix, mosaic)
Interlock with pan, tilt and zoom	Yes (Spherical interlocking)
Alarm function	Yes (Motion detection with 4 zones)
Camera Operation Switch	Zoom TELE, Zoom WIDE
Aperture Control	16 steps
Preset	6 positions, 1 custom/power on preset
User Memory	16
Serial Interface	VISCA protocol (TTL/CMOS), 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, Stop bit 1/2 bit
External Key Switch	Y
Visca Model ID	47
Video Output	VBS: 1.0 Vp-p (sync negative), Y/C ITU-R BT656 Style 36/72Mhz
Connector	9-Pin FFC, 4 pin Harness, 12-pin FFC
Metal Frame	Y
Lens Diameter	36
Storage Temperature Humidity	-20
Operating temperature/ Humidity	-5
Power Consumption	2
Power Voltage	6
MTBF (excluding lens)	5
Weight	245
Width	50 mm
Depth	89
Height	57 mm
Order Quantity	10
Overvoltage protections on I/O	VBS, V-LOCK
