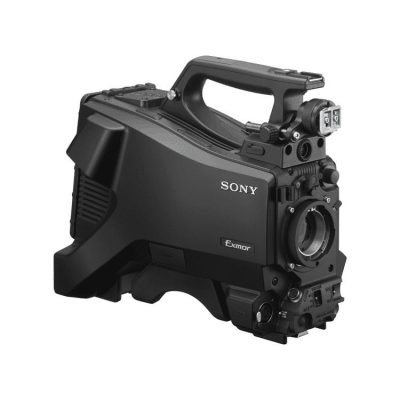

Sony HXC-FB80 2/3-inch Exmor CMOS sensor HD studio camera

Description

Our Score

Click to rate this post!

[Total: 0 Average: 0]

Sony HXC-FB80 2/3-inch Exmor CMOS sensor HD color studio camera

The Sony HXC-FB80 is a cost-effective high-performance HD portable camera with three Sony 2/3-inch Exmor CMOS sensors and a 3G-SDI platform capable of 1080/50p and 59.94p signal processing while achieving low power consumption.

In combination with the HXCU-FB80* HD/4K Camera Control Unit, it offers user-beneficial expandability including 4K upscale and HD HDR support (HLG, Hybrid Log-Gamma) for a future-proof solution. The optional PC-based HZC-RCP5 Remote Control Panel is available for a simpler application system.

*HXC-FB80N camera model equipped with Neutrik connector interface. (Works with HXCU-FB80N CCU model)
*HXC-FB80L camera model equipped with Lemo connector interface. (Works with HXCU-FB80L CCU model).
**Requires firmware upgrade available in 2018.

Full HD Exmor CMOS sensors

Incorporating three 2/3-inch Exmor CMOS sensors, the Sony HXC-FB80 offers stunning full-HD picture quality and sensitivity of F13 at 50 Hz and F12 at 59.94 Hz at 1080 mode with a signal-to-noise ratio of -60 dB. These features enhance shooting in a low-light environment.

3G-SDI Platform Capable of 1080/50p and 59.94p

The Sony HXC-FB80 camera head can comfortably output 3G-SDI signals including 1080/50p and 59.94p. The new processor can also support 1080/23.98 PsF on top of 25 PsF and 29.97 PsF.

Future-Proof 4K Upscalable and HD HDR Support with CCU

Combined with the HXCU-FB80 CCU, this camera’s output is 4K upscalable and yet HD HDR-capable supporting HLG (Hybrid Log-Gamma).

* Requires firmware upgrade available in 2018

PC-RCP (HZC-RCP5)

In addition to hardware-based remote control units, PC software-based HZC-RCP5 Remote Control is also available.

MCS (Multi Camera System) capabilities

The HXCU-FB80 CCU provides support for up to 24 units, forming a complete MCS system.

Long Cable Extension and Choice of Fiber Interface

Sony HXC-FB80 Using a hybrid cable with a power supply, the distance between the camera head and CCU can be extended up to 600 m. In the case of the combination with HXC-P70, it can extend up to 1,000 m. In addition to the Neutrik connector interface, a LEMO connector interface is also available for the camera head and CCU. In the case of connection with a single-mode fiber cable (SMF), transmission can extend up to 10km using a local power supply.

Wide range of image control functions

The Sony HXC-FB80 camera is full of creative image control functions such as MultiMatrix, Skin Tone Detail, Low Key Saturation, Knee Saturation, and Auto Lens Aberration Compensation (ALAC).

ND Filter by Servo Motor

Along with an electrical CC filter, the ND filter can be remotely controlled either by external RCP/RM or via the CCU because of the newly adopted filter servo motor in the camera head.

HD Video Trunk and HD Prompter

Sony HXC-FB80, In addition to the camera capturing a 1080 50i/59.94i video signal, another video signal can be passed through the same fiber connection line to the CCU side because of the 3G-SDI platform. Further to the traditional analog composite prompter support, the HD-SDI signal can be supplied from the CCU side.

To learn more about 4K Cameras

Specifications

Our Score

Click to rate this post!

[Total: 0 Average: 0]

General
Power Consumption	Approx.19W (Camera body only) Approx. 32W (Camera body with supplied viewfinder)
Operating Temperature	-10°C to +45°C 14°F to +113°F
Storage Temperature	-20°C to +60°C -4°F to +140°F
Dimensions (W x H x D) *1	(Body) 160 x 266 x 314 mm (Body) 6 3/8 x 10 1/2 x 12 3/8 inches (with Lens&VF) 2 295 x 433 x 571 mm (with Lens&VF) 2 11 5/8 x 17 1/8 x 22 1/2 inches
Mass	(Body) Approx. 3.4 kg (Body) Approx. 7 lb 8 oz (with Lens&VF) Approx. 6.8 kg (with Lens&VF) Approx. 14 lb 16 oz
Camera Section
Pickup Device	3-chip 2/3-inch type CMOS
Effective Picture Elements	1920 x 1080 (H x V)
Signal Format	HD: 1080/59.94p, 1080/59.94i, 1080/50p, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/23.98PsF, 720/59.94p, 720/50p SD: 480/59.94i, 576/50i
Spectrum System	F1.4 prism system
Lens Mount	Sony 2/3-inch type bayonet mount
Built-in Filters	CC: Electrical ND: 1; CLEAR, 2; 1/4ND, 3; 1/16ND, 4; 1/64ND
Sensitivity (at 2000 lx, 3200K, 89.9% reflectance)	F12 (59.94 Hz), F13 (50 Hz)
Signal-to-noise Ratio	Typical 60dB *3 (1080/59.94i)
Modulation Depth	HD : 45% or higher at 27.5 MHz (1080i)
Horizontal Resolution	1,000 TV lines or higher
Gain	-3, 0, 3, 6, 9, 12 dB
Shutter Speed	1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (59.94i mode)
Shutter Speed (Slow Shutter (SLS))	2, 3, 4, 5, 6, 7, 8-frame accumulation (only in 1080 mode at 59.94i/p, 50i/p, 29.97PsF, 25PsF, 23.98PsF)
Input/Output
Audio Input (CH1)	XLR type: 3-pin, female (x1) MIC IN: -60dBu (Up to -20dBu can be set by using menu or HXCU-FB80), balanced LINE IN: 0dBu, balanced
Audio Input (CH2)	XLR type: 3-pin, female (x1) MIC IN: -60dBu (Up to -20dBu can be set by using menu or HXCU-FB80), balanced LINE IN: 0dBu, balanced
Prompter/Genlock	BNC (x1); Gen-Lock In or Prompter Out
Test Output	TEST Out (Analog output with/without characters), or HD/SD Sync Out
SDI Input/Output	BNC (x1) SMPTE ST292-1, for HD Prompter Out or HD Video Trunk In
SDI Output	BNC (x1) SMPTE ST425-1/ST292-1/259M; 3G/HD-SDI or SD-SDI selectable
CCU	Optical Fiber (x1), CCFN Cable or Single Mode Fiber Cable (LC type)
Distance of Power Supply	600m (max.) by CCFN Sony Hybrid Type Fiber Cable (with Portable Lens and HXCU-FB80)
Distance of Fiber Cable	10km (max.) by Single Mode Fiber Cable (LC type) with Local Power Supply (with HXCU-FB80)
Intercom	XLR type: 5-pin, female (x1)
Earphone Output	Stereo mini jack (x1)
Lens	12-pin (x1)
Viewfinder	20-pin (1), for HDVF only
Remote	8-pin (x1)
TRUNK Input/Output	TRUNK LINE D-sub 9-pin, female (x1) : RS-232C, or Remote 8pin : RS-422A
EXT Input/Output	(in TRUNK I/O) D-sub 9-pin, female (x1)
USB	USB 2.0 (x1)
DC Input	XLR-type 4-pin (x1), DC 10.5 V to 17 V
DC Output	4-pin (x1), DC 10.5 V to 17 V, 1.5 A (max.)
Viewfinder Display
Screen Size	155.5 x 87.5mm (7 inch diagonal)
Aspect Ratio	16:9
Picture Elements	1920(H) x 1080(V) RGB stripe array
Lens
Lens Mount	2/3-inch type Sony Bayonet
Focal Length	8.2mm (11/32 inches) to 164mm (6 1/2 inches)
Zoom	Servo/Manual selectable
Zoom Ratio	20 x
Maximum Relative Aperture	1: 1.9
Iris	Auto/Manual selectable F1.9 to F16 and C (Close)
Focus	Full manual focus 900 mm to ∞ (MACRO OFF) 10 mm to ∞ (MACRO ON, Wide)
Filter Thread	M82 mm, pitch 0.75 mm
Macro	On/Off switchable
Notes
*1	The values for dimensions are approximate.
*2	The values for dimensions are in the maximum height position of viewfinder’s slide mechanism without hood.
*3	The value is in NS (Noise Suppressor) : ON mode.
*4	This specification data is for the HXC-FB80SN

In The Box

Our Score

Click to rate this post!

[Total: 0 Average: 0]

Camera Operation Guide (1)
Operating Instructions (CD-ROM 1), JP, GB, FR, DE, IT, ES, CS
7 inch Large Viewfinder (1)
Viewfinder Operation Guide (1)
Viewfinder Operation Manual (CD-ROM 1), GB, CS
2/3-inch type HD Portable Lens (1)
Lens Mount Cap (1)
Flange back adjustment chart (1)
Cable clamp belt (1)
V-shoe (1)
Viewfinder Hood (1)
Viewfinder Cable 20pin (1)
Tally Number Plate (0~9)
Warranty booklet (1)
