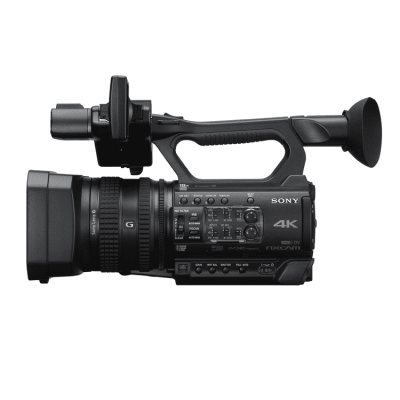

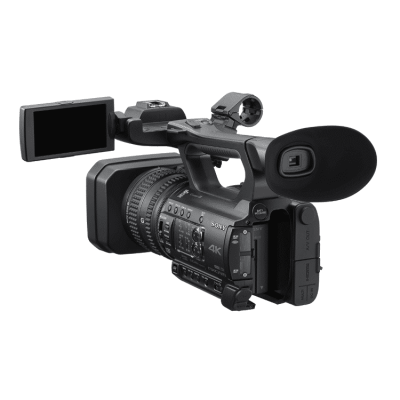

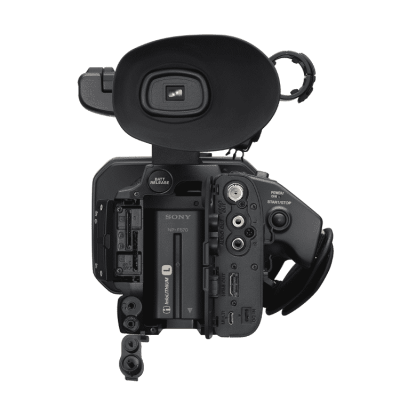

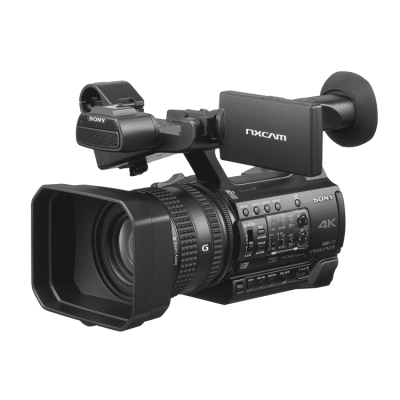

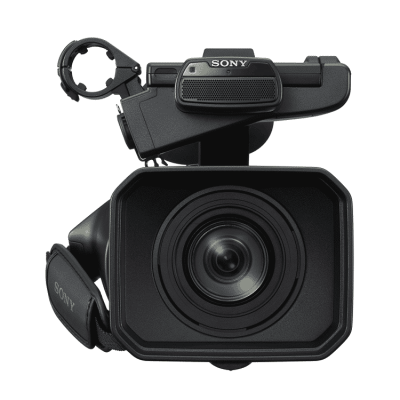

Sony HXR-NX200 4K Exmor CMOS Sensor Compact Camcorder
- High resolution LCD and EVF
- Multi-Interface (MI) Shoe
- Wide choice of connections
- Dual media slots for recording flexibility
- Built-in ND Filters
- Sony G Lens with 24x Clear Image Zoom (FHD)
Sony HXR-NX200 4K Exmor CMOS Sensor Compact Camcorder
Sony HXR-NX200 is an affordable, compact camcorder with a big 1.0-type sensor and new colour reproduction for superb 4K or Full-HD image quality. It offers all the professional features you need with refined manual controls including three independent manual lens rings, smart fully auto options and more.
4K or HD : Simply superb image quality
A large, 20 megapixel* 1.0 type sensor delivers stunning image quality in 4K (3840×2160) or Full-HD at 50Mbps. Its 1.0 sensor is brighter, has higher resolution and offers more bokeh with a shallow depth of field. HXR-NX200 gives you the flexibility to work the way you want to.
Well-balanced colour reproduction
Natural skin colours and rich mid-range colours deliver vivid, yet true-to-life imagery regardless of exposure setting. It’s perfect for capturing live events such as seminars, weddings and houses of worship. NX200’s newly developed gamma curve provides a vibrant look ready to share as soon as you export.
The professional’s choice
There’s no need to choose between professional features and superb 4K imaging at an entry level price-point. Advanced manual controls, including three independent manual lens rings, built-in 4-step ND filters and class-leading 4K and Full-HD performance make NX200 a choice you can rely upon for live events, corporate, education and wedding videography.
Stunning quality from a large 1.0 type sensor
The Sony HXR-NX200 single 20 megapixel* 1.0 type Exmor R CMOS sensor is approximately the same size as a 16mm film frame and seven times larger than three 1/4.7 type sensors combined. The key benefit of this large size is low noise and less blur because more light reaches the sensor, offering clear and steady pictures even in a dark scene with minimum illumination 1.7 lux**. The large sensor size also enables beautiful background defocussing (bokeh) to enable you to focus on what you want to show and defocus the rest of the image.
*14.2 million effective pixels.
**LOW LUX mode.
Sony G Lens with 24x Clear Image Zoom (FHD)
A fixed 29mm wide-angle lens with 12x optical zoom makes it easy to capture even the most expansive landscape scenes while also offering superb clarity and sharpness – maximising the performance of the NX200’s large 1.0 type sensor.
The G Lens is Sony’s own camera lens family, designed and manufactured to the high standards of optical performance.
In addition, your ability to get into close with the most distant scenes is aided by Sony’s advanced Clear Image Zoom feature. Once you’ve zoomed in at maximum 12x optical magnification, By Pixel Super Resolution Technology can enlarge the image by an additional 150% in 4K and 200% in HD while still preserving image quality. In addition, zoom performance can be doubled at any point with a digital extender by up to 24x.
Manual operability in professional handy design
The Sony HXR-NX200 is ergonomically designed to provide a lightweight and easy-to-use shooting experience. Three manual, independent lens rings enables smooth, natural adjustment of focussing, zooming and iris control. It can also be used in full-auto mode or completely manual for maximum creative control. Manual dial and buttons on the side of the body allow swift and easy adjustment of IRIS (aperture), GAIN and shutter speed. The white balance is simple to adjust by colour temperature in convenient 100K steps.
Built-in ND Filters
A built-in Neutral Density (ND) filter wheel includes positions for clear, 1/4 (2 stops), 1/16 (4 stops), and 1/64 (6 stops). This makes it easier to get all the advantages of shallow depth of field even in exterior day shoots, with no need to worry about bringing along and fitting a separate filter.
Dual media slots for recording flexibility
To extend recording time and workflow flexibility, the HXR-NX200 is equipped with two memory card slots and is compatible with SDXC and SDHC cards.
RELAY mode automatically switches recording from the first to the second memory card when the first is full, while SIMUL mode permits simultaneous recording to two memory cards (for example to create an immediate back-up version). The NX200’s two Start/Stop buttons on the handle grip, and camcorder body, can independently start and stop recording on different memory cards while recording in SIMUL mode.
High resolution LCD and EVF
The Sony HXR-NX200 has a 0.24-type Electronic Viewfinder (EVF) and an easily adjustable, flip out 3.5-type LCD. Both offer 1550K dots high resolution for precise monitoring and low latency however you choose to shoot.
Multi-Interface (MI) Shoe
The Sony HXR-NX200 takes advantage of Sony’s flexible Multi-Interface (MI) Shoe, which provides power, signal connections and coordinated on/off switching to compatible Sony accessories. For example, you can connect and control Sony wireless microphone systems such as the UWP-D11 or UWP-D12 with SMAD-P3/P3D adapters or attach the HVL-LBPC light*.
*All sold separately. HVL-LBPC is controlled but not powered by HXR-NX200.
Wide choice of connections
There’s no need to worry about adapters as the NX200 provides a wide variety of built-in connectivity options including HDMI, Multi/Micro USB, professional audio XLR terminals, REMOTE and Composite (BNC).
| General | |
|---|---|
| Mass | Approx 1800 g (body) Approx. 3 lb 15 oz (body) Approx. 2100 g (with lens hood, ,eyecup, NP-F570 battery) Approx. 4 lb 10 oz (with lens hood, ,eyecup, NP-F570 battery) |
| Dimensions (W x H x D)*1 | 171.3 × 187.8 × 371.3 mm (With the accessories (lens hood, large eyecup), excluding the grip belt and including the projecting parts) 6 3/4 x 7 1/2 x 14 5/8 inches (With the accessories (lens hood, large eyecup), excluding the grip belt and including the projecting parts) |
| Power Requirements | DC In: 8.4V Battery: 7.2 V |
| Power Consumption | Approx. 5.7 W (while recording with viewfinder and AVCHD 1080/60i FX) Approx. 5.9 W (while recording with LCD and AVCHD 1080/60i FX) |
| Operating Temperature | 0°C to 40°C 32°F to 104°F |
| Storage Temperature | -20°C to +60°C -4°F to +140°F |
| Battery Operating Time | Approx. 150 min. with NP-F570 battery (while recording with LCD, AVCHD 1080/50i FX) Approx. 240 min. with NP-F570 battery (while playing with LCD, AVCHD 1080/50i FX) |
| Recording Format (Video) | XAVC S：MPEG4-AVC/H264 4:2:0 Long profile AVCHD : MPEG-4 AVC/H.264 AVCHD 2.0 format compatible DV |
| Recording Format (Audio) | XAVC S 4K : Linear PCM 2ch, 16bit, 48kHz XAVC S HD : Linear PCM 2ch, 16bit, 48kHz AVCHD : Linear PCM 2ch, 16-bit, 48 kHz / Dolby Digital 2ch, 16-bit, 48 kHz DV : Linear PCM 2ch, 16-bit, 48 kHz |
| Recording Frame Rate | XAVC S 4K (3840 x 2160)@25p, 100Mbps/60Mbps XAVC S HD (1920 x 1080)@50p, 25p, 50 Mbps AVCHD (1920 x 1080)@50p, PS mode (28 Mbps) AVCHD (1920 x 1080) @50i/25p, FX mode (24 Mbps) FH mode(17 Mbps) AVCHD (1440 x 1080)@50i, HQ mode (9 Mbps) LP mode (5 Mbps) AVCHD (1280 x 720)@50p, FX mode (24 Mbps) FH mode (17 Mbps) HQ mode ( 9 Mbps) DV (720 x 576) @50i, 25 Mbps |
| Recording/Playback Time | XAVC S 4K@LPCM 2ch 100 Mbps Approx. 75 min with 64 GB memory card XAVC S 4K@LPCM 2ch 60 Mbps Approx. 125 min with 64 GB memory card XAVC S HD@LPCM 2ch 50 Mbps Approx. 155 min with 64 GB memory card AVCHD@LPCM 2ch PS Mode Approx. 290 min with 64 GB memory card Approx. 145 min with 32 GB memory card AVCHD@LPCM 2ch FX Mode Approx. 340 min with 64 GB memory card Approx. 170 min with 32 GB memory card AVCHD@LPCM 2ch FH Mode Approx. 450 min with 64 GB memory card Approx. 225 min with 32 GB memory card DV Approx. 280 min with 64 GB memory card Approx. 140 min with 32 GB memory card |
| Lens | |
| Lens Mount | Fixed |
| Zoom Ratio | 12x (optical), servo |
| Focal Length | f = 9.3 – 111.6 mmequivalent to f = 29.0 – 348.0 mm on 35 mm lens (16:9) equivalent to f = 35.5 – 426.0 mm on 35 mm lens (4:3) |
| Iris | F2.8 – F11 auto/manual selectable |
| Focus | AF/MF selectable, 10 mm to ∞ (Wide), 1000 mm to ∞ (Tele) |
| Image Stabilizer | ON/OFF selectable, shift lens |
| Filter Diameter | M62 mm |
| Camera Section | |
| Imaging Device (Type) | 1.0-type (13.2 mm x 8.8 mm) back-illuminated Exmor R CMOS sensor |
| Effective Picture Elements | Approx. 14.2 M pixels (16:9)/Approx. 10.6 M pixels (4:3) |
| Built-in Optical Filters | OFF: Clear, 1: 1/4ND, 2: 1/16ND, 3: 1/64ND |
| Minimum Illumination | [50i] 1.7 lux (LOW LUX mode) |
| Shutter Speed | [50i]: 1/6 -1/10,000 |
| Slow & Quick Motion Function | [50i]: 1080p: Frame rate selectable 1.2.3.6.12.25,50 fps |
| White Balance | Preset (Indoor: 3200K, Outdoor: 5600K±7 steps, Color temparature set range: 2300-15000K), Onepush A, B, Auto selectable |
| Gain | -3, 0, 3, 6, 9, 12,15, 18, 21, 24, 27, 30, 33 dB, AGC |
| Gamma Curve | Selectable |
| Input/Output | |
| Audio Input | XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable |
| Video Output | BNC (×1), Composite 1.0Vp-p, 75 Ω |
| Audio Output | RCA pin |
| USB | Multi/Micro USB jack (x1) |
| Headphone Output | Stereo mini jack (x1) |
| Speaker Output | Monaural |
| DC Input | DC jack |
| Remote | Stereo mini mini jack (x1) |
| HDMI Output | Type A (x1) |
| Monitoring | |
| Viewfinder | 0.6cm(0.24 type) Approx. 1.56 M dots. |
| LCD | 8.8 cm (3.5 type) Approx. 1.56 M dots. |
| Built-in Microphone | |
| Built-in Microphone | Omni-directional stereo electret condenser microphone. |
| Media | |
| Type | Memory Stick Pro Duo(TM) and SD/SDHC/SDXC compatible (x1) SD/SDHC/SDXC (x1) |
- Charger(BC-L1) (1)
- Lens hood (1)
- Lens cap (1)
- Large eyecup (1)
- Shoe cap (1)
- USB cable (1)
- Rechargeable battery pack (NP-F570) (1)
- AC Adaptor (AC-L100 C) (1)
- Power cord (mains lead) (1)
- Wireless Remote Commander (RMT-845) (1)
- Lithium battery (CR2025 for the Wireless Remote Commander) (1), Pre-installed to the Wireless Remote Commander
- Before Using This Unit (1)
- CD-ROM (1)
- Warranty (1)
