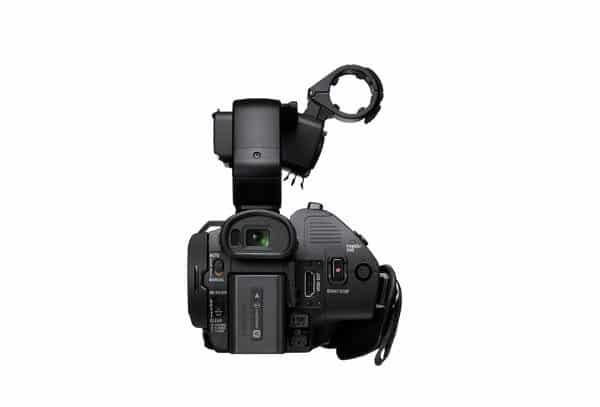

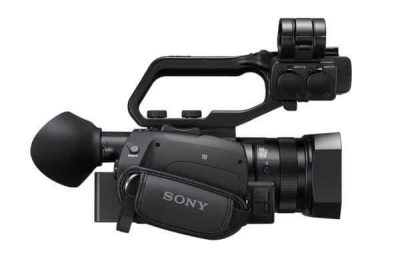

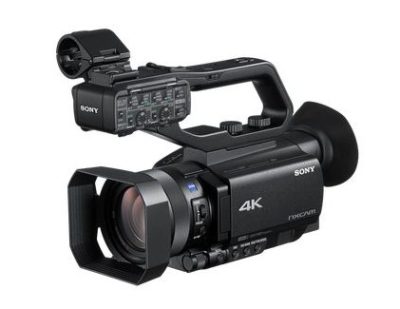

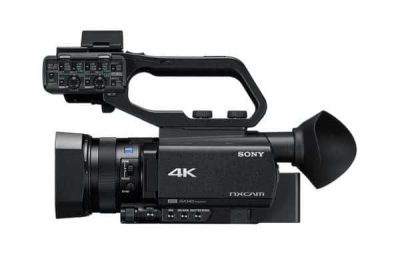

Sony HXR-NX80 4K NXCAM Palm-Sized Camcorder with Fast Hybrid AF

USD 2,200.00

In stock

  • Instant HDR workflows
  • Revolutionary imaging performance with Exmor RS
  • Enhanced Fast Hybrid auto focus captures action
  • Professional quality 4K (QFHD) and HD
  • Dual XLR inputs
Compare
SKU: HXR-NX80 Category:

Details on the Sony HXR-NX80 Full HD XDCAM with HDR and Fast Hybrid AF

The Sony HXR-NX80 Full HD XDCAM is a modern camcorder with all the new modifications that technology has to offer. It is one of the few cameras with phase-detection Autofocus which uses a complex high-density placement of autofocus points to improve camera focus and subject tracking. The camera also has High Dynamic Range (HDR) capabilities that improve video quality leaving a very clear and sharp image.

This HDR functionality is very effective in video shooting since it eliminates the need for colour grading in post-production of the video taken. The Sony camera comes with a preinstalled HD filter which increases exposure and controls depth-of-field. In the Slow and Quick motion setting, Sony HXR-NX80 can shoot HD video quality with frame rates of up to 120 frames per second. In today’s world of technological advancement, the Sony HXR-NX80 is very ideal as it takes up first position in quality video production and recording. The Sony HXR-NX80 can be used in various different settings including; events, education videos, corporate videos, documentaries and many more.

Features of the Sony HXR-NX80 Full HD XDCAM

The Sony HXR-NX80 has a small 3.5” touchscreen LCD monitor which does more than just display the camera’s view. The small screen is normally used in increasing focus and targeting the subject. Sony HXR-NX80 Full HD XDCAM is built to record high quality videos specifically 4K in XAVC S 4K at 100mbps while streaming at a speed of 2.4 to 5Ghz. The Sony NX80 zoom of the high-accuracy lens is quite impressive holding a 12x Zeiss optical zoom.

For the digital zoom, 18x 4K is the capacity with 24x if recording in plain HD. The camera comes with a 1” Exmor RS CMOS sensor with 14.2MP. The camera has two SD memory card slots where the footage is saved simultaneously. The Sony NX80 footage may also be saved in relay where one memory card saves the data while the other creates a backup. Audio slots include 2 three-pin XLR audio inputs that support mic and external microphones. If external microphones lack, the internal microphone of the camera can still be relied on when recording a scene.

Fast Hybrid Autofocus

Unlike previous versions of the Sony camera, the Sony HXR-NX80 has been specifically improved and designed to achieve accuracy in autofocus. Now even faster than ever, the focusing and tracking capabilities of the Sony HXR-NX80 are very high and effective in recording quality videos. The Fast Hybrid Autofocus in Sony HXR-NX80 is aimed at making shooting objects in motion easier as well as increasing clarity in videos taken.

When in movie recording mode, you can rely on phase detection Autofocus frames to pinpoint and hold your subject into focus. The Sony NX80 Autofocus (AF) is designed in such a way that it focuses solely on the targeted subject and is not hindered or disrupted by any objects that may be before the subject. The 3.5” touchscreen displays the camera’s view. Here, the photographer can use the displays on the screen to target and focus on the subject. Fast hybrid autofocus is focused mainly on time and how fast the lens will focus on a certain subject.

4K High Dynamic Range

The Sony HXR-NX80 is specially designed with the 4K HDR functionality. This technology is aimed at improving the nature of videos recorded and improving clarity as well. This functionality can help put aside the need to edit videos after shooting because of the rich quality they have. Today, the Sony NX80 4K HDR definition is probably the highest and most precise resolution that exists.

While the usual 1080 pixels has around 1920 pixels across, 4K video quality has 4000 pixels across the screen. This means that in the same screen the 4K recording has more pixels which means more content and more clarity in videos and images. The Sony HXR-NX80 Full HD XDCAM is well equipped to produce the best quality of videos through 4K HDR recording.

The Sony HXR-NX80 Full HD XDCAM as a reliable camcorder

The Sony HXR-NX80, first of all, is a modern camcorder with most of its features modified and improved. For instance, during HD mode, you can get up to 960 fps which is very clear compared to other camcorders. This specific brand of Sony camcorder works best whilst recording workflow in different settings. Unlike other camcorders the same price as the Sony HXR-NX80, it is not bulky and large to the point of annoyance.

Sony have managed to squeeze all the great features and functionalities in a smaller size camcorder which seems to have it all. On top of this, the arrangement of buttons and switches on the Sony HXR-NX80 is very convenient. It is not likely to confuse you and is very easy to learn. The structure in general is firm and solid as opposed to other fragile brands. The Sony NX80 is the ideal camcorder for professional work and activities.

Fast Hybrid AF

  • Maximum273 points, 84% wide AF coverage
  • Fast AF response
  • High subject tracking performance
  • Detailed AF settings

Diverse recording functions

  • Instant HDR – HLG (Hybrid Log-Gamma) system
  • S-Gamut3/S-Log3 recording, Picture Profile
  • Super Slow Motion / Slow & Quick Motion
  • 1.0-type stacked Exmor RS™ CMOS sensor
  • Enhanced BIONZ X™ with front-end LSI
  • Wide-angle 29mm ZEISS Vario-Sonnar T* 12x optical zoom lens

Advanced operation

  • High-resolution OLED viewfinder and LCD
  • Same UI as processional cameras
  • Various manual operations

Default 4K recording
Unlike PXW-X70, Both PXW-X90 and NX 80 are of 4K HDR Professional Camcorder, It requires  NO optional software for

  • XAVC QFHD(PXW-Z90),
  • XAVC S 4K(HXR-NX80)
  • 100Mbps recording

I/O Connectors
Variety of external input / output terminals to help professional video production

  • HDMI out with TC embedded & Rec Trigger
  • 3G-SDI with Rec trigger & TC
  • Multi/Micro USB
  • HeadPhone and
  • Sony remote input

New Wi-Fi Features using the CBM App
Now with the introduction of new Sony CBM app, using your smartphone to enable prompt exchange live news contents to remote-side operator is made possible.

You can

  • Wifi monitoring the content via your smart phone
  • Use your smartphone for Remote control of the cameras
  • Proxy File upload from your SD/MS card  using ftp
  • Hi-res Transfer of file from your SD/MS card
  • Copy Proxy file ro Smartphone

Sony integrated simple Live Solution
Whether it is PXW-Z90 or  HXR-NX80, both models work perfectly well with Sony MCX-500 ( 4 channel Switcher ) and RM-30BP ( Remote Controller ) in a Simple 4 x Cameras live event set up.

It make life simple and yet produce broadcast-quality live events with tally light.
The indicator around the Cameras LCD screen will indicate PGM in red while preview in Green.

  • Amazingly fast precision auto focus
  • First NXCAM professional palm camcorder with 4K HDR
  • Super slow motion up to 960fps* and S&Q motion up to 120fps**
  • Versatile connections for professional workflows
  • Remote operation
  • Dual media slots
  • Multi-Interface (MI) Shoe
  • Superb quality monitoring with enhanced OLED viewfinder
  • Simple live solution
  • Revolutionary imaging performance with Exmor RS
  • Enhanced Fast Hybrid auto focus captures action
  • Instant HDR workflows
  • Stunning slow motion in Full HD
  • Professional quality 4K (QFHD) and HD
  • Networked for high mobility
  • Wide-angle zoom lens with great control

* 960 fps (NTSC). 1000 fps (PAL).
** 120fps (NTSC)/ 100fps (PAL)

General
Mass Approx 955g (with lens hood, eyecup)
Approx. 2 lb 1.7 oz (with lens hood, eyecup)
Approx. 1320g (with lens hood, handle, eyecup, NP-FV70A battery)
Approx. 2lb 14.6oz (with lens hood, handle, eyecup, NP-FV70A battery)
Dimensions (W x H x D) 121.0mmx104.0mmx274.5mm (With the accessories (lens hood, large eyecup) ,excluding the grip belt and including the projecting parts)
4 7/8 x 4 1/8 x 10 7/8 inches (With the accessories (lens hood, large eyecup) , excluding the grip belt and including the projecting parts)
130.0×181.5×287.0 mm (With the accessories (lens hood, large eyecup, XLR handle unit) , excluding the grip belt and including the projecting parts)
5 1/8 x 7 1/4 x 11 3/8inches (With the accessories (lens hood, large eyecup, XLR handle unit) , excluding the grip belt and including the projecting parts)
Power Requirements DC In: 8.4V
Battery: 7.4V
Power Consumption Approx. 5.7 W (while recording with viewfinder and XAVC S 4K 2160/30p 60Mbps)
Approx. 6.1 W (while recording with LCD and XAVC S 4K 2160/30p 60Mbps)
Operating Temperature 0°C to 40°C
32°F to 104°F
Storage Temperature -20°C to +60°C
-4°F to +140°F
Battery Operating Time Approx. 155min. with NP-FV70A battery
(while recording with LCD, XAVCS 4K 2160/30p, 60Mbps)

Approx. 265 min. with NP-FV70A battery
(while playing with LCD, XAVCS 4K 2160/30p, 60Mbps)

Recording Format (Video) XAVC S 4K : MPEG-4 AVC/
H.264 4:2:0 Long profile

XAVC S HD : MPEG-4 AVC/
H.264 4:2:0 Long profile

XAVC S Proxy: MPEG-4 AVC/H.264 4:2:0 Long profile
AVCHD : MPEG-4 AVC/H.264 AVCHD 2.0 format compatible

Recording Format (Audio) XAVC S 4K : Linear PCM 2ch 16bit, 48kHz
XAVC S HD : Linear PCM 2ch, 16bit, 48kHz
XAVC S Proxy : Linear PCM 2ch, 16bit, 48kHz
AVCHD : Linear PCM 2ch, 16bit, 48kHz / Dolby Digital 2ch, 16bit, 48kHz
Recording Frame Rate XAVC S 4K (3840 x 2160) @29.97p, 25p, 23.98p 100Mbps/60Mbps
XAVC S HD (1920 x 1080) @120p, 100p 100Mbps/60Mbps
XAVC S HD (1920 x 1080) @59.94p, 50p 50/25Mbps
XAVC S HD (1920 x 1080) @29.97p, 25p 50/16Mbps
XAVC S HD (1920 x 1080) @23.98p 50Mbps
XAVC S Proxy (1280 x 720) @59.94p, 50p, 29.97p, 25p, 23.98p 9Mbps
XAVC S Proxy (1280 x 720) @59.94p, 50p, 29.97p, 25p, 23.98p 3Mbps
AVCHD (1920 x 1080)@59.94p, 50p, PS mode (28 Mbps)
AVCHD (1920 x 1080) @59.94i/50i FX mode (24 Mbps) FH mode(17 Mbps)
AVCHD (1920 x 1080) @29.97p/25p/23.98p, FX mode (24 Mbps)
AVCHD (1440 x 1080) @59.94i, 50i LP mode (5Mbps)
AVCHD (1280 x 720) @59.94p, 50p, HQ mode (9 Mbps)
Recording/Playback Time XAVC S 4K, HD @LPCM 2ch 100 Mbps
Approx. 75 min with 64 GB memory card
XAVC S 4K, HD @LPCM 2ch 60 Mbps
Approx. 125 min with 64 GB memory card
XAVC S HD @LPCM 2ch 50 Mbps
Approx. 150 min with 64 GB memory card
XAVC S HD @LPCM 2ch 25 Mbps
Approx. 300 min with 64 GB memory card
XAVC S HD @LPCM 2ch 16 Mbps
Approx. 465 min with 64 GB memory card
AVCHD @LPCM 2ch PS Mode
Approx. 305 min with 64 GB memory card
AVCHD @LPCM 2ch FX Mode
Approx. 360 min with 64 GB memory card
AVCHD @LPCM 2ch FH Mode
Approx. 495 min with 64 GB memory card
AVCHD @LPCM 2ch HQ Mode
Approx. 880 min with 64 GB memory card
Recording/Playback Time (cont) AVCHD @LPCM 2ch LP Mode
Approx. 1540 min with 64 GB memory card
Lens
Lens Mount Fixed
Zoom Ratio 12x (optical), servo
Focal Length f=9.3 – 111.6mm
equivalent to f=29.0 – 348.0mm on 35 mm lens(16:9)
equivalent to f=32.8 – 393.6mm on 35mm lens(3:2)
Iris F2.8 – F4.5
auto/manual selectable
Focus AF/MF selectable, 10 mm to ∞ (Wide), 1000 mm to ∞ (Tele)
Image Stabilizer ON/OFF selectable, shift lens
Filter Diameter M62 mm
Camera Section
Imaging Device (Type) 1.0-type (13.2mm x 8.8mm) back-illuminated Exmor RS CMOS sensor
Effective Picture Elements Approx.14.2M pixels (16:9) / Approx.12.0M pixels (3:2)
Built-in Optical Filters OFF: Clear, 1 : 1/4ND, 2: 1/16ND, 3: 1/64ND
Minimum Illumination Standard [60i] 3lux(1/60 Shutter Speed, gain 33dB)
Standard [50i] 3lux(1/50 Shutter Speed, gain 33dB)

LowLux [60i] 1.7lux(1/30 Shutter Speed, gain 33dB)
LowLux [50i] 1.7lux(1/25 Shutter Speed, gain 33dB)

Shutter Speed [60i]: 1/8 – 1/10,000 (1/6 – 1/10,000 when shooting with 24p) (1/125 – 1/10,000 when shooting with 120p) [50i]: 1/6 -1/10,000 (1/100 – 1/10,000 when shooting with 100p)
Slow & Quick Motion Function [60i]:2160p:Frame rate selectable 1,2,4,8,15,30fps
[50i]:2160p:Frame rate selectable 1,2,3,6,12,25fps
[60i]:1080p:Frame rate selectable 1,2,4,8,15,30,60,120fps
[50i]:1080p:Frame rate selectable 1,2,3,6,12,25,50,100fps
Super Slow Motion [60i]1080p:Frame rate selectable 240,480,960fps
[50i]:1080p:Frame rate selectable 250,500,1000fps
White Balance Preset (Indoor:3200K, Outdoor:5600K ± 7 steps, Color temparature set range:2300-15000K) One push A, B, Auto selectable
Gain -3, 0, 3, 6, 9, 12,15, 18, 21, 24, 27, 30, 33 dB, AGC
Gamma Curve Selectable
Input/Output
Audio Input XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
Video Output Integrated into Multi/Micro USB jack (x1), Composite 1.0Vp-p, 75Ω
Audio Output Integrated into Multi/Micro USB jack
USB Multi/Micro USB jack (x1)
Headphone Output Stereo mini jack (x1)
Speaker Output Monaural
DC Input DC jack
Remote Integrated into Multi/Micro USB jack, Stereo mini-mini jack (Φ2.5mm)
HDMI Output Type A (x1)
Monitoring
Viewfinder 1.0cm (0.39 type) OLED Approx. 2.36M dots
LCD 8.8cm (3.5 type) Approx. 1.56M dots
Built-in Microphone
Built-in Microphone Omni-directional stereo electret condenser microphone
Media
Type Memory Stick Pro Duo™ and SD/SDHC/SDXC compatible x1 SD/SDHC/SDXC x1
Wi-Fi/NFC
Supported format IEEE 802.11 b/g/n
Frequency band 2.4 GHz bandwidth
Security WEP/WPA-PSK/WPA2-PSK
NFC NFC Forum Type 3 Tag compliant
Notes
* [60i]: when [60i/50i SEL] is set to 60i
[50i]: when [60i/50i SEL] is set to 50i
  • XLR handle unit (1)
  • Lens hood (1)
  • Lens cap (1)
  • Large eyecup (1)
  • Accessory shoe kit (1)
  • USB cable (1)
  • Rechargeable battery pack (NP-FV70A) (1)
  • AC Adaptor (AC-L200D) (1)
  • Power cord (mains lead) (1)
  • Wireless Remote Commander (RMT-845) (1)
  • Lithium battery (CR2025 for the Wireless Remote Commander) (1), Pre-installed to the Wireless Remote Commander
  • Operating Guide (2)
  • CD-ROM "Manuals for Solid-State Memory Camcorder" (1)
  • Warranty (1)
