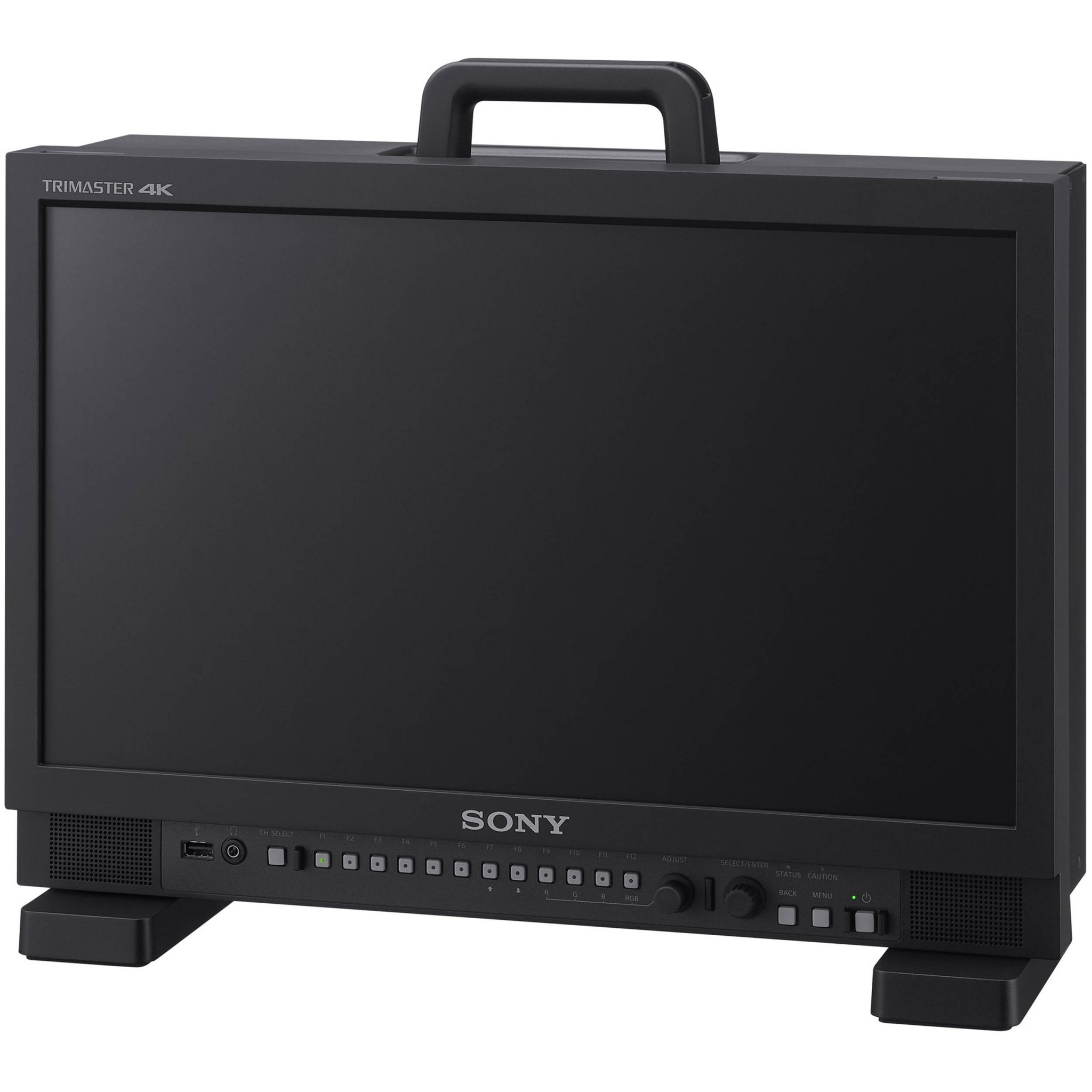

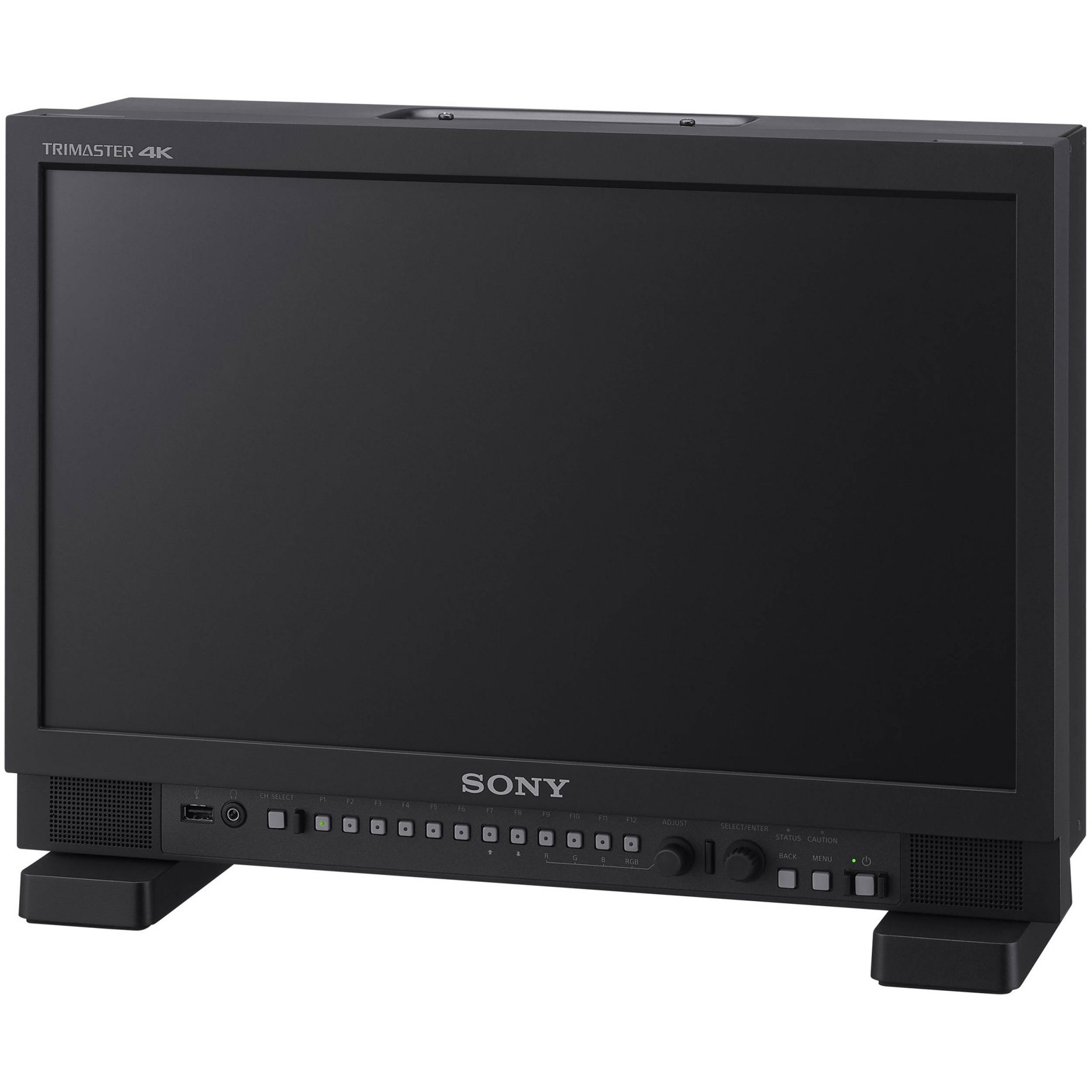

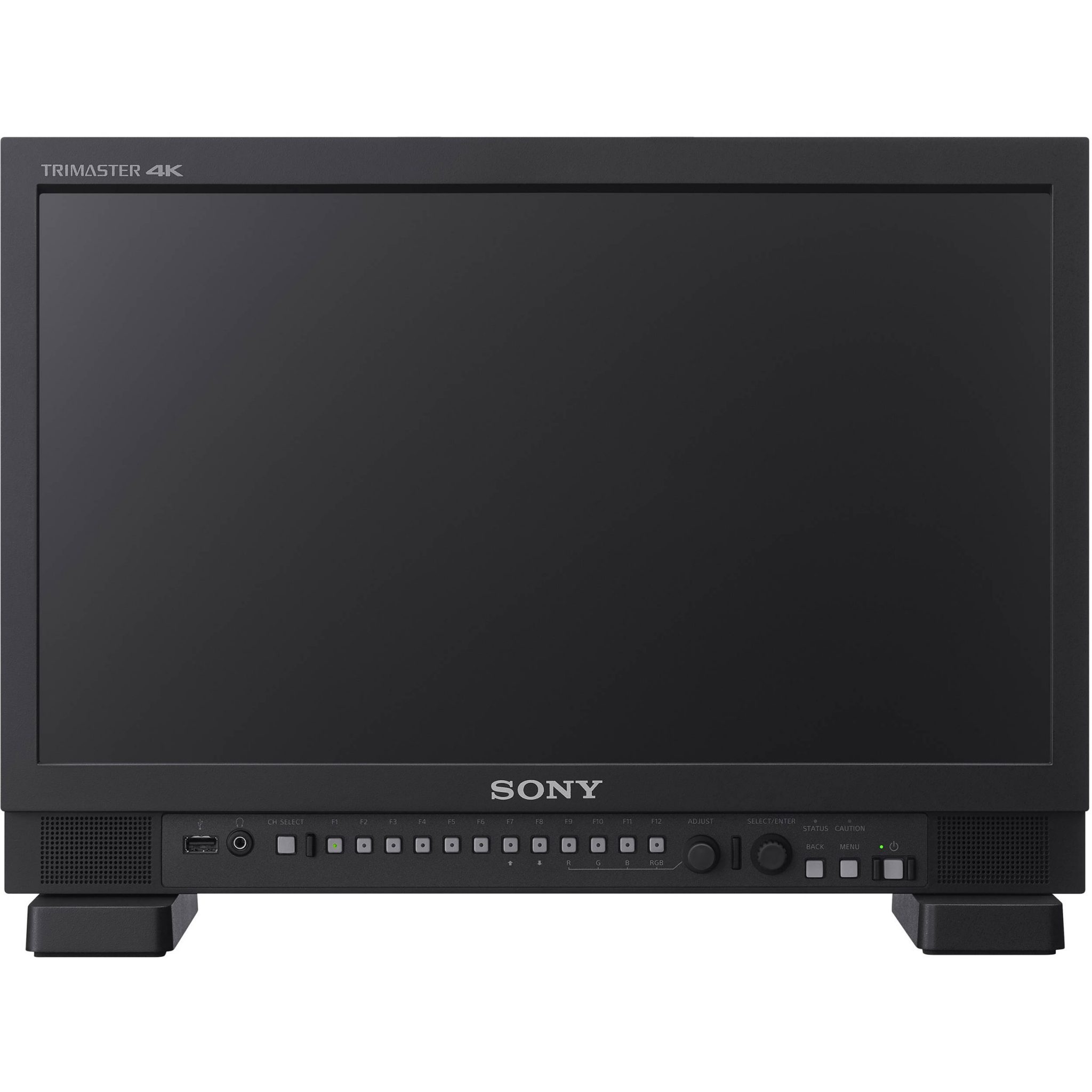

Sony PVM-X1800 18.4-inch 4K HDR TRIMASTER High-Grade Monitor

Color-matched 4K HDR picture monitors with the BVM-HX310 4K master monitor, ideal for various 4K productions

The Sony PVM-X1800 18.4-inch 4K HDR high-grade picture monitor incorporates the Sony specified premium LCD panel and offers 1,000-cd/m2 luminance and color matching with 4K HDR master monitor BVM-HX310, making group monitoring easy on set, in the studio, and as part of an OB van’s wall or 19″ EIA racks for editing, audio mixing, etc.

TRIMASTER realized accurate color reproduction, precise imaging and quality picture consistency

Sony PVM-X1800 TRIMASTER is a design architecture for accurate picture reproduction, precise imaging and quality picture consistency. There are many advantages to the panel control and signal-processing system, such as fast processing, accurate linearizing of input signals with the Optical Electrical Transfer Function, accurate color reproduction, etc.

Dynamic Contrast Drive and Black Detail High/Mid/Low

Dynamic Contrast Drive is a new backlight-driving system that dynamically changes backlight luminance to adapt to the scene of a frame. You can conveniently check the overall balance of highlights and lowlights at a glance. This monitor can perform dynamically at a 1,000,000:1 contrast ratio using this drive.

From 12G-SDI and Quad-Link 3G-SDI to HD-SDI, as well as HDMI

The Sony PVM-X1800 can accept 12G-SDI from the latest device, and it can input quad-link 3G-SDI and a single HD-SDI for a traditional device. This input utility uses HDMI, and supports from 640 x 480/60P PC signal to 4096 x 2160/60P 4:2:2 YCBCR 12bit.

Various scopes

Both the waveform monitor and the vector scope can be displayed simultaneously, with scales for either HDR or SDR. You can conveniently check both input signal level and output luminance with the WFM’s HDR scales. The waveform has three different displays: luminance, RGB/YCBCR parade and RGB/YCBCR overlay with gamut error display. The waveform of a specified line can also be displayed.

Unique Quad View display with User 3D LUT

The Sony PVM-X1800 provides a Quad View display with individual settings for EOTF (SDR/HDR), color space, transfer matrix, color temperature, contrast, brightness, SDI/HDMI and RGB/YCBCR, as well as User 3D LUTs for each display view.

New user interface and Channel Select button

The OSD is largely changed, and operating this monitor is quicker and more intuitive. The design of the menu allows you to review and change settings very quickly. The Channel Select button protects an operator from inadvertent setting errors.

Handy features for field operation

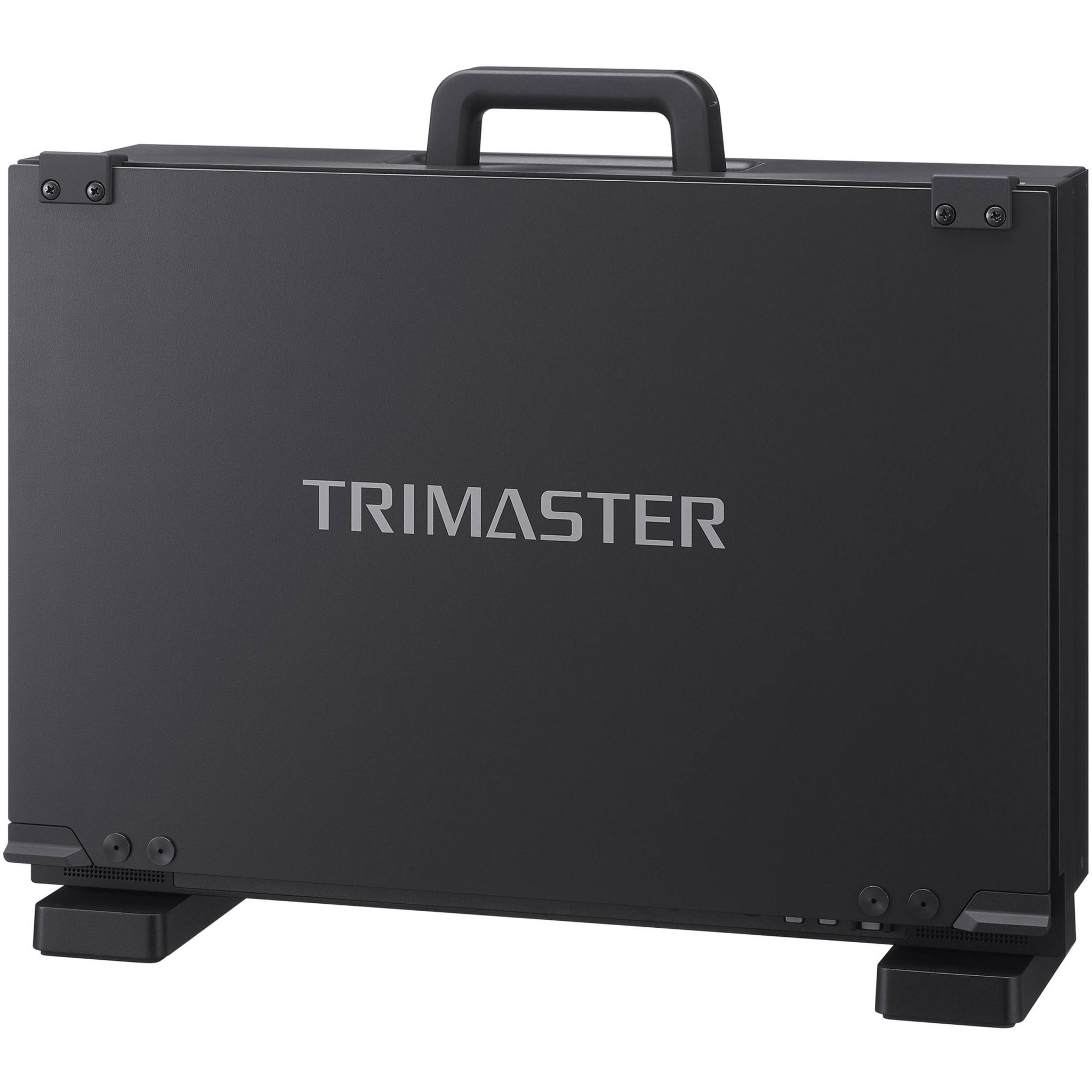

DC-24-V operation allows you to operate in the field, regardless of the large 18.4″ screen and the very high 1,000-cd/m2 luminance. The optional protection panel* protects the premium LCD screen from inadvertent shocks. User 3D LUTs and yoke mount are also supported. Dynamic Contrast Drive is very useful for night-scene shooting.

*The optional protection panel cannot be used to protect the screen from the heat of backlights while the monitor is in operation.

Various mounting capabilities

Regardless of the large 18.4-inch screen size, the PVM-X1800 can be installed onto a 19-inch EIA-standard rack for studio and OB-van uses. Yoke mount and VESA mount are also convenient for installing it onto a C stand for field use, or a desktop arm for editing.

Powerful stereo sound with audio muting

The Sony PVM-X1800 incorporates stereo speakers (2 W + 2 W) with audio muting.

Features

Dynamic Contrast Drive
Black Detail High/Mid/Low
Various signal settings and automatic settings with video payload ID
4K video input versatility for both brand-new and traditional devices
New user interface
4K/HD scopes with HDR/SDR scale and audio level meter display
User 3D LUT
DC operation
Yoke-mount and Wall-mount capability
Sony’s unique Quad View display
Room clearance connector panel design
4K (4096 x 2160) and 2K (2048 x 1080) input
Flexible and variable area markers, aspect marker and center marker
Optimized low-latency I/P conversion
High-sound-pressure stereo speakers (2 W + 2 W) with audio muting

Specifications

Picture Performance
Panel	∝-Si TFT Active Matrix LCD
Picture Size (Diagonal)	18.4 inches (469.2 mm)
Effective Picture Size (H x V)	16 1/8 x 9 1/8 inches (408.96 x 230.04 mm)
Resolution (H x V)	3840 x 2160 pixels
Aspect	16:9
Display colors	Approx. 1.07 billion colors
Panel frame rate	48 Hz / 50 Hz / 60 Hz (48 Hz and 60 Hz are also compatible with 1/1.001 frame rates)
Viewing angle (panel specification)	89°/89°/89°/89° (up/down/left/right contrast > 10:1)
Color temperature	D60, D65, D93, DCI*1, and user 1/10 (5,000 K to 10,000 K adjustable)
Luminance (panel specification) (typical)	1000 cd/m2
Color space (Color gamut)	ITU-R BT.20202, ITU-R BT.709, DCI-P3, S-GAMUT32, S-GAMUT3.Cine*2
Transmission Matrix	ITU-R BT.2020 (Non-constant luminance is supported), ITU-R BT.709
EOTF	2.2, 2.4, 2.6, 2.4 (HDR), S-Log3, S-Log3 (Live HDR), SMPTE ST 2084, ITU-R BT.2100 (HLG)

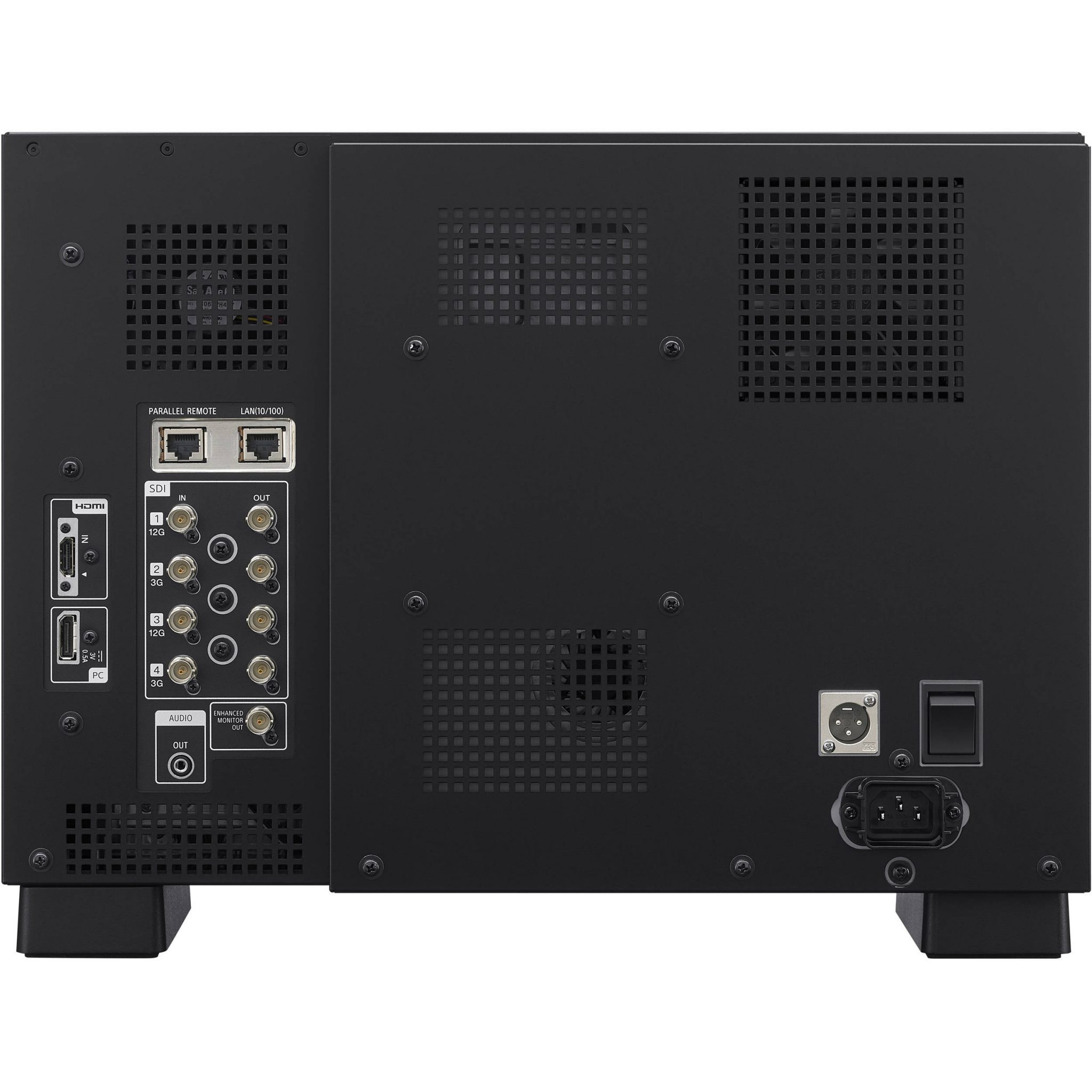

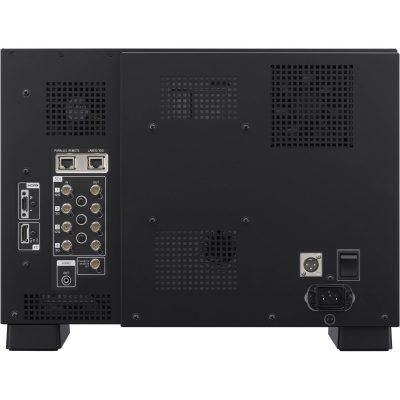

Input
SDI	(12G/6G/3G/HD-SDI) BNC (x2), (3G/HD-SDI) BNC (x2), Input impedance: 75 Ω unbalanced
HDMI Input	HDMI (HDCP2.3/1.4) (x1)
Parallel Remote	RJ-45 8-pin (x1) (Fixed pin assignment)
Serial Remote (LAN)	Ethernet, 10BASE-T/100BASE-TX RJ-45 (x1)
DC Input	XLR-type 3-pin (male) (x1), DC 22 to 32 V (output impedance 0.05 or less)
Output
SDI Output	(12G/6G/3G/HD-SDI) BNC (x2), (3G/HD-SDI) BNC (x2), Output impedance: 75 Ω unbalanced
Audio Monitor Output	Stereo mini jack (x1)
Speaker (Built-in) Output	2.0 W+2.0W (Stereo)
Headphone Output	Stereo mini jack (x1)
General
Power Requirements	AC 100 to 240 V, 50/60 Hz DC 22 to 32 V
Operating Temperature	0°C to 35°C (32°F to 95°F) Recommended: 20°C to 30°C (68°F to 86°F)
Operating Humidity	30% to 85% (no condensation)
Storage / Transport Temperature	-20°C to +60°C (-4°F to +140°F)
Storage / Transport Humidity	0% to 90%
Operating / Storage / Transport Pressure	700 hPa to 1060 hPa
Dimensions (W x H x D)	17 3/8 x 12 1/4 x 5 7/8 inches (444 x 310 x 148.5 mm3) (without monitor handle and monitor stand) 17 3/8 x 14 5/8 x 6 3/4 inches (444 x 368.7 x 168.5 mm3) (with monitor handle and monitor stand)*4
Mass	18 lb 1 oz (approx. 8.2 kg)
Notes
1 DCI: x=0.314, y=0.351 2 The PVM-X1800 does not cover selected color space in full. 3 Without projection parts. 4 Height without handle is 13.05 inches.

In The Box

AC power cord (1)
AC plug holder (1)
CD-ROM (1)
Before Using This Unit (1)
