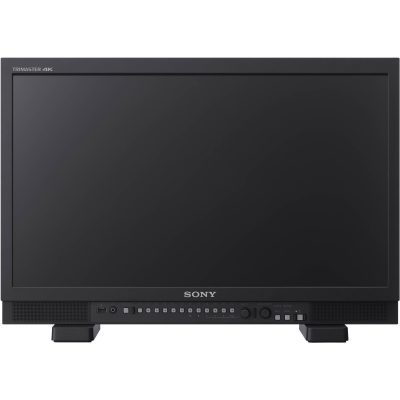

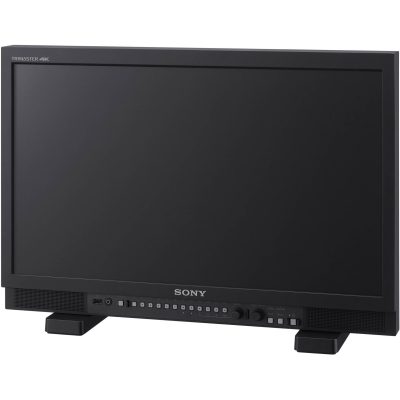

Sony PVM-X2400 24-inch 4K HDR TRIMASTER High Grade Picture Monitor
SKU: PVM-X2400 Category: Monitor
Sony PVM-X2400 24-inch 4K HDR TRIMASTER High Grade Picture Monitor
Color matched 4K HDR picture monitors color with 4K master monitor BVM-HX310 ideal for various 4K productions
Sony PVM-X2400 24-inch, 4K HDR high grade picture monitor incorporates the Sony specified premium LCD panel and offers 1000 cd/m2 luminance and color matching with 4K HDR master monitor BVM-HX310, making group monitoring easy in onset, Studio and OB van’s wall and 19” EIA racks, Editing, Mixing audio, etc.
TRIMASTER realized Accurate colour reproduction, Precise imaging and Quality Picture Consistency
TRIMASTER is a design architecture for accurate picture reproduction, precise imaging and Quality picture consistency.
There are many advantages in the panel control and signal processing system such as fast processing, accurate linearizing of an input signal with Optical Electrical Transfer Function, accurate color reproduction, etc.
Dynamic Contrast Drive and Black Detail High/Mid/Low
Sony PVM-X2400 Dynamic contrast drive is a new backlight driving system that dynamically changes backlight luminance to adapt for a scene of a frame. You can conveniently check a total balance of highlights and low lights at a glance. This monitor can dynamically perform 1,000,000:1 contrast ratio by this drive.
From 12G-SDI and Quad-Link 3G-SDI to HD-SDI as well as HDMI
The Sony PVM-X2400 can accept 12G-SDI from the latest device and it can input quad-link 3G-SDI and a single HD-SDI for a traditional device. This input utility is HDMI supports from 640×480/60P PC signal to 4096 x 2160/60P 4:2:2 YCBCR 12bit.
Both waveform monitor and vector scope can simultaneously be displayed with scales for both HDR and SDR. You can conveniently check both input signal level and output luminance by the HDR scales of the WFM. The waveform has three different displays of either Luminance, RGB/YCBCR parade or RGB/YCBCR overlay with the Gamut error display. The waveform of a specified line can also be displayed.
Unique quad view display with User 3D LUT
The Sony PVM-X2400 provides a quad view display, with individual settings of EOTF (SDR/HDR), color space, transfer matrix, color temperature, contrast, brightness, SDI/HDMI, RGB/YCBCR, as well as User 3D LUTs for each display view
New User Interface and Channel select button
OSD is largely changed and operating this monitor is quicker and more intuitive. Design of the menu allow you to review the settings and change some settings very quickly. The Channel select button protects an operator from inadvertent setting errors.
Handy features for field operation

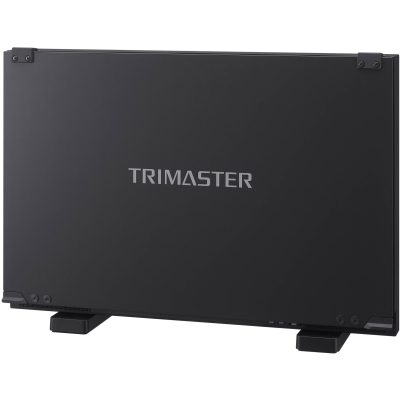

DC 24V operation allows you to operate it outfield regardless of 24” large screen and 1000 cd/m2 very high luminance. The optional protection panel* protects the premium LCD screen from inadvertent shocks. User 3D LUTs and Yoke-mount are also supported. Dynamic Contrast Drive is very useful for night-scene shooting.
* Optional protection panel cannot be used with the monitor in operation for protecting the screen from heat of backlights.
Various mount capability
Regardless of 24inch large screen size, the Sony PVM-X2400 can be installed to 19inch EIA standard rack for studio and OB van uses. Yoke-mount and VESA mount are also convenient for installing it to a C stand for field use and a Desktop arm for editing.
Powerful stereo sound with audio muting
The Sony PVM-X2400 incorporates Stereo speakers(2W+2W) with audio muting.
- Dynamic Contrast Drive
- Black Detail High/Mid/Low
- New User Interface
- User 3D LUT
- Sony’s unique Quad View display
- DC operation
- Yoke-mount and Wall-mount capability

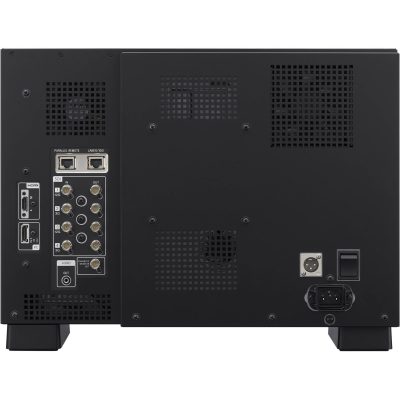

- Room clearance connector panel design
- 4K (4096 x 2160) and 2K (2048 x 1080) input
- Power-on setting
- Optimised low-latency I/P conversion
- Zoom function
- Various Basic Functions
- High sound pressure stereo speakers(2W+2W) with audio muting
|Panel||α-Si TFT Active Matrix LCD|
|Picture Size (Diagonal)||609.6 mm (24 inches)|
|Effective Picture Size (H x V)||531.6 x 299.1 mm (21 x 11 7/8 inches)|
|Resolution (H x V)||3840 x 2160 pixels|
|Display colours||Approx. 1.07 billion colours|
|Panel frame rate||48 Hz / 50 Hz / 60 Hz (48 Hz and 60 Hz are also compatible with 1/1.001 frame rates)|
|Viewing angle (panel specification)||89°/89°/89°/89° (up/down/left/right contrast > 10:1)|
|Colour temperature||D60, D65, D93, DCI*1, and user 1-10 (5,000 K to 10,000 K adjustable)|
|Luminance (panel specification)|
|Colour space (Colour gamut)||ITU-R BT.2020*2, ITU-R BT.709, DCI-P3, S-GAMUT3*2, S-GAMUT3.Cine*2|
|Transmission Matrix||ITU-R BT.2020 (Non-constant luminance is supported), ITU-R BT.709|
|EOTF||2.2, 2.4, 2.6, 2.4 (HDR), S-Log3, S-Log3 (Live HDR), SMPTE ST 2084, ITU-R BT.2100 (HLG)|
|SDI||(12G/6G/3G/HD-SDI) BNC (x2), (3G/HD-SDI) BNC (x2), Input impedance: 75 Ω unbalanced|
|HDMI Input||HDMI (HDCP2.3/1.4) (x1)|
|Parallel Remote||RJ-45 8-pin (x1) (Fixed pin assignment)|
|Serial Remote (LAN)||Ethernet, 10BASE-T/100BASE-TX RJ-45 (x1)|
|DC Input||XLR-type 3-pin (male) (x1), DC 22 V to 32 V (output impedance 0.05 Ω or less)|
|SDI Output||(12G/6G/3G/HD-SDI) BNC (x2) , (3G/HD-SDI) BNC (x2) , Output impedance: 75 Ω unbalanced|
|Audio Monitor Output||Stereo mini jack (x1)|
|Speaker (Built-in) Output||2.0 W+2.0W (Stereo)|
|Headphone Output||Stereo mini jack (x1)|
|Power Requirements||AC 100 V to 240 V, 50/60 Hz|
DC 22 V to 32 V
|Operating Temperature||0°C to 35°C (32°F to 95°F) Recommended: 20°C to 30°C (68°F to 86°F)|
|Operating Humidity||30% to 85% (no condensation)|
|Storage / Transport Temperature||-20°C to +60°C (-4°F to +140°F)|
|Storage / Transport Humidity||0% to 90%|
|Operating / Storage / Transport Pressure||700 hPa to 1060 hPa|
|Dimensions (W x H x D)||568 x 382 x 158.5 mm*3 (22 3/8 x 15 1/8 x 6 1/4 inches) (without monitor stand)|
568 x 403.5 x 178.5 mm*3 (22 3/8 x 16 x 7 1/8 inches) (with monitor stand)
|Mass||Approx. 10.5 kg (23 lb 2 oz)|
|*1 DCI: x=0.314, y=0.351|
*2 The PVM-X2400 does not cover selected colour space in full.
*3 Without projection parts.
In the Box
- AC power cord (1)
- AC plug holder (1)
- CD-ROM (1)
- Before Using This Unit (1)
