Sony PXW-FS7 4K Super 35mm XDCAM Camcorder (E-mount)
- High-sensitivity 4K Super 35mm Exmor CMOS sensor
- Super Slow Motion continuous recordings
- Easy settings during one-man operation
- Dust-proof, drip-proof design
- Built-in Multi-Interface (MI) Shoe
- Internal recording in 4K* resolution up to 60fps

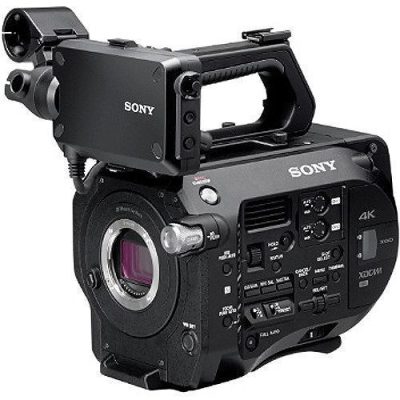

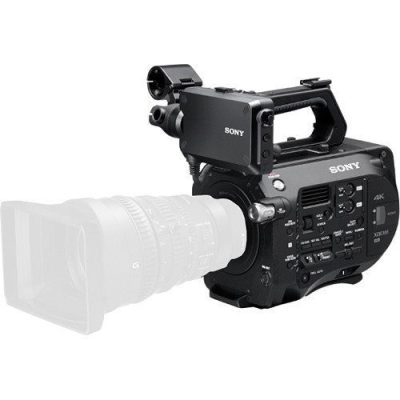

Sony PXW-FS7 4K Super 35mm XDCAM Camcorder (E-mount)
The Sony PXW-FS7 4K reflects years of intense conversations we’ve had with documentary shooters. In response, we completely redesigned the grip, improved the viewfinder, optimized the balance and refined the ergonomics. Of course, the Sony PXW-FS7 4K also reflects Sony’s expertise in 4K and HD codecs, Super 35 sensors and memory recording. The result is the ideal camera for documentaries—and the optimum tool for magazine shows, reality TV, unscripted TV and more.
Shoulder mount comfort without rigs—or rigmarole
It’s ironic that so-called affordable cameras need to be outfitted with expensive rigs, cages, hand grips and accessory viewfinders before they can be properly handheld. The Sony PXW-FS7 4K is different. It was designed from a clean sheet of paper to rest comfortably against your chest or sit well on your shoulder. Zoom, Start/Stop and Assign controls are carefully located on the sculpted, telescoping smart grip. Sony supplies a proper viewfinder that’s perfectly offset to the left with a huge range of fore-aft adjustment.
α mount flexibility
Sony’s α mount lens system offers unsurpassed compatibility with both Sony and third-party lenses. The Sony PXW-FS7 4K E-Mount can take Cinema lenses and SLR lenses with a third party adaptor, as well as Sony’s E-mount and A-mount lenses. So whether buying new lenses, or making use of lenses you’ve already purchased, the Sony PXW-FS7 4Kmakes it easy.
180 fps High Frame Rates
High Frame Rate shots can turn everyday actions into slow-motion ballet, a visual feast of elegant movement. Sony PXW-FS7 delivers a maximum of 180 frames per second (fps) continuous shooting in Full HD. If your project plays at the cinematic 24 fps, you get beautiful 7.5x Super Slow Motion. There’s no sacrifice in bit depth and no “windowing” of the sensor. So there’s no crop factor, no loss in angle of view. The camera also performs Slow & Quick (S&Q) motion from 1 to 180 fps in 1 fps increments. So you can alter the narrative by selectively speeding up or slowing down the action.
Handheld.Long form. Just right.
Sony engineers were on a mission. To provide a sculpted, handheld design that remains comfortable even over the course of long shoots. To support hour after hour of recording—without changing memory cards. To provide the latest in resolution, exposure latitude, and colour reproduction. And to deliver it all in one affordable, practical package. With the Sony PXW-FS7 4K, that mission is a success.
4K Super 35 Exmor® sensor
When it comes to image sensors, size definitely matters. Sony’s Super 35 sensor delivers “bokeh,” the defocused backgrounds made possible by shallow depth of field. A common technique for directing audience attention within the frame, shallow depth of field is far easier to achieve with a large sensor. Other things being equal, a bigger sensor also equates to better low-light sensitivity and lower image noise. And with bigger sensors, the field of view is wider for any given focal length lens. With the Sony PXW-FS7 4K sensor, size is just the beginning.
|Imaging Device (Type)||Super35 type Single-chip Exmor CMOS|
|Effective Picture Elements||17:9 4096 (H) x 2160 (V) |
16:9 3840 (H) x 2160 (V)
|Built-in Optical Filters||Clear, 1/4ND, 1/16ND, 1/64ND|
|Sensitivity (2000 lx, 89.9% reflectance)||Video Gamma: T14 (3840 x 2160/23.98P mode 3200K)|
|ISO Sensitivity||ISO 2000(S-Log3 Gamma D55 Light source)|
|Minimum Illumination||0.7 lx (+18dB,23.98P,Shutter OFF,ND Clear, F1.4)|
|S/N Ratio||57 dB (Y) (typical)|
|Shutter Speed||1/3 sec to 1/9,000 sec|
|Slow & Quick Motion Function||XAVC-I mode 3840×2160: 1 to 60 frames (59.94P, 50P, 29.97P, 23.98P, 25P) |
XAVC-I mode 1920×1080: 1 to 180 frames (59.94P, 29.97P, 23.98P)1 to 150 frames (50P,25P)
XAVC-L mode 3840×2160：1 to 60 frames (59.94P, 50P, 29.97P, 23.98P, 25P)
XAVC-L mode 1920×1080: 1 to 120 frames (59.94P, 50P, 29.97P, 23.98P, 25P)
|White Balance||Preset, Memory A, Memory B(1500K-50000K)/ATW|
|Gain||-3, 0, 3, 6, 9, 12, 18 dB, AGC|
|Audio Input||XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable Mic Reference: -40, -50, -60dBu|
|SDI Output||BNC(x2), switchable with 3G-SDI/HD-SDI |
|USB||USB device, mini-B (x1)|
|Headphone Output||Stereo mini jack (x1) -16dBu 16Ω|
|DC Input||DC jack|
|Remote||Stereo mini-minijack (Φ2.5 mm)|
|HDMI Output||Type A (x1)|
|Option||4-pin, Type A for W-LAN (x1)|
|Filter Diameter||95 mm|
|Focal Length||28mm to 135mm|
|Iris||Nine blades (circular perture) F/4 to F/22 (click or click-less)|
|Lens Mount||Sony E-Mount|
|Note||SEL-28135G 28-135mm lens is supplied as standard with PXW-FS7K model. PXW-FS7 model is supplied without lens.|
- Boyd Cap (1)
- Viewfinder (1)
- Eyepiece (1)
- Grip Remote Control (1)
- USB wireless LAN module IFU-WLM3 (1)
- Wireless remote commander (1) (RMT-845)
- WA Adaptor Bracket (1)
- MPA-AC1 AC Adapter (1)
- BC-U1 battery charger (1)
- BP-U30 battery pack (1)
- Power cord (2)
- USB cable (1)
- Operating Guide (2)
- CD-ROM "Manuales for Solid-State Memory Camcorder" (1)
