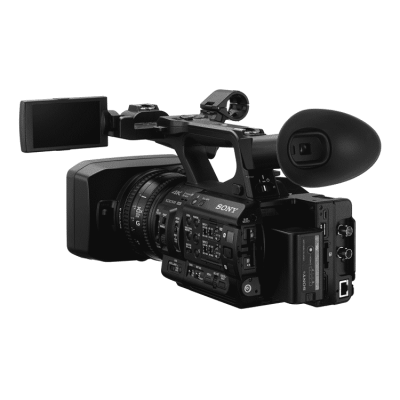

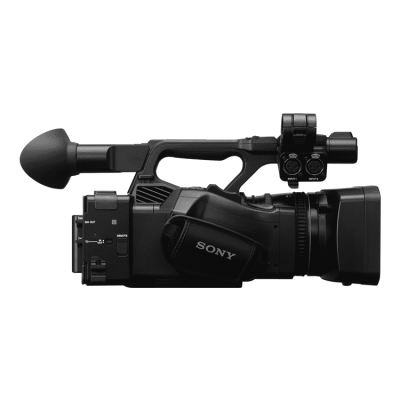

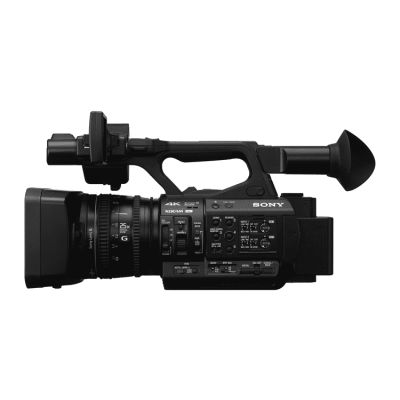

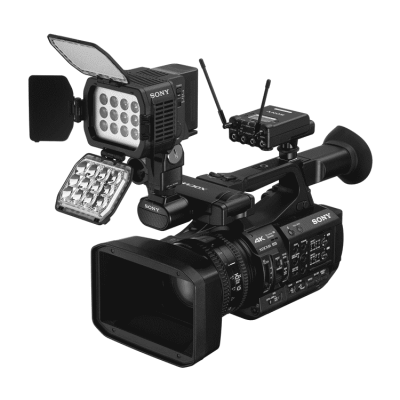

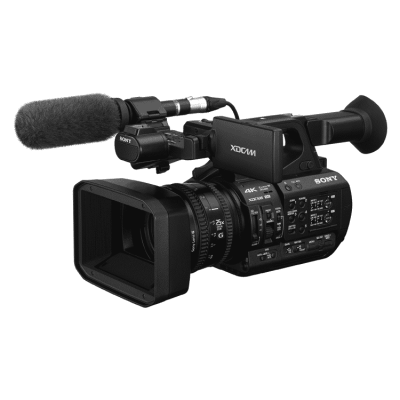

Sony PXW-Z190 4K Three-Chip Handheld XDCAM Camcorder

In stock

  • 4K 1/3-type 3CMOS Sensor
  • Advanced Face Detection AF
  • Built-in electronic Variable ND Filters
  • Instant HDR workflow
  • Dual Multi-Interface (MI) Shoe
  • Dual XLR and 4 Channel Audio
Compare
SKU: PXW-Z190 Category:

Sony PXW-Z190 4K Three-Chip Handheld XDCAM Camcorder

4K 50p/60p with a stunning 25x zoom lens

Sony PXW-Z190 4K superb all-rounder is the de facto choice for a wide range of 4K and HD single camera shoots with an all-new 1/3-type 3CMOS sensor. A powerful 25x zoom lens with three independent lens rings delivers pin-sharp 4K imaging for almost any professional shooting scenario. Advanced Face Detection AF and Sony’s unique Electronic Variable ND filter making shooting great content stress-free.

Advanced workflow features

Sony PXW-Z190 4K Instant HDR means you can deliver stunning imagery quickly without need for additional colour grading. Dual MI Shoe allows simultaneous use of wireless audio and video lighting, while advanced network performance support is easily enabled when required*.

* Requires firmware 2.0 or higher and optional paid upgrade.

A wealth of formats and features for professionals

Sony’s familiar control layout and robust build quality make this a camera you can rely upon. It supports a wide range of formats including XAVC-Long, DVCAM, MPEG HD422/ MPEG HD* and Proxy 1080i. Dual SD slots, 3G-SDI output and Remote Terminal ensure it can support all workflow scenarios.

* Requires firmware 2.0 or higher and optional paid upgrade.

4K 1/3-type 3CMOS Sensor

The Sony PXW-Z190 4K is the world’s first professional camcorder with a 4K (QFHD) 1/3-inch type sensor. Red, blue, and green light are independently captured by separate image sensors within the Exmor RTM system in 3840 x 2160 resolution at up to 60fps. Even if you’re delivering in HD, 4:2:2 10bit recordings will capture detail and image texture that HD sensors simply cannot see.

25x professional zoom lens with three independent rings and large focal length

The Sony PXW-Z190 4K is equipped with a 25x professional zoom lens able to zoom from 28.8mm to 720mm (35mm equivalent). The 1/3-inch type lens has three independent control rings, which allows manual control of focus, zoom and iris, making for better and faster adjustment.

The image can be enlarged without any picture degradation in an HD mode and a 50x zoom equivalent image is captured with sensor cropping extender.

Advanced Face Detection AF

The Sony PXW-Z190 4K features newly developed Face detection AF. You can choose between Face Priority AF and Face Only AF. Simply keep the person in frame and however you move to obtain a better angle, you can be confident the PXW-Z190 will keep your subject in pin-sharp focus.

Instant HDR workflow

Shoot, edit and view HDR content in HLG without the need for additional colour grading. Premium content services are switching to HDR and the Sony PXW-Z190 4K is ready with Hybrid Log-Gamma (HLG) recording, for easy file-based workflows, whilst achieving the image quality of HDR. This simple workflow enables the shooting, editing and viewing of HDR content in HLG, without devoting a lot of time to post-production work and additional colour grading.

  • 4K 1/3-type 3CMOS Sensor
  • 25x professional zoom lens with three independent rings
  • Advanced Face Detection AF
  • Built-in electronic Variable ND Filters
  • Instant HDR workflow
  • Dual Multi-Interface (MI) Shoe
  • Dual XLR and 4 Channel Audio
  • Dual SD media slots
  • Network workflow flexibility
  • High quality QoS Streaming to Network RX station (optional)
  • XDCAM air secure wireless workflow
  • MPEG TS UDP streaming to peripheral common receiver
  • FTP Transfer of proxy clip and high resolution clip to remote servers
  • Wired LAN streaming and file transfer
  • Trimming proxy and high resolution clip prior to sharing
  • XAVC Long GOP recording at QFHD and Full-HD
  • Broadcast-standard MPEG HD422 and MPEG HD
  • DVCAM at 25 Mbps in MXF file format
General
Mass Approx 2.3 kg (body)
Approx. 5 lb 1.1 oz (body)
Approx. 2.8 kg (with lens hood, eyecup, BP-U30 battery, a SD memory card)
Approx. 6 lb 2.8 oz (with lens hood, eyecup, BP-U30 battery, a SD memory card)
Dimensions (W x H x D) 190.0 × 202.0 × 419.7 mm (With the accessories (lens hood, eyecup), excluding the grip belt and including the projecting parts)
7 1/2 x 8 x 16 1/2 inches (With the accessories (lens hood, eyecup), excluding the grip belt and including the projecting parts)
Power Requirements DC In: 12V,
Battery: 14.4 V
Power Consumption Approx. 22W
(while recording with LCD Off, EVF On when the external device connector is not used.)
Approx. 29W
(while recording with LCD On, EVF On when the external device connector is used.)
Operating Temperature 0°C to 40°C
32°F to 104°F
Storage Temperature -20°C to +60°C
-4°F to +140°F
Recording Format (Video) XAVC-L QFHD mode:
VBR, maximum bit rate 150Mbps, MPEG-4 H.264/AVC
XAVC-L HD 50 mode:
VBR, maximum bit rate 50Mbps, MPEG-4 H.264/AVC
XAVC-L HD 35 mode:
VBR, maximum bit rate 35Mbps, MPEG-4 H.264/AVC
XAVC-L HD 25 mode:
VBR, maximum bit rate 25Mbps, MPEG-4 H.264/AVC

DVCAM mode:
CBR, 25Mbps, DVCAM

Recording Format (Audio) XAVC-L mode:
LPCM 24-bit, 48kHz, 4 channels

DVCAM mode:
LPCM 16-bit, 48kHz, 4 channels

Recording Frame Rate XAVC-L QFHD 150 mode:
3840×2160/59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-L HD 50 mode:
1920×1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P 1280×720/59.94P, 50P
XAVC-L HD 35 mode:
1920×1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
XAVC-L HD 25 mode:
1920×1080/59.94i, 50i

DVCAM mode:
720×480/59.94i, 29.97PsF 720×576/50i, 25PsF

Recording/Playback Time XAVC-L QFHD 150 mode
When using 128GB memory card:
Approx. 88 minutes
XAVC-L HD 50 mode
When using 128GB memory card:
Approx. 240 minutes
XAVC-L HD 35 mode
When using 128GB memory card:
Approx. 325 minutes
XAVC-L 25 mode
When using 128GB memory card:
Approx. 445 minutes

When using 128GB memory card: Approx. 425 minutes

Recording Format (Proxy Audio) XAVC Proxy: AAC-LC, 128 kbps, 2 channels
Recording Format (Proxy Video) XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR
1920×1080, 9Mbps
1280×720, 9Mbps
1280×720, 6Mbps
640×360, 3Mbps
480×270, 1Mbps
480×270, 0.5Mbps
Lens
Lens Mount Fixed type
Zoom Ratio 25x
Focal Length 3.7 mm to 92.5 mm
(equivalent to 28.8 mm to 720 mm on a 35 mm lens)
Iris Auto/manual swichable
F1.6 to F11 and C(close)
Focus 800 mm to ∞ (Macro Off)
10 mm to ∞ (Macro On, Wide)
800 mm to ∞ (Macro On, Tele)
AF/MF/Full MF selectable
Image Stabilizer On/Off selectable, shift lens
Filter Diameter M 82 mm , pitch 0.75 mm
Input/Output
Audio Input XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
LINE:+4, 0, -3dBu/10kΩ
MIC:-80dBu to -30dBu /3kΩ
(0 dBu=0.775 Vrms)
Audio Output Integrated into Multi/Micro USB jack(x1)
SDI Output BNC (x1), 3G/HD/SD selectable
Timecode Input BNC (x1) (switchable to TC out)
0.5V-1.8Vp-p, 3.3kΩ
Timecode Output BNC (x1) (switchable to TC in)
1.0Vp-p, 75Ω
USB USB device, Multi/Micro USB jack (x1)
Host:USB 3.0/2.0 type A(x1)
USB 2.0 type A(x1)
Headphone Output Stereo mini jack (x1)
-16dBu 16Ω
Speaker Output Monaural
Output: 500mW
DC Input DC jack
Remote Stereo mini-minijack (Φ2.5 mm)
HDMI Output HDMI connector (Type A)
Wired LAN RJ-45 (x1), 1000BASE-T, 100BASE-T, 10BASE-T
Monitoring
Viewfinder 1.0 cm (0.39 type)
Approx 2.36M dots
LCD 8.8cm (3.5 type)
Approx. 1.56M dots
Built-in Microphone
Built-in Microphone Omni-directional stereo electret condenser microphone
Media
Type MS/SD(1),SD(1)
Wi-Fi/NFC
Supported Format IEEE 802.11 a/b/g/n/ac
Frequency Band 2.4 GHz bandwidth
5.2/5.3/5.6 GHz bandwidth
Security WEP/WPA-PSK/WPA2-PSK
NFC NFC Forum Type 3 Tag compliant
  • Lens hood (1), Pre-installed to the Camcorder
  • EVF eyecup (1)
  • Battery pack BP-U30 (1)
  • AC Adapter/charger BC-U1A (1)
  • Power Code (1)
  • USB cable (1)
  • Warranty Booklet (1)
  • "Before Using this Unit" (1)
  • CDROM "Operating instructions" (1)
