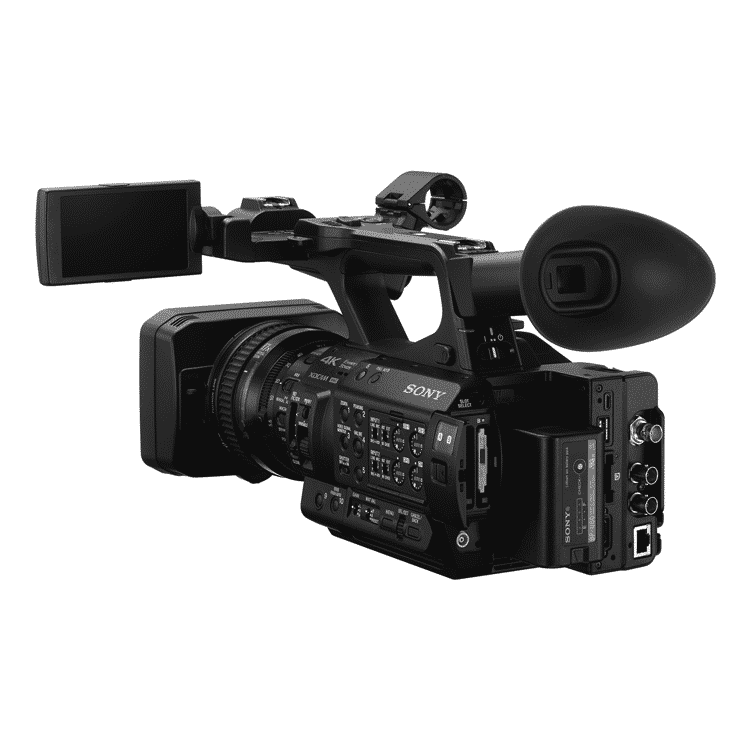

Sony PXW-Z280 4K, Duallink, 12G-SDI XDCAM Memory Camcorder

SGD 9,494.10 excl. Tax

Weight 8 kg
SKU: PXW-Z280 Category:
Description
Click to rate this post!
[Total: 1 Average: 5]

Sony PXW-Z280 4K Professional handheld HDR performance

Sony PXW-Z280 all-new 4K 3CMOS 1/2-type sensor with a deep depth of field and class-leading performance provides the pinnacle of 4K HDR performance in your hand. Face Detection AF keeps your subject in focus, while HLG and S-Log3 provide stunning HDR to suit any workflow.

Revolutionary networking capabilities

Deliver your content faster wherever you are. Sony PXW-Z280 is the world’s first 4K camcorder with a built-in Dual Link Cellular connection for double the uplink performance and reliability. Integrated 12G-SDI supports transfers at up to 12Gbps over a standard SDI cable.

The complete package for professionals

Unpack and shoot from day one. Sony PXW-Z280 Advanced XAVC-Intra and XAVC-Long for 4K QFHD and HD, plus MPEG HD422, MPEG HD, and DVCAM to support any workflow. Familiar with Sony control layout and operation to minimize training requirements.

Spectacular HDR performance

Demand for HDR content is increasing and PXW-Z280 offers you a choice of two powerful workflows. S-Log2/3 is the proven choice for premium applications where you wish to capture as much data as possible for the ultimate flexibility in grading. Instant HDR Workflow is all about speed. Shoot, edit, and view content in Hybrid Log-Gamma (HLG) to deliver content quickly without compromising on imaging expression and quality of content

3CMOS sensor.

The three-half type CMOS is capable of delivering a deep depth of field with very high-quality image quality. The three separate image sensors are capable of capturing the red, blue, and green lights independently. With this feature, you will be able to get high-resolution images. It also enhances sensitivity and gives a wider dynamic range.

The advanced px-z280 is the world’s first camcorder with the dual-link cellular capability of double the uplink performance and reliability. With an advanced LSI, the camera is able to deliver lifelike 4K 4:2:2 10-bit images. This is achieved since the LSI features intelligent noise reduction, enhanced detailed production, and distortion correction technologies. This sensor is more powerful than HD sensors.

The 17x professional zoom lens

The professional PXW-Z280 features a 17x professional HD zoom lens with three independent rings with end-stop and a large focal length. These kinds of lenses are capable of zooming images from 30.3 mm to 515 mm. The three independent rings allow manual control of focus, zoom, and iris. This will enable you to make better and faster adjustments. More interestingly is that the images can be zoomed in without degrading the images.

Best HDR performance

The Sony PXW-Z280 will offer you two workflows. HDR content is now highly demanded. With the s-log 3, you can be able to capture s many images or data as you can to allow for the ultimate flexibility in the final grading. The instant HDR workflow is all about speed. The workflow will involve the shoot, the editing, and the viewing of the images. All this is done in a Hybrid Log Gamma in order to deliver quick content while keeping its quality.

Fast and precise autofocus

It will offer you fast and precise autofocus enabled by the newly developed face detection AF. With this feature, you have the freedom to choose between the face priority and the face only. What you only need to do while capturing an image is to keep the person in the frame. However much you move while looking for the best angle, the Sony PXW-Z280 will keep the subject in pin-sharp focus.

Variable ND filters

This Sony PXW-Z280 camcorder has the integration of electronic variable ND filters. The filters allow fast and agile shooting. No matter the kind of lighting that is at the location of the subject to be captured, the ND filters will automatically be set to fit that kind of lighting. You can choose to set the filters to be fully automatic or as well choose to control them manually.

To learn more about 4K camcorders

Read Our Blog:

The Ultimate Guide to the Best Handheld Professional Camcorders



Specifications
Click to rate this post!
[Total: 1 Average: 5]
General
Mass
Approx 2.6 kg (body)
Approx. 5 lb 11.7 oz (body)
Approx. 3.0 kg (with lens hood, eyecup, BP-U30 battery, a SxS memory card)
Approx. 6 lb 9.8 oz (with lens hood, eyecup, BP-U30 battery, a SxS memory card)
Dimensions (W x H x D)
178.4 ? 202.0 ? 426.3 mm (With the accessories (lens hood, eyecup), excluding the grip belt and including the projecting parts)
7 1/8 x 8 x 16 7/8 inches (With the accessories (lens hood, eyecup), excluding the grip belt and including the projecting parts)
Power Requirements
DC In: 12V,
Battery: 14.4 V
Power Consumption
Approx. 24W
(while recording with LCD Off, EVF On when the external device connector is not used.)
Approx. 31W
(while recording with LCD On, EVF On when the external device connector is used.)
Operating Temperature
0?C to 40?C
32?F to 104?F
Storage Temperature
-20?C to +60?C
-4?F to +140?F
Battery Operating Time
Approx. 1 hours, 5 minutes with BP-U30 battery
(while recording with LCD Off, EVF On when the external device connector is not used.)
Approx. 2 hours, 10 minutes with BP-U60 battery
(while recording with LCD Off, EVF On when the external device connector is not used.)
Approx. 3 hours, 15 minutes with BP-U90 battery
(while recording with LCD Off, EVF On when the external device connector is not used.)
Recording Format (Video)
XAVC-I QFHD mode:
MPEG-4 AVC/H.264, CBG, Max.600 Mbps
XAVC-I HD mode:
MPEG-4 AVC/H.264, CBG, Max.222 MbpsXAVC-L QFHD mode:
VBR, maximum bit rate 150Mbps, MPEG-4 H.264/AVC
XAVC-L HD 50 mode:
VBR, maximum bit rate 50Mbps, MPEG-4 H.264/AVC
AVC-L HD 35 mode:
VBR, maximum bit rate 35Mbps, MPEG-4 H.264/AVC
XAVC-L HD 25 mode:
VBR, maximum bit rate 25Mbps, MPEG-4 H.264/AVCMPEG HD422 mode:
CBR, maximum bit rate 50Mbps, MPEG-2 422P@HL
MPEG HD420 HQ mode:
VBR, maximum bit rate 35Mbps, MPEG-2 MP@HLDVCAM mode:
CBR, 25Mbps, DVCAM
Recording Format (Audio)

XAVC-I mode:
LPCM 24-bit, 48kHz, 4 channels:

XAVC-L mode:
LPCM 24-bit, 48kHz, 4 channels:

MPEG HD422 mode:
LPCM 24-bit, 48kHz, 4 channels:
MPEG HD420 HQ mode:
LPCM 16-bit, 48kHz, 4 channels:

DVCAM mode:
LPCM 16-bit, 48kHz, 4 channels

Recording Frame Rate

XAVC-I QFHD mode:
3840×2160/59,94p, 50p, 29.97p, 23.98p, 25p
XAVC-I HD mode:
1920×1080/59,94p, 59.94i, 50p, 50i, 29.97P, 23.98P, 25P 1280×720/59.94P, 50P

XAVC-L QFHD 150 mode:
3840×2160/59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-L HD 50 mode:
1920×1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P 1280×720/59.94P, 50P
XAVC-L HD 35 mode:
1920×1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P

Recording Frame Rate – Continued
XAVC-L HD 25 mode:
1920×1080/59.94i, 50iMPEG HD422 mode:
1920×1080/59.94i, 50i, 29.97P, 23.98P, 25P
1280×720/59.94P, 50P, 29.97P, 23.98P, 25P
MPEG HD420 HQ mode:
1920×1080/59.94i, 50i, 29.97P, 23.98P, 25P
1440×1080/59.94i, 50i, 29.97P, 23.98P, 25P
1280×720/59.94P,50PDVCAM mode:
720×480/59.94i, 29.97PsF
720×576/50i, 25PsF
Recording/Playback Time

XAVC-I QFHD mode
When using SBP-128B(128GB):
Approx. 22 minutes
XAVC-I HD mode
When using SBP-128B(128GB):
Approx. 57 minutes

XAVC-L QFHD 150 mode
When using SBP-128B(128GB):
Approx. 86 minutes
XAVC-L HD 50 mode
When using SBP-128B(128GB):
Approx. 230 minutes
XAVC-L HD 35 mode
When using SBP-128B(128GB):
Approx. 310 minutes

Recording/Playback Time – Continued

XAVC-L 25 mode
When using SBP-128B(128GB):
Approx. 420 minutes

MPEG HD422 mode
When using SBP-128B(128GB):
Approx. 215 minutes
MPEG HD420 HQ mode
When using SBP-128B(128GB):
Approx. 330 minutes

When using SBP-128B(128GB):
Approx. 405 minutes

Recording Format (Proxy Audio)
XAVC Proxy: AAC-LC, 128 kbps, 2 channels
Recording Format (Proxy Video)
XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR
1920×1080, 9Mbps
1280×720, 9Mbps
1280×720, 6Mbps
640×360, 3Mbps
480×270, 1Mbps
480×270, 0.5Mbps
Lens
Lens Mount
Fixed
Zoom Ratio
17x (optical), servo/manual
Focal Length
f = 5.6 – 95.2 mm
(35mm equivalent: 30.3 – 515 mm)
Iris
F1.9 – F16 and close
auto/manual selectable
Focus
800 mm to ? (Macro Off),
50 mm to ? (Macro On, Wide),
800 mm to ? (Macro On, Tele)
AF/MF/Full MF selectable
Image Stabilizer
On/Off selectable, shift lens
Filter Diameter
M77 mm, pitch 0.75mm
Camera Section
Imaging Device (Type)
1/2 type back-illuminated Exmor R 3CMOS sensor
Effective Picture Elements
3840 (H) x 2160 (V)
Optical System
F1.6 prism system
Built-in Optical Filters
ND filters
OFF: CLEAR
1: 1/4ND
2: 1/16ND
3: 1/64ND
Linear variable ND (Approx. 1/4ND to 1/128ND)
Sensitivity (2000 lx, 89.9% reflectance)
F12 (typical, 1920 x 1080/59.94p mode)
F13 (typical, 1920 x 1080/50p mode)
F12 (typical, 3840 x 2160/59.94p, High Sensitivity Mode)
F13 (typical, 3840 x 2160/50p, High Sensitivity Mode)
Minimum Illumination
0.0013lx (typical)
(1920 x 1080/59.94i mode, F1.9, +42 dB gain, High Sensitivity Mode, with 64 frame accumulation)
S/N Ratio
63 dB (Y) (typical)
Horizontal Resolution
2,000 TV lines or more (3840 x 2160p mode)
1,000 TV lines or more (1920 x 1080p mode)
Shutter Speed
1/24 sec to 1/8,000 sec
Slow Shutter (SLS)
2, 3, 4, 5, 6, 7, 8, 16, 32, and 64-frame accumulation
Slow and Quick Motion Function
2160P: 1-60 fps
1080P: 1-60 fps
720P: 1-60 fps1080P: 1-30 fps
720P: 1-60 fps1080P: 1-30 fps
720P: 1-60 fps
White Balance
Preset (3200K), Memory A,
Memory B/ATW
Gain
-3, 0, 3, 6, 9, 12, 18 dB, 42dB(Turbo Gain ON), AGC
Gamma Curve
Selectable
Monitoring
Viewfinder
1.3 cm (0.5 type)
Approx 2.36M dots
LCD
8.8cm (3.5 type)
Approx. 1.56M dots
Built-in Microphone
Built-in Microphone
Omni-directional stereo electret condenser microphone
Media
Type
ExpressCard/34 slot (x2)
Wi-Fi/NFC
Supported Format
IEEE 802.11 a/b/g/n/ac
Frequency Band
2.4 GHz bandwidth
5.2/5.3/5.6 GHz bandwidth*
Security
WEP/WPA-PSK/WPA2-PSK
NFC
NFC Forum Type 3 Tag compliant
In The Box
Click to rate this post!
[Total: 1 Average: 5]
  • Lens hood (1), Pre-installed to the Camcorder
  • EVF eyecup (1)
  • Battery pack BP-U30 (1)
  • AC Adapter/charger BC-U1A (1)
  • Power Code (1)
  • USB cable (1)
  • Shoulder strap (1)
  • Warranty Booklet (1)
  • “Before Using this Unit” (1)
  • CDROM “Operating instructions” (1)
