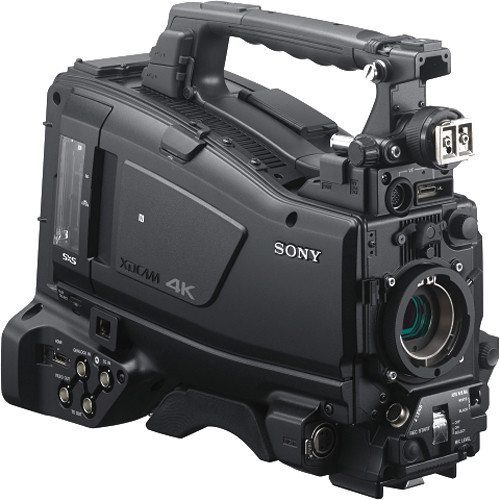

Name: Sony PXW-Z450 4K XDCAM Shoulder Camcorder Built-in Wireless Module
SKU: PXWZ450

Sony PXW-Z450 World’s first 4K shoulder camcorder

The Sony PXW-Z450 is an advanced 4K shoulder camcorder that records 4K QFHD (3840×2160) at 50p/59.94p, as well as a variety of HD formats including XAVC Intra, XAVC Long GOP, MPEG HD 422 and MPEG HD 420. Thanks to a specially-developed 4K 2/3-type Exmor R CMOS sensor, the Sony PXW-Z450 is ideal for a wide variety of 4K operations, allowing you to use a wide range of commercially-available B4 mount lenses without having to use an adapter.

The camcorder offers the same advanced features as the Sony PXW-X400 Full HD camcorder, with exceptional weight balance and low power consumption, alongside excellent networking features such as built-in wireless module, embedded RJ-45 Ethernet 100B-T connector and Near Field Communication (NFC) function for easy Wireless LAN setup and operation via a mobile or tablet with Sony’s Content Browser Mobile™ application.

Shooting in 4K and HD

The Sony PXW-Z450 supports a wide variety of formats including 4K QFHD and HD XAVC Intra and XAVC Long GOP at 50p/59.94p.

Versatile B4 ENG Lens Options

Thanks to a versatile 2/3-type native sensor and B4 lens mount, this camcorder allows you to install a variety of B4 ENG lenses including either 4K or HD. This flexible lens options supports your variety of shooting applications while saving the cost.

Low power and ergonomic design

Designed to minimize power consumption, this camcorder’s lighter lens grip reduces front weight and helps reduce the load on the right-arm.

Excellent network connectivity

Connectivity features include built-in wireless module, RJ-45 Ethernet 100B-T connection and NFC function for easy Wireless LAN set-up.

Supports QHD LCD and Full HD OLED viewfinders

The camcorder supports a variety of Sony’s viewfinders, including the Full HD OLED HDVF-EL30 and HDVF-EL20. The OLED viewfinders take an advantage of focusing the 4K shooting.

Embedded RJ-45 connector

An embedded RJ-45 Ethernet 100B-T connector on the right side of the camcorder provides a robust and fast network connection that can be used for file transfer, live streaming and camera control from a web browser.

One-touch wireless LAN connection

A Near Field Communication (NFC) function allows easy, one-touch wireless LAN connection to a smartphone or tablet device without manual setting of the network parameters.

Camera Section Specifications
Built-in Optical Filters	1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Effective Picture Elements	3840 (H) x 2160 (V)
Gain	-9, -6, -3, 0, 3, 6, 9, 12, 18, 24, 30, 36, 42 dB(TBD)
Imaging Device	2/3-type "Exmor R" 4K CMOS
Minimum Illumination	0.019 lx (F1.4, +42 dB, 16-frame accumulation)
S/N Ratio	61 dB typical (typical, 1920×1080/59.94i mode, Noise Suppression On)
Sensitivity (2000 lx, 89.9% reflectance)	F10 (typical) (1920 x 1080/59.94i mode or 3840 x 2160/59.94p mode) F11 (typical) (1920 x 1080/50i mode or 3840 x 2160/50p mode)
Shutter Speed (Time)	59.94i/p, 50i/p: 1/60 sec. to 1/2000 sec. + ECS 29.97p: 1/40 sec. to 1/2000 sec. + ECS 25p: 1/33 sec. to 1/2000 sec. + ECS 23.94p: 1/32 sec. to 1/2000 sec. + ECS
Slow & Quick Motion Function	1080p: Frame rate selectable from 1fps to 60 fps
Slow Shutter	2, 3, 4, 5, 6, 7, 8, 16-frame accumulation
White Balance	Preset (3200K), Memory A, Memory B/ATW
Inputs/Outputs Specifications
Audio Input	CH1/CH2: XLR-type 3-pin (female) (x2), Line/Mic/Mic/+48V selectable LINE: +4, 0, -3 dBu AES/EBU: AES3 compliant MIC: -70 dBu to -30 dBu
Audio Output	XLR-type 5-pin, male, +4/0/-3 dBu (balanced)
DC Input	XLR-type 4-pin, male, 11 V to 17 V DC
DC Output	Round type 4-pin, 11 V to 17 V DC, 1.8 A maximum rated current
Genlock Input	BNC (x1), 1.0 Vp-p, 75 Ω, unbalanced
HDMI Output	A type, 19-pin (x1)
Headphone Output	Stereo mini jack (x1) -11 dBu reference level output, maximum monitor volume, 16 Ω load
MIC	XLR-type 5-pin, female: -70 dBu to -3 0 dBu
Remote	8-pin
SDI Input	SMPTE ST292/ST259 standard compliant, 4-channel audio 1.5G Poolfeed Recording (upto 1080 59.94i)
SDI Output	Output 1/2/3/4: BNC (x4), 0.8 Vp-p,
Speaker Output	Monaural, 300 mW output
Timecode Input	BNC (x1), 0.5 V to 18 Vp-p, 10 kΩ
Timecode Output	BNC, 1.0 Vp-p, 75 Ω
USB	USB 3.0/2.0 4-pin (type A), USB2.0 4-pin (type B), USB2.0 4-pin (type-A)
VF	20-pin IF for HDVF Series Viewfinder, and 26-pin IF for CBK-VF02, HDVF-L750
Video Output	BNC, SD analog composite/HD-Y selectable
Wireless Receiver IN	D-sub 15-pin Analog CH1: -40 dBu Digital CH1/CH2: -40 dBFS
