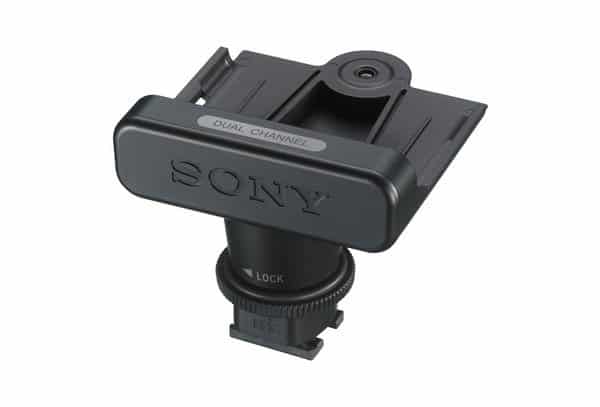

Sony SMAD-P3D Multi Interface Shoes (MI Shoes) adapter
Dual channel Multi Interface Shoe (MI Shoe) adaptor for cable-free connection
The 2-channel wireless receiver URX-P03D can be attached to camcorders or interchangeable-lens cameras that have an MI (Multi-Interface) shoe using the 2-channel MI shoe adaptor SMAD-P3D. This eliminates the need for connecting cables. By using Sony SMAD-P3D MI shoe adaptor, audio signals can be transmitted from the wireless receiver to a camera. In addition, the wireless receiver can get power from the camera, and the camera can control power ON/OFF, unifying power management.
The Sony SMAD-P3D is applicable to XDCAM Camcorder PXW-X70, PXW-X160, PXW-X180, PXW-X280, PXW-X200*, PXW-Z150**,***, PXW-FS7, PXW-FS5*** and PXW-FS5K***, NXCAM Camcorder HXR-NX100***, HXR-NX5R**,*** and HXR-MC2500, Handy cam FDR-AX100 ****, NEX-VG900**** and NEX-VG30 ****, interchangeable lens digital camera ?7****, ?7R ****, ?7S ****, ?7 Mark? ****, ?7R Mark? ****, ?7S Mark? ****, ?99 ****, ?6000****, ?6300 ****, plus Cyber-shot DSC-RX10 ****, DSC-RX10 Mark?**** and DSC-RX10 Mark?**** (as of September 2016).
* PXW-X200 firmware should be upgraded to Ver.2.00 or later for using SMAD-P3D.
**When using with PXW-Z150 or HXR-NX5R operated by AC power, please set a battery on the camera. Without a battery, operation of the power supply function and the power ON/OFF control function is not guaranteed. Or else, insert new AA alkaline batteries in the receiver and set the receiver’s power select (PWR SOURCE) menu item to BATT ONLY mode to avoid an unexpected shutdown of the camera or data loss.
***When using with these specific camera models recording audio signals from both audio input and multi-interface shoe (MI SHOE), following audio input settings are recommended.
- INPUT1 for CH1 / MI SHOE for CH2 (Audio signal assigned to URX-P03D’s OUTPUT2 will be recorded on CH2)
- MI SHOE for CH1 / INPUT2 for CH2 (Audio signal assigned to URX-P03D’s OUTPUT1 will be recorded on CH1)
Please beware of the audio signal assignment in following setting.-MI SHOE for CH1 / INPUT1 for CH2 (Audio signal assigned to URX-P03D’s OUTPUT2 will be recorded on CH1)
**** When used in conjunction with these specific camera models, operation of the power supply function and the power ON/OFF control function is not guaranteed. Insert new AA alkaline batteries in the receiver, and set the receiver’s power select (PWR SOURCE) menu item to BATT ONLY mode. When using other modes, the camera may shut down unexpectedly and data may be lost depending on the operating conditions.
