Description

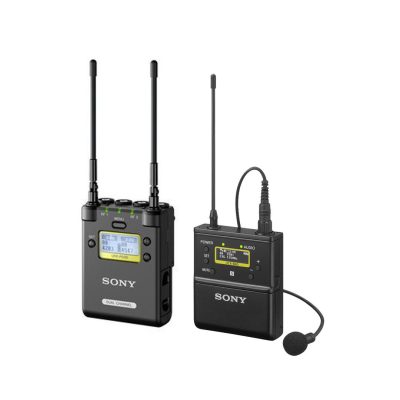

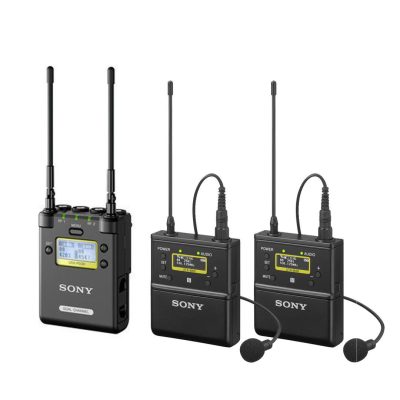

Sony URX-P03D Two-channel Receiver with UTX-B40 Wireless bodypack transmitter with Lavalier Mic

Sony URX-P03D Two-channel Portable Receiver

2 channel portable receiver (Freqency Band 566.035-630MHz (33-40)) for high quality sound for ENG/EFP productions

The Sony URX-P03D 2-channel portable receiver forms part of a complete UWP-D audio system offering the sound quality of digital audio processing combined with the reliability of analogue FM modulation. The Sony URX-P03D offers wide frequency coverage with up to 72 MHz bandwidth (depending on region) across a wide range of channels, with a choice of models to choose from.

Easy-to-use features include a large display and small size to fit neatly on any size camcorder or DSLR camera, automatic channel setting function, headphone output, USB connection for power supply and line input availability. The receiver also has external mic input for an additional wired microphone and 3 channel mixer function. The UWP-D Series system provides superb transient response performance for all ENG / EFP production applications.

2 channel portable receiver

Digital Audio Processing for high quality sound

Improves transient response performance between the UWP-D transmitter and receiver, which will provide impressive natural sound quality compared to conventional analogue wireless systems.

External mic input for additional wired microphone

Sony URX-P03D portable receiver has an external mic input connector for additional wired microphone. It also has a 3 channel mixer function for the two wireless microphones and one wired microphone.

Wide frequency coverage with choice of channels available

The Sony URX-P03D extra wide switching bandwidth covers a wide area, with a wide choice of channels available across multiple models – please refer to product specifications for more information.

Large display and small size receiver

The receiver features a large display for ease of use, while its small size means it fits neatly on any size camcorder or DSLR camera.

Easy to use features

Automatic channel setting function, headphone output, USB connection for power supply and line input availability.

Wide frequency coverage

The extra wide switching bandwidth covers a wide area, with a wide choice of channels available across multiple models – please refer to product specifications for more information.

True Diversity reception system*

The Sony URX-P03D system achieves exceptionally stable audio signal being delivered from two independent receiver sections within the unit. Optimum signal quality is delivered by the two receivers sections and a comparison circuit constantly pulls the one with the best signal to give dropout free transmission.

*Applied for 1 channel use. Antenna diversity is applied for 2 channel use.

Compatibility with Sony 800 and UWP Series analogue audio receivers

The Sony URX-P03D transmitters and receivers are also compatible with Sony’s WL-800 Series, UWP Series and Freedom Series, allowing users to switch between different companding modes.

Sony UTX-B40 Wireless UWP-D bodypack transmitter with Omni Lavalier Mic Freqency Band – 566.035-630MHz

Sony UTX-B40 The demand for high quality audio is increasing as high resolution content becomes prevalent in the video production industry. Today’s content creators are faced with the challenge of capturing high-quality audio quickly, reliably and with limited resources.

Offering superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception and friendly features, the UWP-D series is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings.

Digital audio processing for high quality sound

Advanced digital audio processing technology by Sony assures high quality sound with improved transient response performance. A new [optional] digital audio interface enables direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface MI shoe adaptor, bypassing A/D and D/A conversion stages to further ensure excellent sound quality.

Fast, easy frequency setting

Sony’s uniquely user-friendly NFC SYNC feature allows quick, intuitive secure channel setting between transmitter and receiver.

Light, compact design

Sony UTX-B03 Reduced system size and weight enable superior mobility in a wide range of applications including news, documentaries, weddings and remote production. The receiver’s compact size and light weight make it an ideal partner for use small camcorders and interchangeable lens digital

Click to rate this post!

[Total: 0 Average: 0]

Specifications

Sony URX-P03D Two-channel Receiver

Important Notes
Important Notes	This product is available in a variety of different frequency range models to suit the regulatory requirements of individual countries. Please contact your Sony reseller for more information on which product will best suit your specific needs.
URX-P03 Portable receiver
Oscillator Type	Crystal-controlled PLL Synthesizer
Reception Type	Space diversity*
Antenna Type	1/4 wave length wire
Carrier Frequencies: Americas	UC14: 470.125 MHz to 541.875 MHz UC30: 566.125 MHz to 607.875 MHz and 614.125 MHz to 637.875 MHz (not available in Brazil) UC42: 638.125 MHz to 697.875 MHz
Carrier Frequencies: Europe, UAE, South Africa, Australia, Malaysia, Vietnam, New Zealand	CE21: 470.025 MHz to 542.000 (not available in Australia, Malaysia, Vietnam or New Zealand) CE33: 566.025 MHz to 633.000 MHz (not available in New Zealand) CE42: 638.025 MHz to 694.000 MHz
Carrier Frequencies: China	CN38: 710.025 MHz to 782.000 MHz
Carrier Frequencies: Thailand, Taiwan, Singapore	E: 794.125 MHz to 805.875 MHz
Carrier Frequencies: Japan	JB: 806.125 MHz to 809.750 MHz
Carrier Frequencies: South Korea	KR3: 925.125 MHz to 937.500 MHz
Frequency Response	23Hz to 18kHz (typical)
Signal-to-Noise Ratio	96dB (max deviation, A-weighted)
Distortion (T.H.D)	0.9% or less (-60dBV, 1kHz input)
Audio Delay	Approx. 0.375 msec
Analog Input	3-pole mini jack, unbalanced
Analog Input Level	-50dBV (±12dB Adjustable, 3-dB step)
Analog Output	3-pole mini jack, unbalanced
Analog Output Level	-60dBV (at ±5kHz deviation)
Analog Output Adjust Range	-12dB – 12dB (3dB step)
Headphone Output	φ3.5 mm ( 5/32 inch) stereo mini jack
Headphone Output Level	5 mW (at 16-ohm load)
Pilot Tone Signal	32 kHz/ 32.382 kHz/ 32.768 kHz
Display	LCD
Power Requirements	DC 3.0 V (with two AA-size alkaline (LR6) batteries) DC 5.0V (via USB micro-B)
Battery Operating Time	Approx. five hours with Sony’s AA-size alkaline (LR6) batteries at 25ºC (77ºF)
Operating Temperature	0°C to 50°C 32°F to 122°F
Storage / Transport Temperature	-20°C to 55°C -4°F to 131°F
Dimensions	63 x 82 x 28.4 mm (excluding the anntenas) (W x H x D)
Mass	Approx. 210 g (including batteries)
Note
*	True Diversity for 1ch use / Dynamic Switching Diversity for 2ch use

Sony UTX-B03 Wireless UWP-D bodypack transmitter

Oscillator Type	Crystal-controlled PLL synthesizer
Antenna Type	1/4 λ wavelength wire antenna
Carrier Frequencies	14UC : 470.125 MHz to 541.875 MHz(UHF-TV channels 14 to 25) 25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36) 42LA : 638.125 MHz to 697.875 MHz(UHF-TV channels 42 to 51) 90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz 21CE : 470.025 MHz to 542.000 MHz(UHF-TV channels 21 to 29) 33CE : 566.025 MHz to 630.000 MHz(UHF-TV channels 33 to 40) 42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) 38CN : 710.025 MHz to 782.000 MHz(UHF-TV channels 38 to 46) E : 794.125 MHz to 805.875 MHz BJ: 806.125 MHz to 809.750 MHz KR : 925.125 MHz to 937.500 MHz
RF Output Power	30 mW/5 mW selectable (UC, U, CE, LA, CN models) 10 mW/2 mW selectable (J, E, KR models)
Capsule Type	Electret condenser
Directivity	Omni-directional
Input Connector	3.5mm diameter 3-pole locking mini jack
Reference Audio Input Level	–60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation) +4 dBu (LINE input)
Audio Attenuator Adjustment Range	0 dB to 27 dB (3dB steps)
Frequency Response	23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models) 40 Hz to 15 kHz (Typical) (J model)
Signal-to-Noise Ratio	60 dB (–60 dBV, 1 kHz input) 102 dB (GAIN MODE set to AUTO GAIN, max.) 96 dB (GAIN MODE set to NORMAL, max.)
Distortion	0.9% or less (–60 dBV, 1 kHz input)
Audio Delay	Approx. 0.35 ms
Tone Signal Frequency	In UWP-D compander mode: 32.382 kHz In UWP compander mode: 32 kHz In WL800 compander mode: 32.768 kHz
Display	OLED
Power Requirements	DC 3.0 V (two LR6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C connector)
Battery life*	Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models) Approx. 10 hours with output power of 10 mW (J, E, KR models) *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).
Operating Temperature	0 °C to 50 °C (32 °F to 122 °F)
Storage/Transport Temperature	–20 °C to +55 °C (–4 °F to +131 °F)
Dimensions	63 × 73 × 19 mm (2 1/2 × 2 7/8 × 3/4 in.) (W / H / D) (excluding antenna)
Mass	Approx. 83 g (2.9 oz) (excluding batteries)
