Description

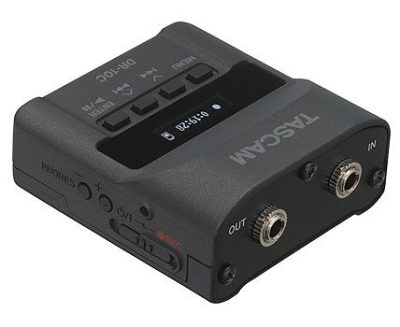

Tascam DR-10CS Micro Linear PCM Recorder with Wireless System for Microphones

Tascam DR-10CS series is an audio recorder that can be set between a wireless microphone system’s microphone and the transmitter. By simply connecting a microphone to a DR-10C series device, and then connecting to the transmitter using the included cable, audio can continue to be recorded even if the audio signal in the wireless system is interrupted.

Designs that support the wireless mic systems of different manufacturers

The Tascam DR-10CS design supports the wireless microphone systems of several different manufacturers, with the lineup supporting Sennheiser and Shure wireless systems. In addition, Sony/RAMSA wireless microphone systems can also be supported by installing an optional replacement.

A light, compact size, weighting 63g that fits inside of your hand

Tascam DR-10CS device fits in the palm of your hand, with a lightweight design that makes it easily bundled with a transmitter. It is wearable on a belt alongside a transmitter, creating options to match your environment. Furthermore, the DR-10C series can be used as a small, wearable recorder by combining it with a pin-mic and the DR-10C series.

Supports BWF files that include timestamp information

The Tascam DR-10CS recording format is set as 24bit/48kHz mono WAV (BWF format), designed for monaural recording for professional applications, including recording TV programs and stages, as well as lectures and seminars. The Tascam DR-10CS built-in clock function is capable of adding timestamp information to the audio file, making file search and editing tasks easier.

Various functions to prevent complications in setting recording-levels, including a dual-recording function

In terms of functionality, a sliding recording switch was employed to prevent mis-operation. There are additional functions to support reliable recording, including: a function for disabling all operations beside stop during recording, and a dual-recording function that enables the recording level to be set as high as possible while simultaneously recording a backup track at a lower level.

The DR-10C is a series of micro linear PCM recorders that can be used for the audio recording of a wireless mic stem, as well as a standalone wearable recorder.

Click to rate this post!

[Total: 1 Average: 5]

Specifications

General
Recording media		microSD card (64 MB ? 2 GB) microSDHC card (4?32 GB)
Recording/playback formats		BWF-compatible WAV format, 44.1/48 kHz, 16/24 bits, mono/poly MP3 format, 44.1/48 kHz, 128/192 kbit/s (recording) 32?320 kbit/s (playback)
Inputs and outputs
Analogue input (microphone)		DR-10CS (for Sennheiser): 3.5-mm mini TRS jack (with screw lock) DR-10CH (for Shure): Mini XLR 4-pin male
??Maximum input level		?12 dBV
??Minimum input level		?53 dBV
??Mic input gain		10 dB to 35 dB (according to MODEL SELECT setting)
??Input impedance		33 k? or higher
Analogue output (passed to the transmitter)		DR-10CS (for Sennheiser): 3.5-mm mini TRS jack (with screw lock) DR-10CH (for Shure): Mini XLR 4-pin male
Analogue output (Headphones jack)		3.5-mm mini stereo jack (dual mono audio output)
Audio performance, input to phones output
Frequency response		20 Hz ? 22 kHz, +1/-3 dB
Distortion		0.05 % (1 kHz sine wave, maximum input level)
S/N ratio		88 dB or higher (PHONES level max., MIC GAIN set to LO)
Requirements for connected computers
Supported operating systems		Windows 7, Windows 8 (including 8.1) OS X Mavericks (10.9) OS X Mountain Lion (10.8)
Power supply and other specifications
Power supply		1 AAA battery (alkaline, NiMH or lithium) USB bus power from a computer
Power consumption		0.45 W (maximum)
Current consumption ?USB bus power)		0.25A (maximum)
Date and time data retention		Secondary lithium battery (built-in)
Dimensions (W ? H ? D)		52 x 56 x 25 mm (excluding protrusions)
Weight		63 g (with battery) 51 g (without battery)
Permissible operating temperature range		0-40 ?C

Click to rate this post!

[Total: 1 Average: 5]

In The Box

DR-10CS Recorder
USB cable
Connection cable
Carrying case
Clip
Belt
Owner’s Manual (including warranty)
