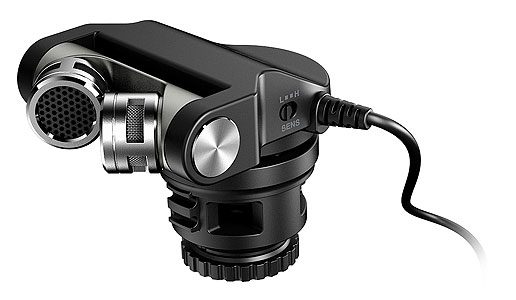

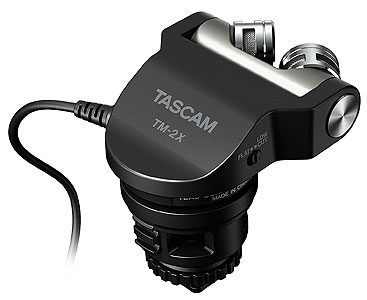

Tascam TM-2X High-quality microphone for digital cameras

The Tascam TM-2X is a stereo X-Y pattern microphone for DSLR cameras – the ideal solution to combine high-quality audio with high-definition video. It allows users to utilize the same cardioid mics made popular on the DR-Series PCM recorders and record straight into their camera of choice.

The two high-quality mic capsules can be rotated horizontally by 180 degrees and accept high sound pressure levels up to 125 dB SPL. They are equipped with a switchable low-cut filter, a two-stage output level adjustment to adjust for varying cameras input levels, and all of this rests on a floating support structure to eliminate handling noise.

For additional noise isolation, the Tascam TM-2XX ships with an isolation arm to distance the mics from auto-focus noise caused by the camera lens, and place the mics closer to the audio source being recorded. For outdoor recording, an included fur windscreen can be attached.

The Tascam TM-2X and noise-isolation arm are mounted to the top of the camera via a standard shoe mount. The mics plug into the camera’s 3.5-mm mic input, and are powered from the standard plug-in power supplied by the DSLR camera.

Features

High-grade stereo condenser microphone for high-quality sound recording with DSLR or mirrorless cameras
Can be mounted directly to the camera accessory shoe and swivelled by 180 degrees to capture sound sources in front or behind the user
Tripod attachment screw-hole (1/4-inch) to place the microphone apart from the camera
XY orientation for clear stereo definition and minimal phase differences
Accepts high sound pressure level up to 125 dB SPL
Switchable input sensitivity for optimum performance with any camera model
Switchable filter to minimize unwanted low-frequency noise
Operates with plug-in power ? no battery required
Noise isolation arm included to reduce possible noise being recorded from the camera?s lens or stabilizer mechanisms
Fur windscreen included to reduce noise being recorded in outdoor situations

Specifications

General
Microphone type		Cardioid condenser microphone
Frequency range		50 Hz ? 20 kHz
Input and output
Maximum input level		120dB SPL (at 1 kHz with sensitivity set to H and low-cut filter set to FLAT)*
Output impedance		1.6 k?*
S/N ratio		74 dB typical*
Mic sensitivity (SENS) switch		H = ?37 dB, L = ?52 dB (1 kHz, 0 dB = 1 V/Pa)*
Low-cut filter cutoff frequency		130 Hz*
*RL = 2.2 k?, Vcc = 2.5 V
Cable length		33 cm
Plug		3.5 mm TRS stereo mini plug (Tip: left channel, Ring: right channel, Sleeve: ground)
Power supply and other specifications
Power requirements		Plug-in power (JEITA standard CP-1203A)
Outer dimensions (width ? height ? depth)		57 mm ? 59 mm ? 69 mm (excluding cable and accessories)
Weight		75 g (without arm)
Operating temperature range		5?35?C

In The Box

TM-2X Microphone
Noise isolation arm
Fur windscreen
