Teradek Cube 775 Decoder
Teradek Cube 775 Decoder
Teradek Cube 775 Decoder
Teradek Cube 775 Decoder
Teradek Cube 775 Decoder
Teradek Cube 775 Decoder
Teradek Cube 775 Decoder
Click to enlarge
Home » Shop » Video » Wireless Video Transmission » Encoder/Decoder » Teradek Cube 775 HEVC/AVC Decoder AC-WiFi USB
Teradek Cube 755 Encoder
Teradek Cube 755 HEVC/H.264 SDI/HDMI Encoder SGD 3,105.79 excl. Tax
Back to products
Teradek Bond 757 HEVC USB
Teradek Bond 757 HEVC USB + Cube 755 + MPEG-TS SGD 5,411.50 excl. Tax

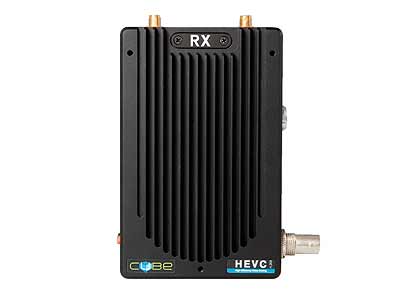

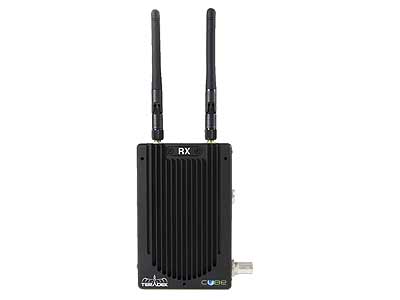

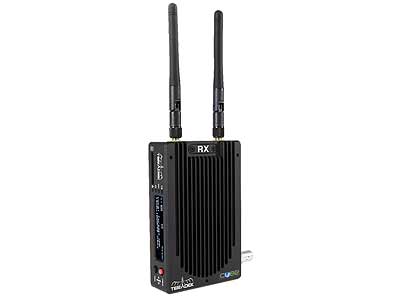

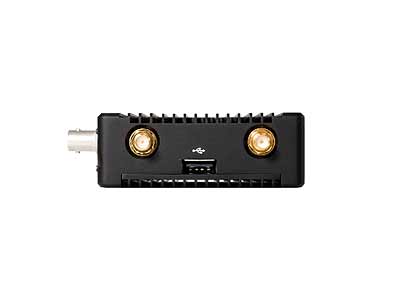

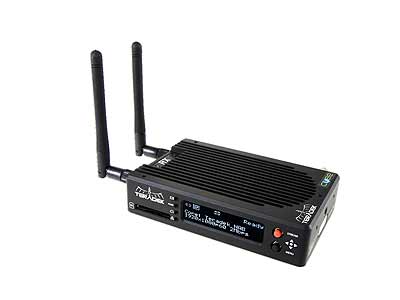

Teradek Cube 775 HEVC/AVC Decoder AC-WiFi USB

SGD 3,105.79 excl. Tax

Weight 2 kg
Teradek
SKU: 10-0775 Category: Encoder/Decoder
Share:
  • Description
  • Specifications
  • In The Box
  • Delivery Info
  • Reviews (0)
Description
Our Score
Click to rate this post!
[Total: 0 Average: 0]

Teradek Cube 775 HEVC/AVC (H.265/H.264) Decoder SDI/HDMI GbE WiFi

Cube 775 is the latest in Teradek’s line of professional, scalable integrated decoders designed for video over IP delivery. Compatible with Cube encoders, Teradek Cube 775 Decoder offers SD/HD MPEG-4 AVC/HEVC (H.264/H.265) decoding for point-to-point video distribution, allowing content creators, broadcasters and system integrators to cost-effectively and reliably meet strict QoS requirements.

With flexible HDMI/3G-SDI dual-output and Ethernet/WiFi (2.4/5Ghz)/cellular USB connection options, Cube 775 streamlines IP video deployment in existing workflows and enhances infrastructure for all users. Small form factor and high-performance decoding make it one of the most versatile solutions for content delivery strategies in the video ecosystem.

Product Highlights

  • Real-Time H.265/H.264 (HEVC/AVC) Decoder
  • Dual-Band 2.4/5.8 GHz WiFi, Ethernet and USB Interfaces
  • HDMI and SDI Video Outputs (Outputs 1080p/60)
  • Camera Top Form Factor
  • Built-In Scaler

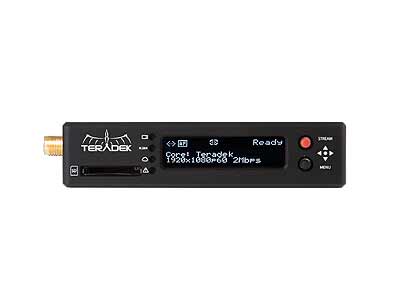

  • OLED Display
  • Powers by AC Adapter or 2-pin Connector Battery
  • Outfitted for 1/4″ Mounting
Specifications
Our Score
Click to rate this post!
[Total: 0 Average: 0]
Specifications

Video

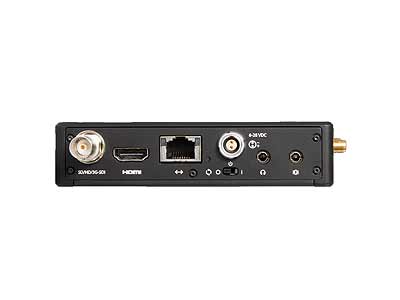

Video Outputs HDMI 1.4a: Full Size
SD/HD/3G-SDI (75 Ω BNC)

Supported Resolutions

Supported Resolutions 1080p 24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080PsF 23/24/25/29/30
720p 50/59.94/60
576i
480i
480p (for HDMI output only)
576p (for HDMI output only)

Video Processing

Video Compression Decompresses HEVC (H.265), H.264, Baseline, Main and High Profile
Supported Video Bitrate 250 Kbps to 15 Mbps
15 Mbps (wired), 10 Mbps (WiFi)
Test Pattern Generator Support None
Video Format Conversion Support Built in Video Scaler and Deinterlacer
Color Correction None

Protocol Support

Network Protocols TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP,NDI
Supported Video Transport Protocols RTP/RTSP: Unicast/TCP, Unicast/UDP, Multicast/UDP streams
MPEG Transport Stream: Unicast/TCP (pushed in from an external source, or pulled down from a remote server such as Core), Unicast/UDP, Multicast/UDP
Teradek Streaming : Unicast/UDP, Multicast/UDP
Remote Control Teradek Core

Audio Processing

Audio Compression AAC-LC, MPEG Layer 2

Inputs

Audio Input Embedded Audio Input
Analog Line or Mic in, adjustable gain

Outputs

Audio Output Headphone output, adjustable volume

Physical

Dimensions 4.75″W x 3″D x 1.1″H [120.7 x 76.2 x 27.9mm]
Weight 11.6oz [328.9g]
Construction Milled Aluminum

Interfaces

Http WebUI for configuration and control
Configuration Interfaces OLED Display with joystick Navigation buttons
Feature-rich WebUI for configuration and control
Switches On/Off and Reset Switch
Mobile App Vuer, Live:Air
Usb Interface Functionality Powered USB 2.0 host port

Network

Ethernet 10/100BASE-T
Wireless WiFi: 2.4/5GHz 802.11 a/b/g/n MiMo
Usb None
Rf Channel Selection Auto with 3 modes: (2.4 or 5 GHz), Auto (2.4 GHz only), Auto (5 GHz only)
Configurable to specific channels
Encryption 802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES

Power

Power Input 2 Pin Connector Power Input
Battery No Battery Included
Nominal Power Consumption 8W, 7W (no WiFi)
Auxilary Power Input 6-28V DC

Enviornmental

Operating Temperature 0 – 50 C
In The Box
Our Score
Click to rate this post!
[Total: 0 Average: 0]
  • 1 x Cube 775
  • 1 x Ethernet Cable
  • 1 x HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in Cable
  • 1 x SDI – BNC to BNC Cable, 10in
  • 1 x PSU 2pin Conn to 18W AC Adapter (Int) – 6ft
