Name: Teradek Link - Dual Band WiFi Router features 1000ft range
SKU: 10-0050
Price: 599.00 USD
Availability: InStock

Description
Features
Specifications
In the Box
Delivery Info
Reviews (0)

Description

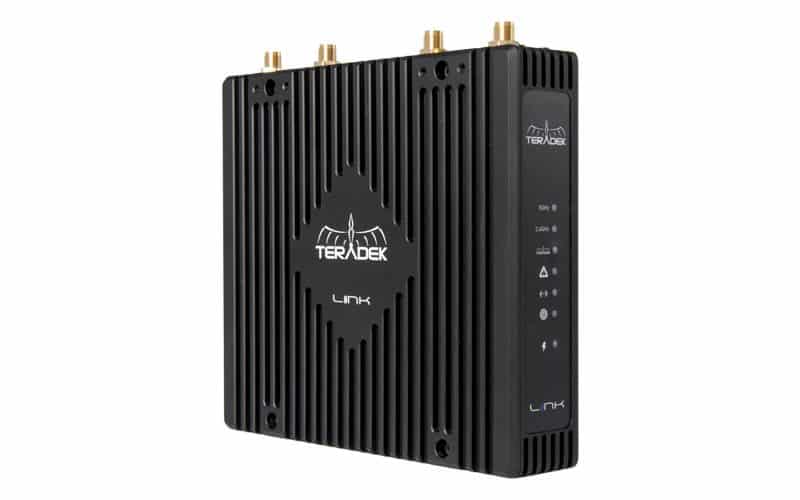

Teradek Link – Dual Band WiFi Router features 1000ft range

Teradek Link is a ruggedized dual band WiFi router. Designed for use in broadcast and cinema applications, Link offers incredible range, several power options and a chassis suitable for regular abuse in the field and on set.

Dual Band 2.4 / 5 GHz | 802.11ac WiFi

Teradek Link supports the latest in WiFi standards and is backward compatible with 802.11 a/b/g/n.

Long Range Coverage

With 1000ft of range, Link offers enough WiFi coverage to blanket most medium sized venues.

High Throughput and Interference Resistant

Teradek Link quad core processor and significant internal memory ensure high data throughput despite numerous clients utilizing the network at once. Compared to typical consumer access points, Link offers optimized buffering and packet re-transmission, allowing you to maintain a consistent connection even in tough RF environments.

Super Rugged and Flexible Mounting

Link’s aluminum chassis allows it to withstand the daily abuse common in production environments or in the field. With several ¼”-20 mounts, the device can easily be mounted onto light stands, DIT carts, or OB vans.

External Battery Connection

Choose between a V-mount or 3-stud battery adapter to power Link for extended periods of time in the field.

PoE Power

Link’s passive PoE connection allows the system to be powered in line with the Teradek Sphere or any other PoE injector for a more streamlined setup on set.

Network Security

Link offers standard WiFi network protection, including WEP, WPA, and WPA2 security.

Features

Dual Band 2.4/5 GHz 802.11ac WiFi
1000ft range
High Throughput with Quad Core Processor
Rugged and Flexible Mounting Options (Gold Mount, V-Mount)
PoE Power

Specifications

Network Protocols	TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Bonding	None
Remote	None
Dimensions	5.220″W x 1.122″ D x 5.098″ [132.58 x 28.5 x 129.5 mm]
Weight	13.2 oz
Battery Plates	Built in Anton Bauer Gold Mount Battery Mount Plate
Temperature	Operating: -10ºC to 50ºC Storage: -40ºC to 90ºC
Humidity	Operating: 5% to 95% (non-condensing) Storage: Max. 90%
Ethernet	2x Gigabit Ethernet RJ45 Ports, Auto MDI-X
Wireless Wifi	2×2 2.4GHz 802.11b/g/n, max 20dBm per chain 2×2 5GHz 802.11a/n/ac, max 16dBm per chain Frequency Range 2.412~2.472GHz, 5.180~5.825GHz
Encryption	802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES
Power Input	2-Pin Circular Locking Connector, 12-24V
Poe	Passive PoE 24V, for network cable length < 20m
Power Consumption	19W max + up to 5W USB

In the Box

1 x Link with Gold Mount Battery Plate Chassis
4 x Antennas 2dBi WiFi 2.4/5.8 GHz
1 x Ethernet Cable
1 x 2-Pin Connector to P-Tap 6.5″ Cable
1 x Lightstand Adapter 1/4-20inch
1 x 2-pin Conn to 30W AC Adapter (6ft Cable)
