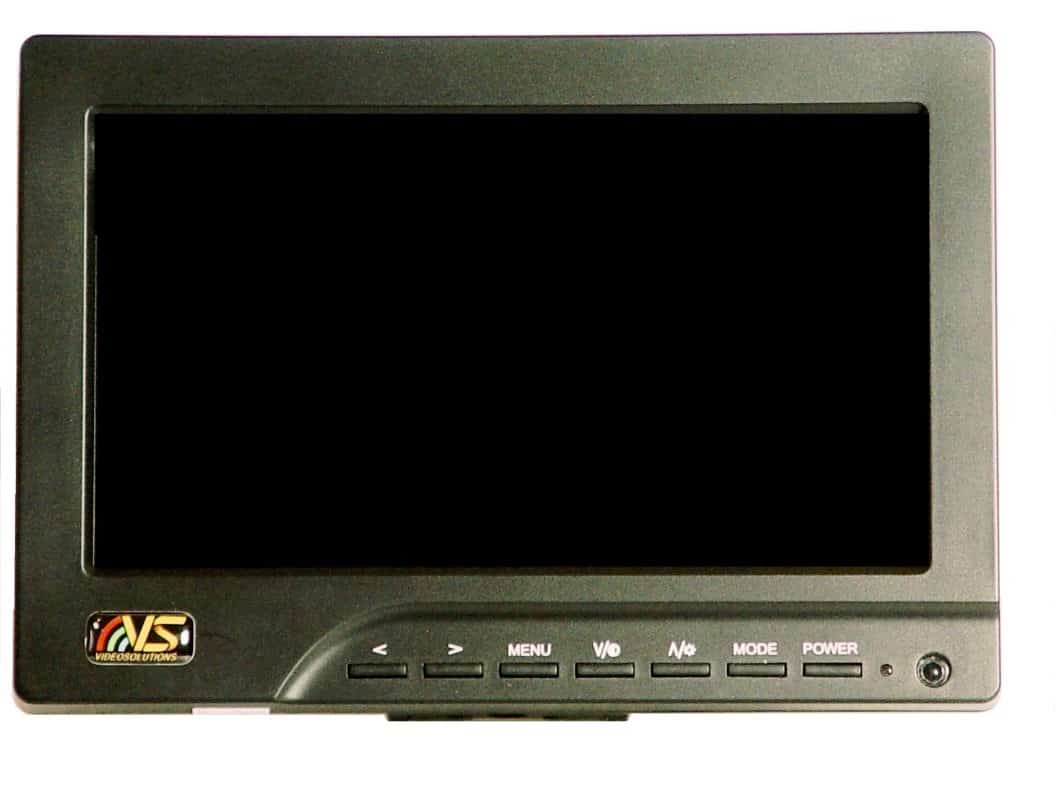

Video Solutions MH-702H 7-inch Monitor

Video Solutions MH-702H is a 7 “monitor is designed for professional use in stationary and mobile TV photo studios as a viewfinder video cameras or photo cameras, as program or preview monitor, tallent feedback monitor as well as for use in any other situations where the need to control the quality of the current state of the video equipment and the observation of technical processes.

Video Solutions MH-702H monitor has a VGA and AV inputs. Matrix LED backlight provides increased brightness (400 nits). There is a function “Assist in focus” – peaking filter, which helps fine-tune the focus on the subject.

There are advanced features such as: on-screen marker (center of the screen or grid marker(80%, 85%, 90%,93%,96%)), invert colors, horizontal and vertical turning of picture, monochrome mode : black and white, blue, green, red etc. On the back of the monitor there is a mount for the installation of back up battery, which makes it possible to use a monitor in the field.

The package can include sun visor.

Features

Designed for professional use in stationary and mobile TV photo studios
Can be used as viewfinder for video cameras, as preview monitor or talent feedback monitor
VGA and AV inputs

Click to rate this post!

[Total: 0 Average: 0]

Specifications

Supported formats	480i, 480p, 576i, 576p, 720p, 1080/50i/60i/50p/60p;
Panel Size	7-inch
Panel Type	TFT LCD
Pixel	1024x600xRGB = 1843200 pixels
Video Definition	800×480 (up to 1920×1440)
Backlight	LED
Dot pitch	0,05 (w) 0,15 (h)
Aspect Ratio	16:9
Brigtness	400
Contrast Ratio	500:1
Response time	10
Viewing angle	70°/70° (L/R), 50°/60°(U/D)
Input signals	HDMI, 0,7 – 1,4 Vp-p/75ohm
Color Format	PAL (4,43),NTSC(3,58)
Built in Loudspeaker	<1W, 8ohm
Power supply	DC: 6-24V
Consumption	<8W(<50mA-standby)
Unit size (max)	188x131x40mm
Unit weight	540g
Working Temperature	-20 – 50°C
Storage Temperature	-30 – 65°C
Installation	There is a 1/4″ standard screw bracket fixed hole on the up/down and left/right position , for hot shoe mount &magic arm installation
