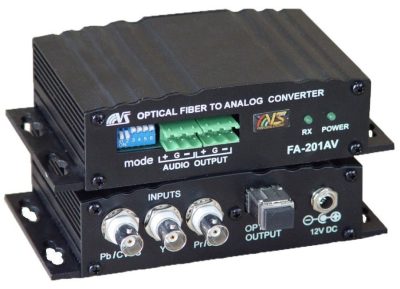

VideoSolutions FA-201AV Fiber Optic to Analog Converter

VideoSolutions FA-201AV Fiber Optic to Analog Converter Extender requires AF-201AV transmitter and FA-201AV receiver.

Analogue video input signal is digitized (10bit) pixel for pixel in the transmitter, is sent digitally through the fiber cable, and is converted back to analog video in the receiver. Analog audio signals are digitized (20bit) in the transmitter, is sent through the fiber cable, and is converted back to analog audio in the receiver.

Analoque can be transmitted up to 20km over single mode fiber.

The AF-201AV transmitter is a class 1 laser product.

AF-201AV provides built-in color bars and embedded 2 channel audio signal (1KHz and 2KHz) test generator, standard SMPTE-259M.

FA-201AV provides built-in color bars and de-embedded 2 channel audio signal (1KHz and 2KHz) test generator .

Click to rate this post!

[Total: 0 Average: 0]

Specifications

Fiber Optic
Optical fiber interconnection between transmitter and receiver	1 singlemode (SM) cable, SC connector
Wave length	1310 nm
Operating Distance (approx)	20 km with singlemode (SM) cables with FA-201AV and AF-201AV
Transmission power	-7 dBm, typical
Maximum Receiver Sensitivity	-18 dBm, typical
Video
Input	PAL, SECAM, auto-detected
Output	PAL (follows vertical rate)
Decoder type	Adaptive 2D, digital comb filter
Video input (transmitter)	1 x Component (Y, Pr, Pb) 1 x S-video 1 x Composite video
Connectors	3 x BNC
Nominal level	-1.0 Vp-p for Y in component video and S-video and for composite video 0,525 Vp-p for Pr, Pb in component video 0.3 Vp-p for C in S-video
Impedance	75 Ohm
Input coupling	AC
Video output (receiver)	1 x Component (Y, Pr, Pb) video 1 x S-video 1 x Composite video
Connectors	3 x BNC
Nominal Level	-1.0 Vp-p for Y in component video, S-video and for composite video 0,525 Vp-p for Pr, Pb in component video 0.3 Vp-p for C in S-video
Audio	Frequency response: 20 Hz to 20 kHz, /-0.5 dB Audio bits per sample: 20 bits per channel, 2 channels (L, R) Sampling rate: 48 kHz
Audio input (transmitter)	1 Stereo balanced or 2 Mono unbalanced. Connectors: 5 mm screw connector, 3 pole Impedance: 100KOhms balanced, DC coupled Nominal level 4 dBu (1.23 Vrms), 0 dBu = 0.775 Vrms
Audio output (receiver)	1 Stereo balanced or 2 Mono unbalanced Connectors: 5 mm screw connector, 3 pole Nominal level: 4 dBu (47Kohm)
Power input requirements	12 VDC, 1A
Enclosure type	Aluminium
Dimensions	40 H x 110 W x 150 D mm
