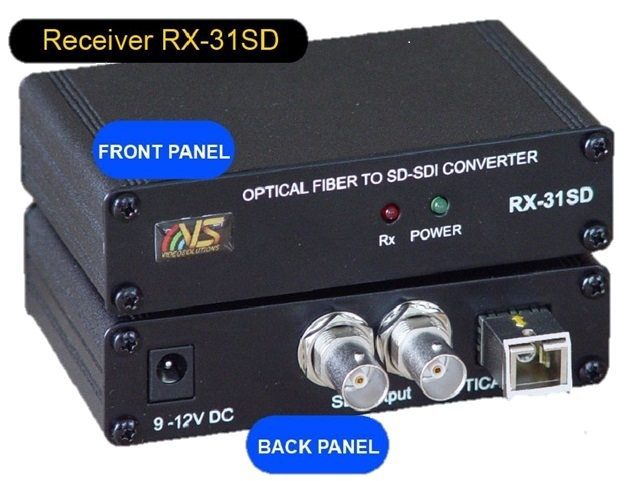

Video Solutions RX-31SD Optical Receiver
Video Solutions RX-31SD Optical Receiver, TX-31SD ? optical transmitter.
SD-SDI over Optical Fiber Extender up to 10km over single mode fiber(operating distance is approximate).
VideoSolutions RX-31SD Optical Receiver?is an ideal and economic solution designed for transmission of multi-rate SDI video, with embedded audio and metadata over a single mode optical fiber cable.
The transmitter module receives one HD/SD-SDI electrical input, perfectly converts SMPTE 259M, or DVB-ASI electrical SDI signal to optic SDI signals. The receiver module receives optical signal from input SC connector, and then perfectly converts it to electrical SDI signal. Both transmitter and receiver provide equalizing and re-clocking at input unit in order to re-construct the signal for consistent quality.
The TX-31SD transmitter are class 1 laser products.
