Video Solutions 2-channel Duplex SD SDI Over Fiber Optic Extender

Add to wishlist
SKU: 2 CHANNEL SD SDI EXTENDER Category: Extender/Amplifier
  • Description
  • Specifications
  • Delivery Info
  • Reviews (0)
Description

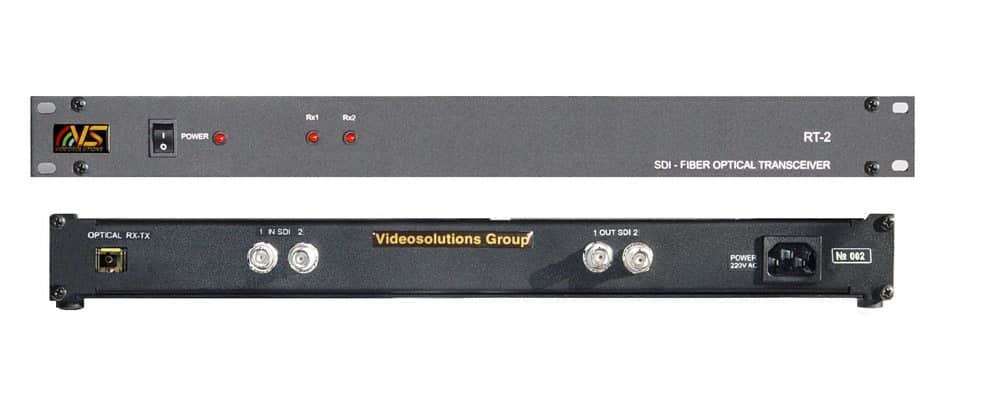

Video Solutions 2-channel Duplex SD SDI Over Fiber Optic Extender

Video Solutions 2-channel Duplex SD SDI Over Fiber Optic Extender is used to connect two distant TV studios (up to 20 km) or studio with the transmission center, where it is necessary to have two independent channels of communication in the both sides.

Each of devices of transceiver pairs converts the 2 of serial digital video signals into light pulses transmitted through the optical cable (Single mode) and simultaneously converts the light pulses received from the optical cable back into the HD-SDI, SD-SDI signals.

Transceiving of SDI signals via fiber is performed in 1510-1570 nm optical window. DFB lasers are used. Multiplexing of channels are optical. All embedded in SDI data (audio signals, data, etc.) are save.

Click to rate this post!
[Total: 0 Average: 0]
Specifications
Max Data rate
Up to 1,5Gbps for each SDI input.
SDI Outputs
2 channels on BNC connectors.
Cable
One single mode fiber optic cable with SC connectors
Supporting protocols
SMPTE 259M (143Mbps,270Mbps),
SMPTE 292M (1.485Gbps and 1.485/1.001Gbps),
DVB ASI (270Mbps)
Automatic detection
143Mbps / 270Mbps / 1.483Gbps / 1.485Gbps
Reclocking & Equalization per each Channel.
Receiver
Inputs
1 optical connector SC
Outputs
2 SDI serial video, 75 ohm on BNC connectors
Transmitter
Output
1 optical connector SC
Inputs
2 SDI serial video, 75 ohm on BNC connectors
Bandwidth
Upto 1.5Gbps for each SDI input
Fiber Optic Extension
Upto 20km HD-SDI
Transmitter output power
-3 dBm
Receiver sensitivity
-26 dBm
Optical source
DFB Laer Diode
Operating wavelength
1510, 1530, 1550, 1570 nm
Fiber-optic Connection
SC connectors for single mode fiber cable
Power Source
100-240V AC
Dimensions
1U, 19″ rack-mount
