    Home » Shop » Audio » Audio Mixer » Analog » Yamaha MG16X CV Mixing Console
    Yamaha MG16 Channel Mixing Console
    Yamaha MG16 Channel Mixing Console - MG16 SGD 720.90 excl. Tax
    Back to products
    Yamaha MG16XU Mixing Console
    Yamaha MG16XU Mixing Console SGD 833.04 excl. Tax

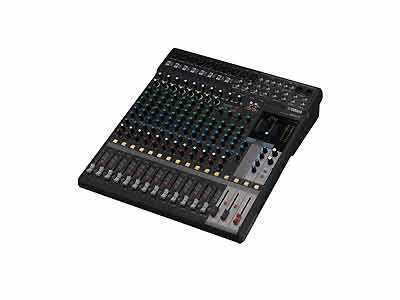

    Yamaha MG16X CV Mixing Console

    SGD 792.99 excl. Tax

    • 16-Channel Mixing Console
    • Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo
    • 4 GROUP Buses + 1 Stereo Bus
    • 4 AUX (incl. FX)
    • “D-PRE” mic preamps with an inverted Darlington circuit
    • 1-Knob compressors
    • High-grade effects: SPX with 24 programs
    • PAD switch on mono inputs
    • +48V phantom power
    • XLR balanced outputs
    • Internal universal power supply for worldwide use
    • Rack Mount Kit Included
    • Metal chassis
    • Dimensions(W×H×D): 444 mm x 130 mm x 500 mm (17.5″ x 5.1″ x 19.7″)
    • Net Weight: 6.8 kg (15.0 lbs.)
    Weight 7.1 kg
    SKU: MG16X CV Category:
    Description
    Click to rate this post!
    [Total: 2 Average: 5]

    Yamaha 16-Channel Mixing Console

    Yamaha MG16X is a Mixing Console with  a 16-Channel Mixing Console: Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo) / 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX). suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles let you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivaled in its class.

    Key Features of the Yamaha MG16X Mixer:

    16-Channel Mixing Capability:

    The Yamaha MG16X offers 16 channels, including 10 mono and 3 stereo inputs, providing ample flexibility for a wide range of audio sources.

    High-Quality D-PRE Preamps:

    Equipped with Yamaha’s acclaimed D-PRE preamps, the MG16X ensures pristine sound reproduction with exceptional clarity and detail.

    Built-in SPX Digital Effects:

    Featuring 24 versatile digital effects, including reverb, delay, chorus, and more, the MG16X allows you to add professional polish and depth to your audio productions.

    One-Knob Compressors:

    Select channels on the MG16X are equipped with one-knob compressors, enabling easy control over dynamics and ensuring consistent, balanced sound.

    3-Band EQ and High-Pass Filters:

    Each channel on the MG16X includes a 3-band EQ and high-pass filter, allowing precise tonal shaping and frequency control for optimal sound customization.

    1. USB Audio Interface: With its built-in USB interface, the MG16X enables seamless connection to computers and recording software, facilitating easy recording and playback of audio.
    2. Flexible Connectivity: The MG16X offers a variety of connectivity options, including XLR, TRS, and RCA inputs, as well as AUX and subgroup outputs, ensuring compatibility with a wide range of audio equipment.
    3. Metal Chassis Construction: Built to withstand the rigors of professional use, the MG16X features a rugged metal chassis that ensures durability and reliability in any setting.
    4. Intuitive Control Layout: With its ergonomic design and intuitive layout, the MG16X makes audio mixing easy and efficient, allowing for quick adjustments and precise control over your sound.
    5. Versatile Applications: Whether you’re recording in the studio, mixing live performances, or hosting podcasts, the Yamaha MG16X is a versatile solution that delivers professional-grade results in any application.

     Another Model Yamaha MG16-XU
    Yamaha MG06X

    To view more Yamaha Products

    Related Products:

    add-C-22-7Fed24
    Specifications
    Click to rate this post!
    [Total: 2 Average: 5]
    Mixing capability On-board processors SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
    I/O Phantom power +48 V
    Digital I/O –
    Input Channels Mono[MIC/LINE] 8
    Mono/Stereo[MIC/LINE] 2
    Stereo[LINE] 2
    Output Channels STEREO OUT 2
    MONITOR OUT 1
    PHONES 1
    AUX SEND 4
    GROUP OUT 4
    Bus Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)
    Input Channel Function PAD 26 dB (Mono)
    HPF 80 Hz, 12 dB/Oct (Mono/Stereo: MIC only)
    COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
    EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
    EQ MID Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
    EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
    PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
    Level Meter 2×12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
    Total harmonic distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
    Frequency response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
    Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
    Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min)
    Crosstalk -78 dB
    Power requirements AC 100 – 240 V, 50 / 60 Hz
    Power consumption 30 W
    Dimensions W 444 mm (17.5″)
    H 130 mm (5.1″)
    D 500 mm (19.7″)
    Net weight 6.8 kg (15.0 lbs.)
    Accessories Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit, Optional Accessory: Foot Switch FC5
    Others Operating Temperature: 0 to +40˚C



    • 0 dBu = 0.775 Vrms Output impedance of signal generator (Rs) = 150Ω
    • All level controls are nominal if not specified.
    • Hum & noise level: Noise is measured with an A-weighting filter.
    • Crosstalk： Measured with 1 kHz band pass filter.
