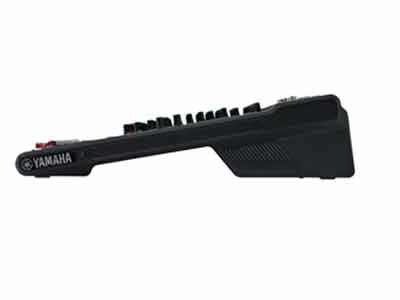

Yamaha MG20 Mixing Console
Yamaha MG20 Mixing Console
Yamaha MG20 Mixing Console
Yamaha MG20 Mixing Console
Yamaha MG20 Mixing Console
Click to enlarge
Home » Shop » Audio » Audio Mixer » Analog » Yamaha MG20 Mixing Console
Yamaha MG10 Mixing Console
Yamaha MG10 Mixing Console SGD 239.75 excl. Tax
Back to products
Yamaha MG12X Mixing Console
Yamaha MG12X Mixing Console SGD 504.16 excl. Tax

Yamaha MG20 Mixing Console

SGD 965.85 excl. Tax

Weight 12.9 kg
Yamaha
SKU: MG20 Category: Analog
Share:
  • Description
  • Specifications
  • In The Box
  • Delivery Info
  • Reviews (0)
Description
Our Score
Click to rate this post!
[Total: 0 Average: 0]

Yamaha MG 20-Channel Mixing Console

MG Series embodies this pursuit of design excellence and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and rugged, reliable construction. Yamaha MG Series mixing consoles feature Yamaha’s studio-grade discrete class-A D-PRE preamps, which utilize an inverted Darlington circuit comprising two cascading transistors in a configuration that provides more power with lower impedance. Yamaha MG20 is a 20-Channel Mixing Console: Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo) / 4 GROUP Buses + 1 Stereo Bus / 4 AUX.

Yamaha MG20 Features:

  • 20-Channel Mixing Console
  • Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for worldwide use
  • Rack Mount Kit Included
  • Metal chassis
  • Dimensions(W×H×D): 444 mm x 130 mm x 500 m (17.5″ x 5.1″ x 19.7″)
  • Net Weight: 6.9kg (15.2 lbs.).
Specifications
Our Score
Click to rate this post!
[Total: 0 Average: 0]



MG20
Outline
I/O Phantom power +48 V
Input Channels Mono[MIC/LINE] 12
Mono/Stereo[MIC/LINE]
4
Stereo[LINE]
–
Output Channels STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 4
GROUP OUT 4
Bus Stereo: 1, GROUP: 4, AUX: 4
Input Channel Function PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/Oct (Mono/Stereo: MIC only)
COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping(Mono)
Level Meter 2×12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
General specifications
Total harmonic distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk -78 dB
Power requirements AC 100 – 240 V, 50 / 60 Hz
Power consumption 36 W
Dimensions W 444 mm (17.5″)
H 130 mm (5.1″)
D 500 mm (19.7″)
Net weight 6.9kg (15.2 lbs.)
Accessories Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit
Others Operating Temperature: 0 to +40˚C
  • 0 dBu = 0.775 Vrms Output impedance of signal generator (Rs) = 150Ω
  •  All level controls are nominal if not specified.
  •  Hum & noise level: Noise is measured with an A-weighting filter.
  •  Crosstalk: Measured with 1 kHz band pass filter.
In The Box
Our Score
Click to rate this post!
[Total: 0 Average: 0]
  • Owner’s Manual
  • Technical Specifications
  • AC power cord
  • Rack-mount kit
Delivery Info
Our Score
Click to rate this post!
[Total: 0 Average: 0]

How to shop TAX free in Singapore

8% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 60 days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme’s conditions and eligibility criteria can claim for the GST refund. Visit the following link for GST Guide for Visitors on Tourist Refund Scheme. https://www.iras.gov.sg/taxes/goods-services-tax-(gst)/consumers/tourist-refund-scheme


All items that are available for purchase online are subjected to availability. For item that are available, a confirmation email will be sent to your registered email to show that your order had been processed and is ready for collection / to be delivered. In the event whereby the item ordered is unavailable, a notification email will be sent and refund will be initiated immediately.

Self-collect: Item will be ready for collection at our store once the confirmation email is received. Orders that are made on the Weekends or Public Holiday may take about 2-4 working days to process.

Delivery (Local, Singapore): Small items: Delivery will take approximately 3-5 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Singpost or local couriers.

Large / Bulky items: Delivery will take approximately 7-10 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Expandore.

Delivery (Overseas); Shipment will be arranged with our courier partners to be delivered to your shipping address.

If you have other inquiries for placing of order and delivery, you can refer to our FAQ here (https://www.expandore.sg/faq/) Or Contact us here (https://www.expandore.sg/contact-us/)

Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
