    Yamaha SWX2320-16MT L2 Network Switching

    SGD 3,129.24 excl. Tax

    Weight 4 kg
    SKU: SWX2320-16MT Category:
    Description
    Click to rate this post!
    [Total: 1 Average: 5]

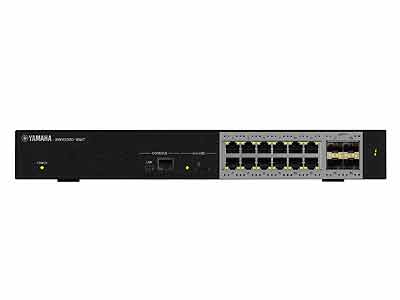

    Yamaha SWX2320-16MT L2 Network Switching Hub 16 Ports

    Yamaha SWX2320-16MT L3 is a Standard switch with 16 ports, Available ports:12 multi-gigabit ports (100M/1G/2.5G/5G/10G) and 4 SFP+ ports.

    The LAN ports of the SWX2320-16MT support five speeds (100M/1G/2.5G/5G/10Gbps) and optimize network speed as appropriate to the devices connected. As demand for speed and capacity grows because of rising numbers of wireless devices, greater audiovisual communication traffic, and increasing access to large files, faster LAN switches allow smooth handling of loads that would congest 1 Gbps networks. Networks that already use Cat5e or Cat6 cables can be accelerated to up to 5 Gbps by replacing their GbE switches with these new models. 10 Gbps networks can be created by using Cat6A cables with these models.

    IGMP and QoS settings for SWX2320-16MT switches can be automatically optimized for Dante network operation by simply clicking the “Dante optimization” button in the web-based GUI.

    Features:

    • Create high-speed, high-capacity networks with 10-gigabit and multi-gigabit speeds
    • One-click Dante Optimization
    • Network Visibility and Smart Management (Yamaha LAN Monitor)
    • In-built RADIUS server for advanced security management
    • PTPv2 TC (Transparent clock) supported
    • Yamaha LAN Monitor supported
    • Intelligent Security Management

    To view more Yamaha Products

    Specifications
    Click to rate this post!
    [Total: 1 Average: 5]
    LAN ports Standard IEEE802.3 (100BASE-TX/ 1000BASE-T/ 2.5GBASE-T/ 5GBASE-T/ 10GBASE-T)
    Number of ports 12
    Communication mode Auto negotiation
    Connector type RJ-45
    Polarity Automatic detection of straight/cross, or fixed at straight
    SFP+ ports Standard IEEE 802.3z (1000BASE-SX/ 1000BASE-LX), IEEE 802.3ae (10GBASE-SR/ 10GBASE-LR)
    Number of ports 4
    Power supply voltage, frequency AC100 – 240V, 50/60Hz
    Maximum power consumption 84 W
    Console ports Standard RS-232C, USB 2.0
    Connector type RJ-45, USB mini-B (5-pin)
    Data transmission speed 9600 (default value) / 19200/ 38400/ 57600/ 115200 bit/s
    microSD slot Standard microSD/microSDHC
    File System FAT/FAT32
    Indicators POWER, microSD, STACK ID, LAN port (LINK/ ACT, SPEED), SFP+ port (LINK/ ACT, SPEED)
    MAC address Indicated in the product label on the top panel of the unit
    Number of fans 3
    Operating environment Ambient temperature: 0-50 °C, Ambient humidity 15-80% (non-condensing)
    Storage environment Ambient temperature: -20-60 °C, Ambient humidity 10-90% (non-condensing)
    Dimensions W 330 mm
    H 44 mm
    D 250 mm
    Weight 2.7 kg
    Accessories Manual (Read this first), power cord, power cord clamp, legs, dust covers, 19-inch rack mount bracket, wall mount bracket, and screws
    In The Box
    Click to rate this post!
    [Total: 1 Average: 5]
    • Manual
    • Power cord
    • Power cord clamp
    • legs
    • Dust covers
    • 19-inch rack-mount bracket
    • Wall mount bracket and screws
