Description

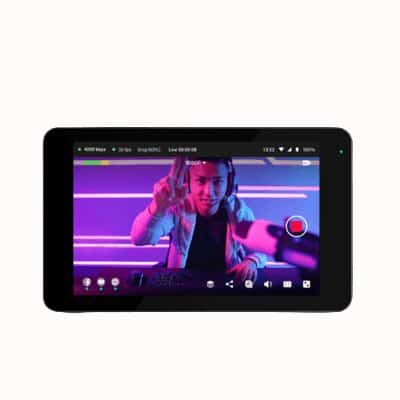

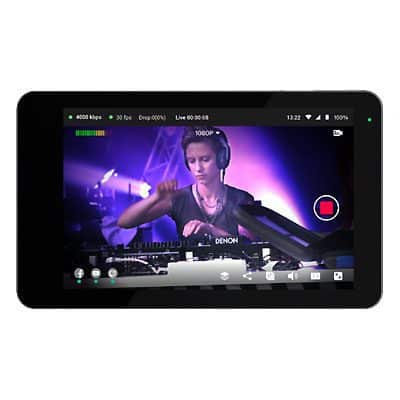

YoloBox Mini Smart, Portable, All-In-One Live Streaming Encoder & Touchscreen Control Monitor

YoloBox Mini is an encoder, monitor, recorder, and multi-destination streamer in one. It’s the industry’s first REALLY all-in-one live production system that doesn’t require anything external. With built-in restreaming service, native support integrates directly with YouTube/Facebook/Twitch, adding graphic overlays (logos, lower-thirds, picture in picture, scoreboard, rolling captions) and featuring comments to the stream, Side-By-Side, Split-View and much more. YoloBox Mini brings the professional features and processing power required for the most demanding live broadcasts.

The YoloBox Mini Switcher and Encoder is a 320g weight and 5.5-inch touchscreen display, featuring 1 HDMI input, 1 HDMI output, 1 USB-A input. The Mini supports input resolutions of 720p and 1080i/p, as well as streams of 540p, 720p, and 1080p60 at your choice, using the H.264 codec. With HDMI output, you can display your stream locally on an HDMI device. It also has a line-level audio input, and separate headphone audio out. You can record your stream directly in the .mp4 format to an optional SD card, up to 128 GB in size, using the built-in SD card slot. The line-in allows you to connect with the synthesizer and the mic-in can be connected to the microphone for recording.

(Please check out YoloBox Pro if you are looking for more HDMI inputs and video switching features)

Touchscreen Control
The YoloBox Mini provides you with a touchscreen interface for easy streaming and control.

Functions
The device works as a switcher, with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and it can record to optional SD cards.

Overlays
● You can brand your live stream by adding logos/watermarks/rolling captions
● Customized PiP options, including Interview mode, allow you to bring a unique look and feel to your stream
● Engage with your audience in real-time via feature comment overlays
● The customizable scoreboard feature displays a real-time-controlled scoreboard for professional-looking results
● Built-in lower-thirds templates can be edited or you can add your own

Internet
You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card.

Simultaneous Streaming
YoloBox Mini Switcher and Encoder will first push your feed to the YoloLIV platform, from where it automatically forwards your feed to a maximum of 3 destinations simultaneously.

Use Only as a Monitor & Recorder
Utilize the device even when you are not live streaming. Record, switch, add overlays and transitions to level up your video production efficiency.

Streaming Platforms
Major streaming platforms such as Facebook live, YouTube, and Twitch is directly integrated, you can simply log in to your social account and stream.

SD Card Input
Roll in pre-recorded videos for intro, countdowns, B-rolls, or special segments from an SD media card.

PDF
You can load a PDF as a local source to your YoloBox Mini.

Battery Life
The internal battery can power your YoloBox Mini Mini for approximately 2 hours. The YoloBox Mini Mini charges via the USB-C connection, which is used for power only.

Introduction of Yololiv Yolobox
Comparison of Software-based OBS and Yolobox
Blog
Yololiv Yolobox
Yolobox Pro
YoloLiv Instream– Vertical Video Encoder

Others Site
Yolobox
Yolobox Pro

Yolobox Mini is now available at the following countries
Philipines ( Manila ), Indonesia ( Jakarta ) , Cambodia, Laos, Myanmar (Burma), Thailand, Vietnam, Singapore, India and Malaysia

Specifications

Interfaces	HDMI IN:1 USB-A 3.0; HDMI OUT: Ethernet; LINE-IN (3.5mm): AUDIO OUT (3.5mm); Nano SIM-Card Holder, 1/4″ Screw Hole; SD Card Holder; USB-Type C (Only for charging)
Input Power	DC5V/2.5A,DC9V/2A,DC12V/1.5A
Power Consumption	< 18w
Power Supply	USB Type-C
USB Rated Output	USB-A: DC5V/1A
Battery Capacity	4700mAh
Dimensions	L x W x H: 155 x 92.6 x 20 (mm)
Net Weight	320g
Monitor Screen Size	5.5 inch LCD Resolution:720*1280
Local Video Inputs	HDMI,USB3.0
Video Over Ethernet	RTMP/RTMPS
Video Input Connectors	HDMI,USB-A,RJ-45
Video Input Aspect Ratios	4:3,16:9
Video Input Deinterlacing	Yes
Live Broadcast Video input Resolution	480p/720p/1080p(up to 60fps)
Video Encoded Format	H.264
Video processing Bitrate control	CQ,VBR,CBR
Hardware- Accelerated Video Encoding	Optional
Video Output Signal Types	FLV-RTMP,HDMI,UVC
Video Output Connectors	HDMI,USB-A
Video Output Streaming protocols	RTMP,RTMPS,MJPEG
Live Broadcast Video Output Resolution	480p/720p/1080p(up to 60fps)
Analog Audio Input Connectors	Line In, Mic In 3.5mm
Digital Audio Inputs	USB, HDMI, RTMP(From internet),Local video(From SD card)
Digital Audio Input Connectors	USB-A, HDMI
Audio Input Mute	Yes
Audio Input Format	32KHZ/44.1KHZ/48KHZ :16bit
Audio Encoded Format	(AAC) 44.1K 2Ch 16-bit
Analog Audio Output	3.5mm headphone jack
Digital Audio Outputs	HDMI audio (Embedded), USB Audio (Embedded)
Record Formats	MP4
Wi-Fi	2.4G/ 5G
4G Network	4G Network Countries & Frequency Band For Users: [NA : Variant for North America (US/Canada/Mexico) B2/B4/B5/B7/B12/B13/B14/B17/B25/B26Users: (EM: Variant for EMEA/ India / Korea / Taiwan / South Asia / Latin / America / New Zealand) Users: B1/B3/B7 NOTES: Thailand B1, B3 Please note that the certification of Yolobox Mini is in line with the mainstream open 4G band requirements of operators in this country or region. For details, please refer to the approval report of this country or region.
USB Communication Standard	USB 2.0, and USB 3.0
Ethernet Data Rate	10/100M, half/full duplex with autodetect
SIM Card Size	Nano-SIM Card
SDCard format	FAT32(Under 128G),NTFS,EXFAT
Operating Temperature	0℃-40℃
Operating Humidity	15%-85%, No Condensation
Country of Origin	Made in China

Product Comparison

Parameter	Yolobox	Yolobox Pro	Yolobox Mini
Display	7-inch LCD	8-inch LCD	5.5-inch LCD
Brightness	350 nits	400 nits	500 nits
HDMI Input	2 HDMI Inputs	3 HDMI Inputs	1 HDMI Input
USBC	Only one for Charging	One for Charging, Another full featured USBC	Only one for Charging
Total physical Inputs	3 (2 HDMI + 1 USB)	5 (3 HDMI + 1 USB + 1 USBC)	2 (1 HDMI + 1 USBA)
Audio Inputs	Audio In	Line In & Mic In	Line In & Mic In
USB Out	N/A	Recognized as a web ca. Will be added via firmware update	N/A
CPU	Qualcomm 625	Qualcomm 660	Qualcomm 660
