YoloBox Pro All in one Portable Multi-Camera Live Streaming Device
YoloBox Pro, an improved version of Yolobox, combines the functions of a video switcher, encoder/streamer, monitor, recorder, and audio mixer. Native integration interacts with YouTube, Facebook, and Twitch directly thanks to a built-in re-streaming service, adding graphic overlays and featuring comments on the stream, Side-By-Side, Split-View, and much more.
Brighter Displays
YoloLiv YoloBox Pro Live Stream Studio has a bigger and brighter display with a brightness of up to 400 nits. It supports Chroma Keyer too.
YoloLiv YoloBox Pro brings the professional features and processing power required for the most demanding live broadcasts.

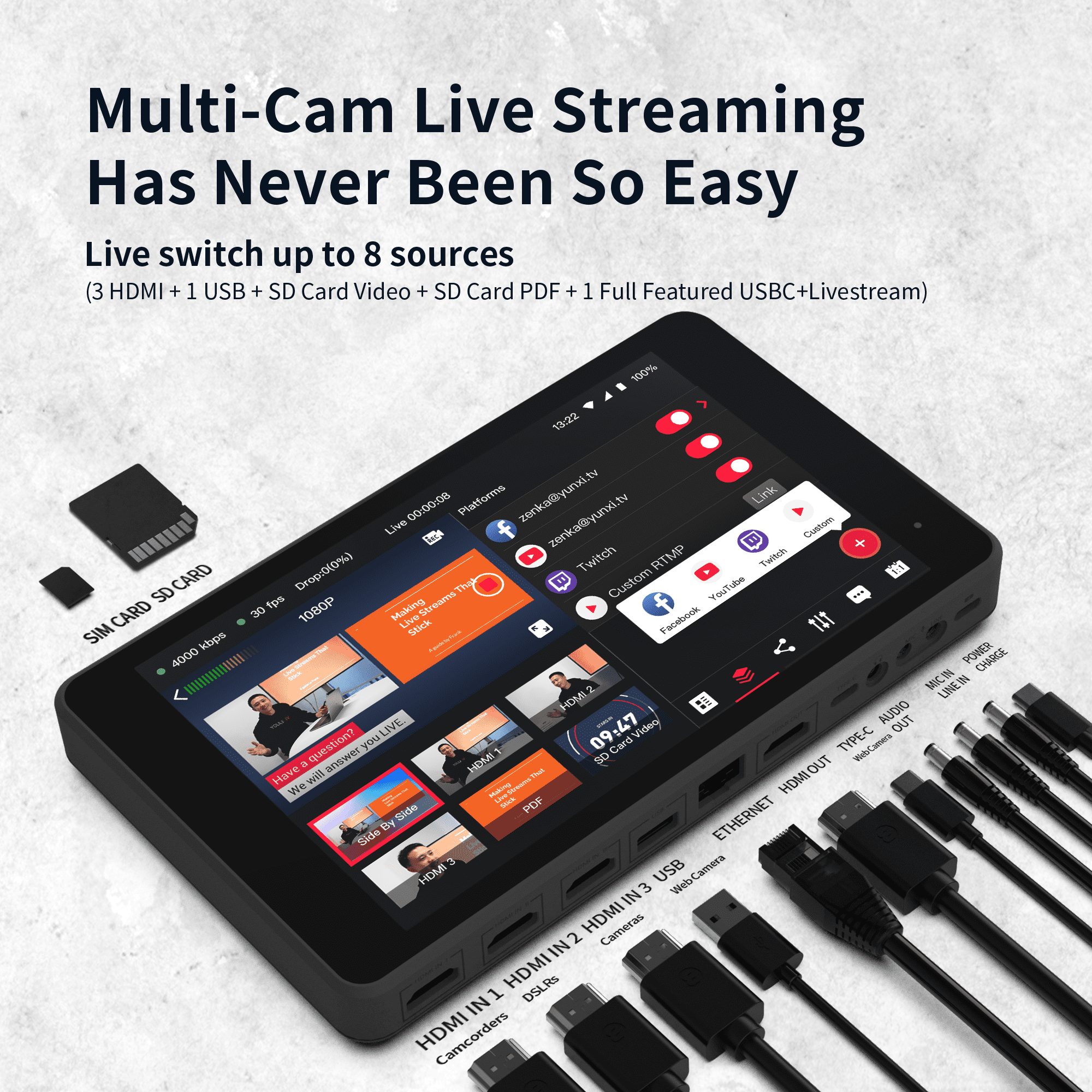

Compact and support upto 8 Sources

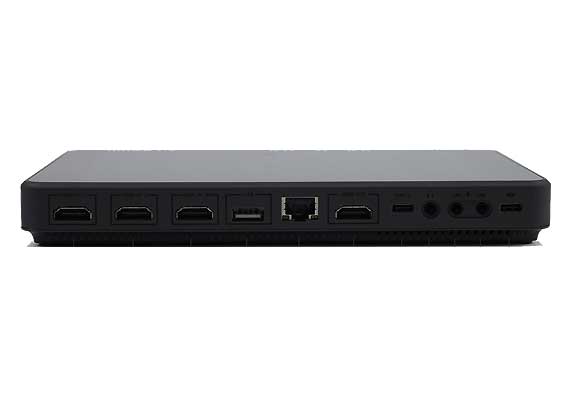

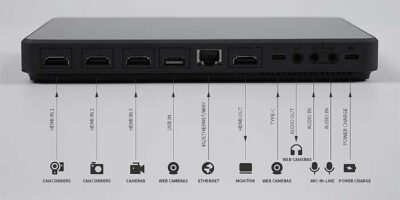

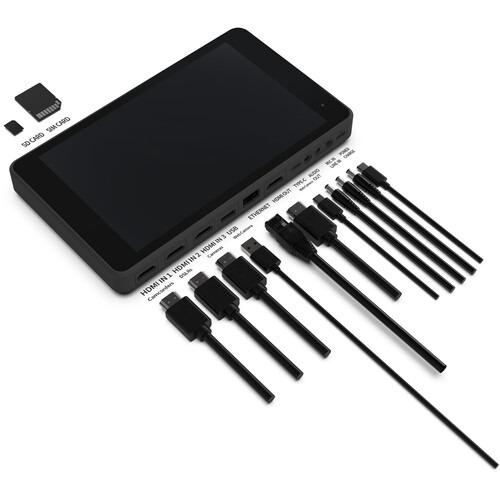

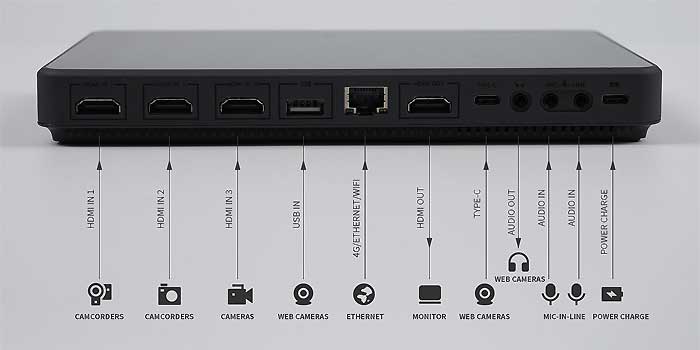

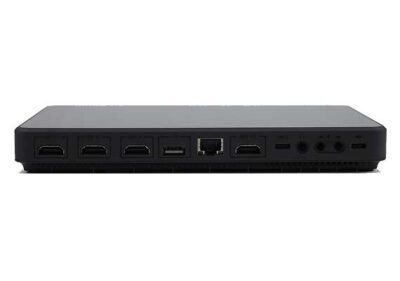

The 8-inch YoloBox Pro weighs 750g and has 3 HDMI inputs, 1 HDMI output, and 1 full-featured USBC port. It can switch between up to 8 sources, including up to four actual local cameras. The other two pre-recorded videos were either downloaded from the internet or kept on an internal memory chip.
The H.264 codec is supported by the Pro in streams of 540p, 720p, and 1080p60 at your choosing, as well as input resolutions of 720p and 1080i/p. With that you can locally show your stream on an HDMI device via HDMI output.
*USB Webcam Out coming soon in a future firmware update
Touchscreen Control
The Yololiv YoloBox Pro provides you with a large touchscreen interface for easy streaming and control.

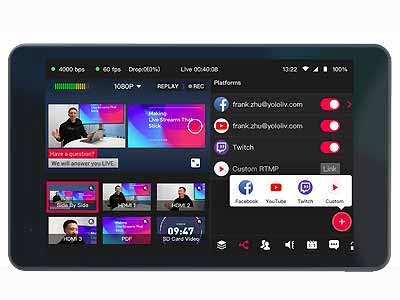

The YoloBox Pro features a wide LCD touchscreen interface for convenient streaming and control, displaying the streaming image as well as the input streams; the LCD display also displays the control interface, allowing you to switch information sources with a single touch. There is a separate headphone audio out as well as a line-level audio input. Using the integrated SD card port, you can easily record your stream in the MP4 format to an optional SD card with a maximum capacity of 128 GB. You can connect the synthesizer to the line-in and the microphone to the mic-in to record music.
Functions
With numerous picture-in-picture templates and graphic layers, the device functions as a switcher. It contains a built-in encoder that enables live streaming and has optional SD card recording capabilities.
Overlays
- You can brand your live stream by adding logos/watermarks/rolling captions
- Customized PiP options, including Interview mode, allow you to bring a unique look and feel to your stream
- Engage with your audience in real-time via feature comment overlays
- The customizable scoreboard feature displays a real-time-controlled scoreboard for professional-looking results
- Built-in lower-thirds templates can be edited or you can add your own
Simultaneous Streaming
YoloBox Pro will first push your feed to the YoloLIV platform, from where it automatically forwards your feed to a maximum of 3 destinations simultaneously.
Streaming Platforms
Major streaming platforms such as Facebook Live, YouTube, and Twitch are directly integrated, you can simply log in to your social account and stream.
Internet
You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card. SD Card Input Roll in pre-recorded videos for the intro, countdowns, B-rolls, or special segments from an SD media card. PDF You can load a PDF as a local source to your YoloBox Pro
Battery Life
The internal battery can power your YoloBox Pro for approximately 3 hours. The YoloBox Pro charges via the USB connection, which is used for power only.
Note: Our Yololiv Yolobox Pro device is registered and approved by Singapore IMDA for use in Singapore .
Besides being an Encoder, recorder, and Live Video switcher, Yolobox Pro can now be doubled as Video Monitor
The core Feature of Yolobox pro
Other similar Products to this Yolobox Live stream Studio Atem Mini Extreme Live Production
How to Key out the green screens for YOLOBOX Pro
Incorporating Multi-WAN and QUIC Technology
Other Reading Material
Yolobox Introduction
Read our Yolobox Blog
Comparing OBS software with Yolobox
Comparison between OBS and Yolobox Pro
VMix Vs Yololbox Pro Which should I choose
Vertical Video and its Encoder
Vertical Video PTZ Cameras Arocam 2
Vertical Video PTZ Cameras Yoliv V100
OtherSite
Yolobox Pro is now available in Philipines ( Manila ), Indonesia ( Jakarta ), Cambodia, Laos, Myanmar (Burma), Thailand, Vietnam, Singapore, India, and Malaysia
