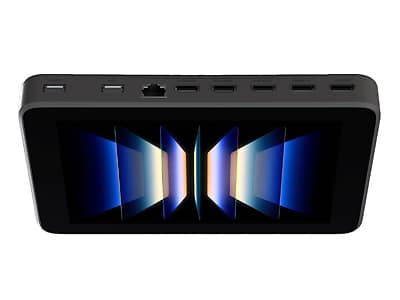

YoloLiv YoloBox ULTRA All-in-One Smart Live Streaming Encoder and Monitor. Buy now to get 1 x Free HDMI capture card
SGD 2,073.40 excl. Tax
Product Highlights:
- 4 X 4K HDMI input
- Bigger and Brighter Screen
- Network Bonding upto 5 connection
- 4K Streaming
- Support both Vertical and Horizontal Video
1x Free AV-LINK V2 Video Capture Card with purchase of YoloBox ULTRA
The capture card converts the USB input into HDMI input, thus becoming 1x additional HDMI input for your YoloBox ULTRA
| Weight | 4 kg |
|---|---|
| Choose Product Variant |
CINE 8 ,CINE 8 + Storm 3000DV TX |
Description
Click to rate this post!
[Total: 12 Average: 5]
YoloBox Ultra with NDI: All-in-One Live Streaming Solution
The YoloBox Ultra offers advanced live streaming and monitoring capabilities in a single compact device. Designed for content creators and professionals, this all-in-one system combines a live streaming encoder and monitor with powerful features that enhance your streaming experience.
Compatible with multiple platforms like YouTube, Facebook, Twitch, and more, it provides everything you need to deliver high-quality broadcasts effortlessly.
Key Features of the YoloBox Ultra
4 HDMI Inputs
The YoloBox Ultra includes four HDMI inputs, allowing seamless integration of multiple video sources. Whether you?re using cameras, laptops, or other devices, it supports multi-camera setups for more dynamic live streams. This flexibility is particularly useful for large events, professional productions, and multi-angle shoots.
ISO Recording
ISO Recording enables high-quality recording of each video input. This feature allows users to record individual camera feeds, providing valuable material for post-production editing. It ensures that every important detail is preserved in crisp, clear quality.
Extended Battery Life
The built-in 20,000 mAh battery supports up to six hours of continuous streaming. This extended battery life is ideal for events, live productions, and mobile shoots, ensuring uninterrupted live streaming without the need for frequent charging or power banks.
4K Streaming Capability
The YoloBox Ultra delivers 4K streaming, producing sharp and highly detailed video content. This feature is critical for professional-grade live broadcasts, ensuring that your content stands out in both visual clarity and resolution. It supports 4K/30fps for high-definition live streaming on various platforms.
Network Bonding Technology
The device incorporates network bonding, allowing you to combine up to five network connections for a stable and reliable stream. This includes support for three cellular networks, Wi-Fi, and Ethernet, ensuring continuous live streaming even in challenging environments or low-bandwidth locations.
Advanced Display and CPU Performance
Bigger and Brighter Display
The YoloBox Ultra?s display is larger and brighter compared to previous models, allowing for easier monitoring in both indoor and outdoor settings. The enhanced brightness ensures that video feeds are clear, even in direct sunlight, making it ideal for outdoor events.
More Powerful CPU
Equipped with an upgraded CPU, the YoloBox Ultra offers a 2.5x increase in processing power, a 4x boost in GPU performance, and an increase in RAM and ROM capacity. This ensures smooth operation even when handling high-quality video streams and multiple inputs.
Vertical and Horizontal Video Support
The device supports both vertical (9:16) and horizontal (16:9) video, offering versatility for different content types. Whether you?re streaming a live event in landscape mode or creating content for mobile platforms that favor vertical videos, the YoloBox Ultra can handle both formats efficiently.
Versatile Input and Output Options
The YoloBox Ultra offers a variety of input and output ports, enabling users to connect multiple devices simultaneously. It includes HDMI, USB, and audio inputs, making it a versatile tool for content creators with diverse production needs. Additionally, it supports audio mixing from different sources.
Cellular Bonding for Maximum Stability
With support for multiple network connections, including up to three cellular networks, Wi-Fi, and Ethernet, the YoloBox Ultra provides reliable, uninterrupted live streams. This ensures smooth content delivery, even in areas with fluctuating network availability.
Applications of YoloBox Ultra
Multi-Camera Operations<
The YoloBox Ultra?s NDI functionality makes it ideal for multi-camera setups. It enables network-based connections, eliminating the need for extensive cabling. This allows for remote camera placements, providing greater flexibility in camera positioning without compromising signal quality. By leveraging NDI, users can reduce setup time and costs associated with traditional wireless video transmission.
Live Event Production
With its four HDMI inputs and 4K streaming capability, the YoloBox Ultra is perfect for live events such as concerts, sports competitions, conferences, and festivals. The device?s ability to switch between multiple video sources ensures smooth transitions and high-quality live broadcasts.
Professional Broadcasting
For professional broadcasters and studios, the YoloBox Ultra offers advanced streaming and monitoring features. Its 4K support and ability to stream across multiple platforms make it suitable for news reporting, studio productions, and other high-end broadcasting needs.
Content Creation and Vlogging
Content creators, vloggers, and YouTubers benefit from the YoloBox Ultra?s ability to handle multiple 4K video inputs, producing visually engaging content. The device simplifies the process of monitoring and switching between camera angles, while its portability ensures ease of use on location.
Educational Applications
Educational institutions can use the YoloBox Ultra to deliver high-quality live streams of lectures, seminars, and workshops. Its multi-input capability allows for a diverse range of content to be displayed, enhancing the overall learning experience.
Wedding and Special Event Streaming
The YoloBox Ultra?s multi-camera support and 4K streaming capabilities make it ideal for weddings and other special events. With its ability to capture multiple angles, users can ensure that every important moment is recorded in high quality for live or post-event streaming.
Corporate and Business Events
For corporate meetings, product launches, and conferences, the YoloBox Ultra offers professional-level live streaming capabilities. Its support for multiple inputs and high-definition video makes it a valuable tool for business professionals aiming to reach a broader audience.
Live Music and Entertainment Performances
Musicians, DJs, and other performers can benefit from the YoloBox Ultra?s 4K streaming capabilities and support for multiple video inputs. This allows for dynamic, visually appealing live performances that can be broadcasted to audiences worldwide.
Religious Services and Community Events
Religious institutions can use the YoloBox Ultra to live stream services, sermons, and community events. The device?s network bonding technology ensures stable connections, allowing for reliable broadcasts, even in remote locations or during high-traffic periods.
To view More products in YoloLiv
Others Reading Material:
- YoloBox Ultra Breakdown: Pioneering the Era of All-in-One Streaming
- Yolobox Introduction
- Yolobox Pro
- Yolobox Mini
- Comparing OBS software with Yolobox
- Read our Yolobox Blog
- Main core features of Yolobox
- VMix Vs Yololbox Pro Which should I choose
- Vertical Video Encoder
- How can Yolobox Pro, Ultra and Instream enhance your Live on-line streaming experience and stand Out among your competition.
Others Site:
SS-CC-5-09-24
IM-AV-16Dec24
Specifications
Click to rate this post!
[Total: 12 Average: 5]
Ports:Â
- HDMI IN 1: Video input
- HDMI IN 2: Video input
- HDMI IN 3: Video input
- HDMI IN 4: Video input
- HDMI OUT: Video out to monitor or computer for Zoom/Skype meetings
- ETHERNET PORT: Connect to Internet by Ethernet cable
- USB Type-A 3.0: Video input( Support: webcam; portable storage device ; wireless usb dongle.)
- USB Type-A 3.0: Video input( Support: webcam; portable storage device ; wireless usb dongle.)
- USB Type-C: Only for charging
- LINE IN(3.5mm): Stereo, connect to electric guitar or synthesizer
- MIC IN(3.5mm): Mono, connect to microphone for recording
- AUDIO OUT(3.5mm): Connect with monitor headphones
· EPA Tier 3
· EPA Tier 4
· EPA Regulations
· China National Standards - USB Type-C: A fully functional interface supports input
- 1/4” Screw HoleScrew Hole: Mount Ultra with camera
- Nano-SIM Card Holder: Insert SIM card to connect to Internet
- SD Card Holder: Used for recording and loading graphics
- Power Button: Turn on and turn off
General:
- Input Power: DC5V/9V/, 12V/15V
- Power Consumption: 45W
- Power Supply: USB Type-C
- USB Rated Output: USB-A:5V/1A
- Battery Capacity: 6800mAh
- Monitor Screen Size: 8inch LCD Resolution: 1200*1920;
- Brightness: 650nits;
- Contrast ratio(1500:1), Viewing Angle (full viewing Angle), NTSC 80%
- Local Video Inputs: HDMI,USB-A
- Video Over Ethernet: RTMP/RTMPS/SRT
- Video Input Connectors: HDMI,USB-A,RJ-45,USB Type-C
- Video Input Aspect Ratios: 16:9; 4:3; 1:1
- Video Input Deinterlacing: No
- Live Broadcast Video input Resolution: 480p/720p/1080p(up to 60fps)/4Kp30
- Video Encoded Format: H.264 H.265
- Video processing Bitrate control: CQ, VBR, CBR
- Hardware-Accelerated Video Encoding: Optional
- Video Output Signal Types: FLV-RTMP,HDMI,UVC
- Video Output Connectors: HDMI OUT, USB-C
- Video Output Streaming protocols: RTMP, RTMPS, MJPEG, SRT
- Live Broadcast Video Output Resolution: 480p/720p/1080p(up to 60fps)/4Kp30
- Analog Audio Input Connectors: Line In, Mic In, 3.5mm
- Digital Audio Inputs: USB, HDMI, RTMP(From internet), Local video(From SD card)
- Digital Audio Input Connectors: USB-A, HDMI, USB-C
- Audio Input Mute: Yes
- Audio Input Format: 32KHZ/44.1KHZ/48KHZ :16bit
- Audio Encoded Format: (AAC)44.1K/48KHZ 2Ch 16bit
- Analog Audio Output: 3.5mm headphone jack
- Digital Audio Outputs: HDMI audio (Embedded), USB Audio (Embedded)
- Record Formats: MP4
- Wi-Fi: 2.4G/ 5G（Support WiFi6）
- 4G Network: 4G Network Countries & Frequency Band For
Users: [Variant for North America（US/Canada/Mexico)]
B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
Notes: Mexico B4 For Non-US/Canada/Mexico
Users: (EU: Variant for EMEA/India/Korea/Taiwan/South Asia/Latin/America/Australia/New Zealand)
Users: B1/B3/B7/(B8) Notes: Thailand B1/B3
Please note that the certification of Yolobox Mini is in line with the mainstream open 4G band requirements of operators in this country or region. For details, please refer to the approval report of this country or region. - USB Communication Standard: USB 2.0 and USB 3.0
- Ethernet Data Rate: 10/100/1000M, half/full duplex with autodetect
- SIM Card Size: Nano-SIM Card
- SDCard format: FAT32(Under 128G), NTFS, EX-FAT
- Operating Temperature: 0℃-40℃
- Operating Humidity: 15%-85%, No Condensation
Dimensions & Weight
- Height: 27.1 mm
- Width: 140 mm
- Length: 219 mm
- Weight: ≈ 981 g
