Name: ZOOM F6 6-channel/14-track Multi-Track Field Recorder/Mixer
SKU: F6
Price: 612.89 USD
Availability: InStock

Description
Features
Specifications
In the Box
Delivery Info
Reviews (0)

Description

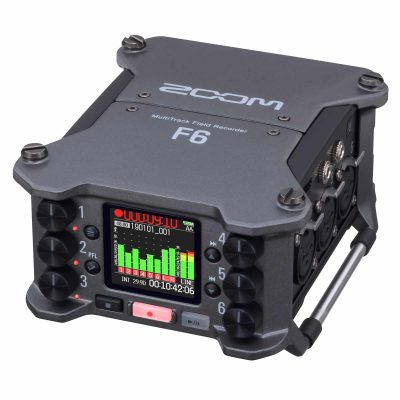

ZOOM F6 Multi-Track Field Recorder/Mixer

Zoom F6 is the first professional field recorder to feature both 32-bit float recording and dual AD converters, providing an unprecedented amount of dynamic range. With 6 inputs, Zoom’s solid time code, multiple power options and wireless control, the F6 is poised to be your new secret weapon.

32-Bit Float Recording

In the field, fluctuating dynamics can prove challenging. Loud sounds can cause clipping and quiet sounds can get lost in the noise. The Zoom F6 uses 32-bit float recording with dual A/D converters to capture both explosive and subtle sounds at full audio quality – without ever adjusting gain!

Mic Preamps

The F6 is equipped with six professional-grade preamps. Featuring a super-low noise floor (-127 dBu EIN), high gain (up to 75 dB), and selectable mic/line levels for each input, the F6 is built for location sound.

Precision Time Code

Keep your tracks perfectly synced even when you power down for lunch. On or off, the F6’s Temperature Compensated Crystal Oscillator (TCXO) generates time code at 0.2 ppm accuracy.

Zoom AutoMix™

Zoom AutoMix™ lets you keep your eyes on the action by automatically adjusting the levels of your mix to reduce ambient sound.

Files and Formats

Recording Formats

The Zoom F6 can record in 32-bit float up to 96 kHz, 24-bit up to 192 kHz or both simultaneously, providing 14 total tracks of BWF-compatible WAV files.

Metadata

Cataloging files with the F6 is quick and easy. Enter track name, scene names, notes, and more in both BWF and iXML.

iOS Wireless Control

The F6’s F Control APP lets you monitor signals, adjust levels, trigger transport controls, enter metadata and more from your iPhone or iPad via Bluetooth.*

*Optional BTA-1 required

Features

6-channel/14-track field audio recorder/mixer
6 discrete inputs with locking Neutrik XLR connectors
High quality mic preamps with up to 75 dB gain and less than -127 dBu EIN
Switchable +4dB inputs with mic/line options
Advanced Look-Ahead Hybrid Limiters
Zoom AutoMix™ software
Accurate Time Code (0.2 ppm when on and when powered off) I/O on 3.5mm stereo mini; dropframe/non-drop formats with Jam Sync
Three different power supply options: 4x AA batteries, Sony L-Series batteries, or Zoom AD-17 12V AC Adapter (L-Series batteries not included)
3.5mm stereo mini unbalanced output jack
Dedicated headphone output (100 mW) with volume control SD/SDHC/SDXC card slot, up to 512 GB
Use as an 6-in/4-out USB audio interface (up to 96kHz)
Use as an audio interface and record to SD card simultaneously (up to 48kHz)
Free Zoom F Control App for iOS allows wireless remote control, file renaming, and metadata entry

Specifications

INPUTS
Recording Media:	SD cards, SDHC cards, SDXC cards (that conform to standards)
Inputs 1–6:	Connectors XLR jack (pin 2 hot)
Input (mic):	Input gain +12 dB – +75 dB Input impedance 3 kΩ or more Maximum input level +4 dBu
Input (line):	Input gain −8 dB – +55 dB Input impedance 5 kΩ or more Maximum input level +24 dBu
Phantom power:	+24/+48V 10mA maximum for each channel
Equivalent input noise:	−127 dBu or less (A-weighted, +75 dB input gain, 150 Ω input)
OUTPUTS
Line output:	Connectors 3.5 mm stereo mini unbalanced output Output impedance 100 Ω or less Reference output level –10 dBV, 1 kHz, 10 kΩ load Maximum output level +10 dBV, 1 kHz, 10 kΩ load D/A dynamic range 95 dB typ (−60dBFS input, A-weighted)
Headphone output:	Connector 3.5 mm stereo mini unbalanced output Output impedance 15 Ω or less Maximum output level 100 mW + 100 mW (32Ω load) D/A dynamic range 108 dB typ (−60dBFS input, A-weighted)
RECORDING FORMATS
Supported formats:	44.1/47.952/48/48.048/88.2/96/192 kHz, 16/24-bit/32-bit float, mono/stereo/2-8ch poly, BWF/iXML
Maximum simultaneous recording tracks:	14 (6 inputs x 2 (Linear and Floating) + LR mix) 6 (6 inputs (Linear or Floating) at Float(32bit) Mode, 192 kHz)
Supported formats:	128/192/320 kbps, 44.1/48 kHz, ID3v1 tags
Maximum simultaneous recording tracks:	2
RECORDING TIME
Using a 32 GB card:	30:46:00 (48 kHz/24-bit stereo WAV) 7:41:00 (192 kHz/24-bit stereo WAV)
USB
Mass storage operation:	Class USB 2.0 High Speed
Multitrack audio interface operation (driver required for Windows, no driver required for MacOS):	Class USB 2.0 High Speed Specifications Sampling rate 44.1/48/88.2/96 kHz Bit Rate 16/24-bit Channels 6 in/4 out
Stereo mix audio interface operation (no driver required):	Class USB 2.0 Full Speed Specifications Sampling rate 44.1/48 kHz Bit Rate 16-bit Channels 2 in/2 out Note: iOS device audio interface operation supported (stereo mode only)
AIF with Rec operation (driver required for Windows, no driver required for MacOS):	Class USB 2.0 High Speed Specifications Sampling rate 44.1/48 kHz Bit Rate 16/24-bit Channels 8 in/4 out
Power consumption:	10 W
External dimensions:	100 mm (W) x 119.8 mm (D) x 62.9 mm (H)
Weight:	520 g

In the Box

What’s included with the F6

F6 Field Recorder
Camera mount adapter
AA batteries (x4)
Cubase LE and WaveLab LE download codes
Quick Start Guide

Optional F6 Accessories

Zoom AD-17 12V AC Adapter
BTA-1 Bluetooth Adapter
Bag
